Hirschmann BRS20-0400 Series User Manual

Installation BRS20/30/40/50
Release 02 11/2018
53
5.2 Removing the device

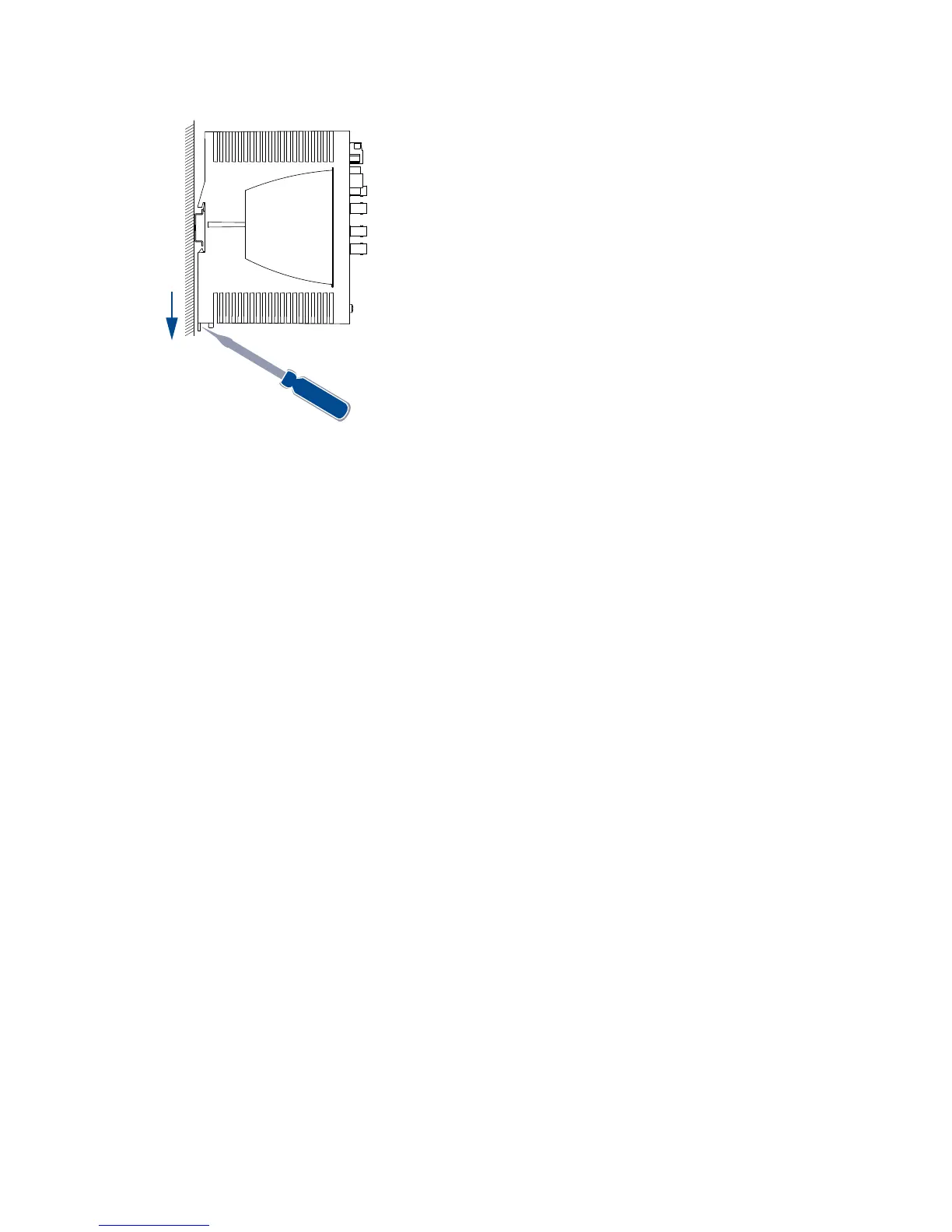

Figure 19: Removal from the DIN rail
Proceed as follows:
 Disconnect the data cables.
 Disable the supply voltage.
 Disconnect the terminal blocks.
 Disconnect the grounding.
 Insert a screwdriver horizontally below the casing into the locking gate.
 Pull the rail lock slide down using a screwdriver and fold the device up.
