42
Installation BRS20/30/40/50
Release
02
11/2018
2.3 Installing an SFP transceiver (optional)
Prerequisites:
Exclusively use Hirschmann SFP transceivers.
See “Accessories” on page 74.

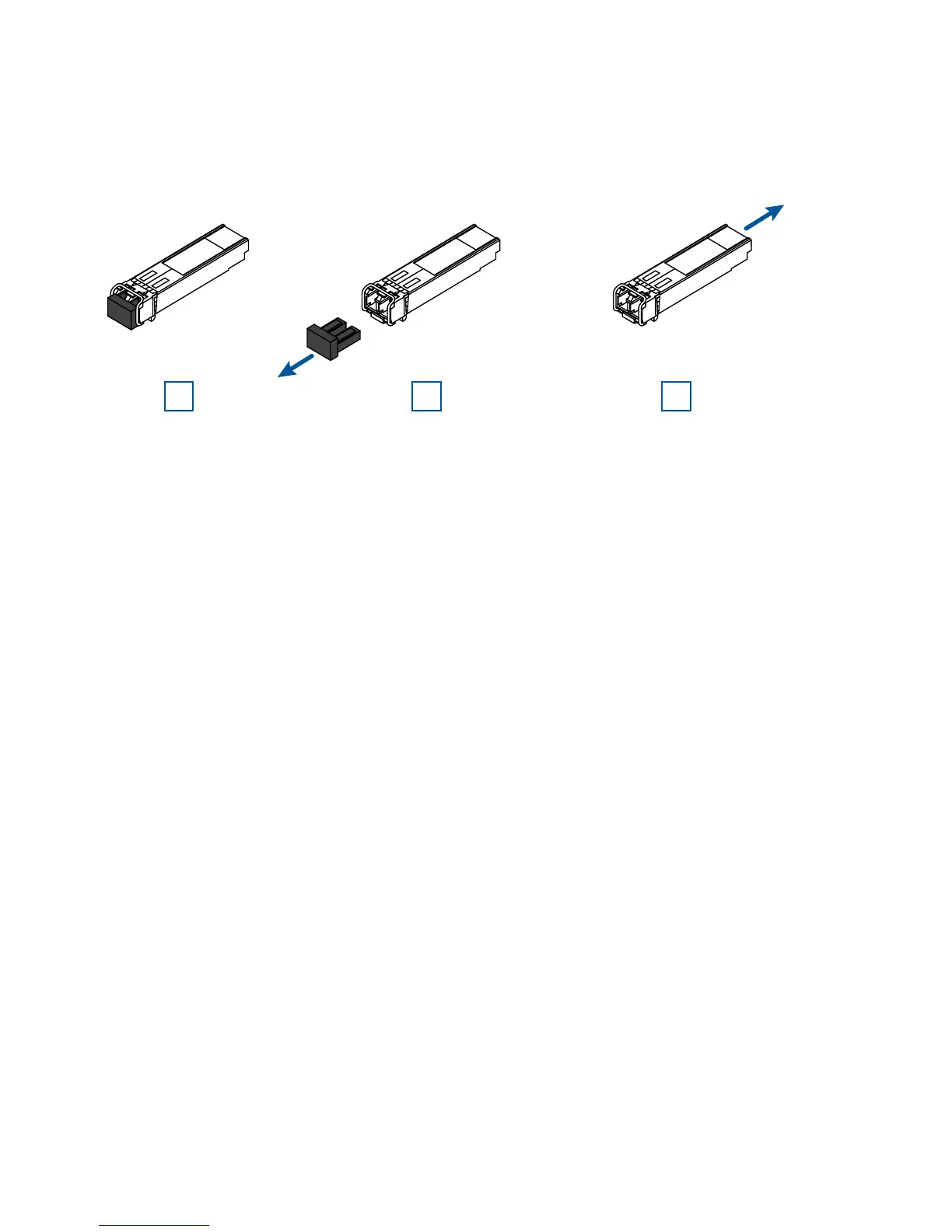

Figure 11: Installing SFP transceivers: Installation sequence
Proceed as follows:
Take the SFP transceiver out of the transport packaging (1).
Remove the protection cap from the SFP transceiver (2).
Push the SFP transceiver with the lock closed into the slot until it latches
in (3).
2.4 Connecting the terminal blocks
2.4.1 Power supply
Note: The supply voltage is connected to the device casing through
protective elements exclusively.
