Hirschmann BRS20-0400 Series User Manual

22
Installation BRS20/30/40/50
Release 02 11/2018

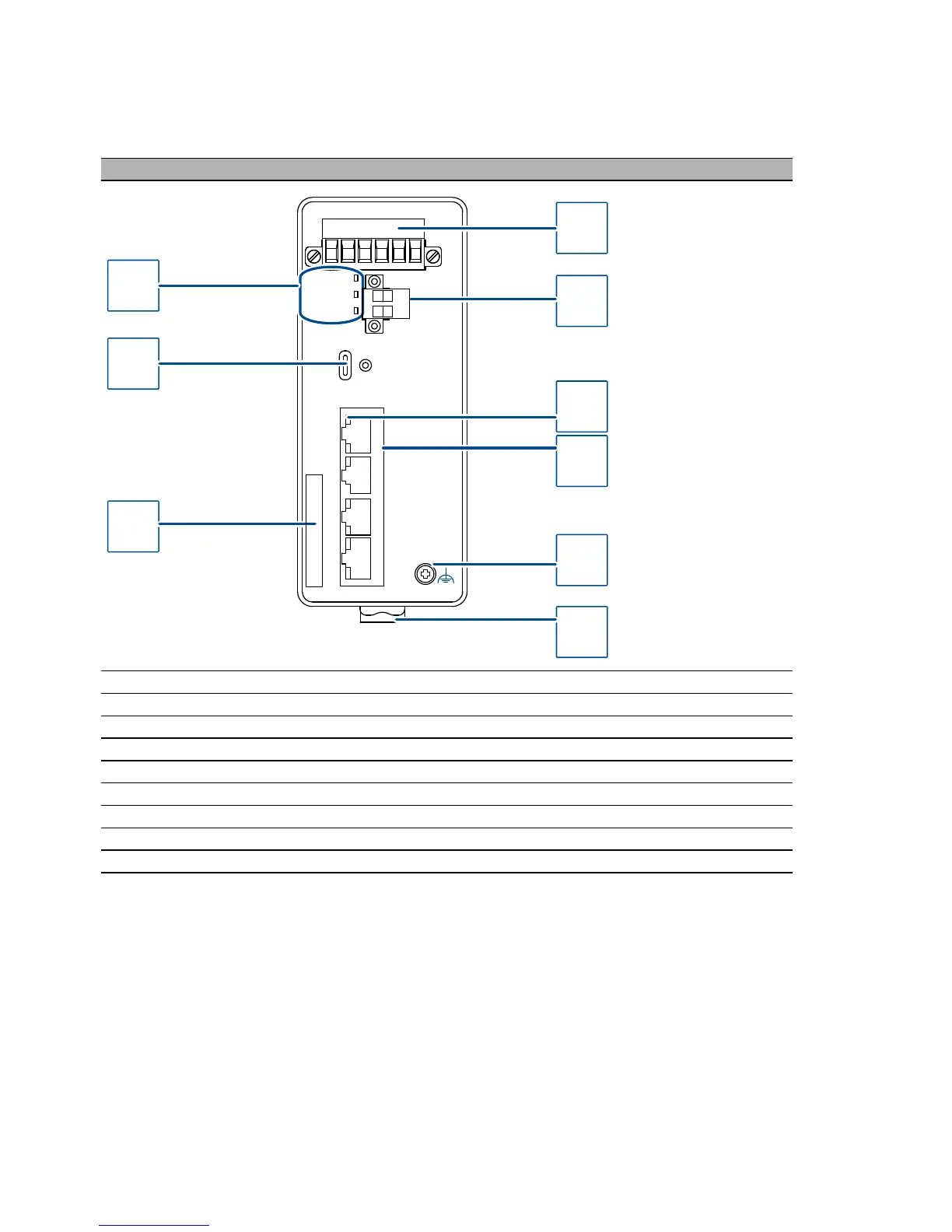

1.3 Device views
1.3.1 Front view
BRS20-04009999-xxC...
1 6-pin terminal block with screw lock for redundant power supply and signal contact
2 2-pin terminal block with screw lock for the digital input
3 LED display elements for port status
4 4 × RJ45 socket for 10/100 Mbit/s Twisted pair connections
5 Grounding screw
6 Rail lock slide for DIN rail mounting
7 Label area for IP address of device
8 USB-C interface
9 LED display elements for device status
1
2
5
6
8
9
7
1
2
3
4
IP-ADRESS
3
4
Power
Status
ACA
Input
USB
