Hirschmann BRS20-0400 Series User Manual

Installation BRS20/30/40/50
Release 02 11/2018
45
 Fasten the wires connected by tightening the terminal screws.
 Mount the terminal block on the device using screws.
2.4.2 Signal contact (optional)

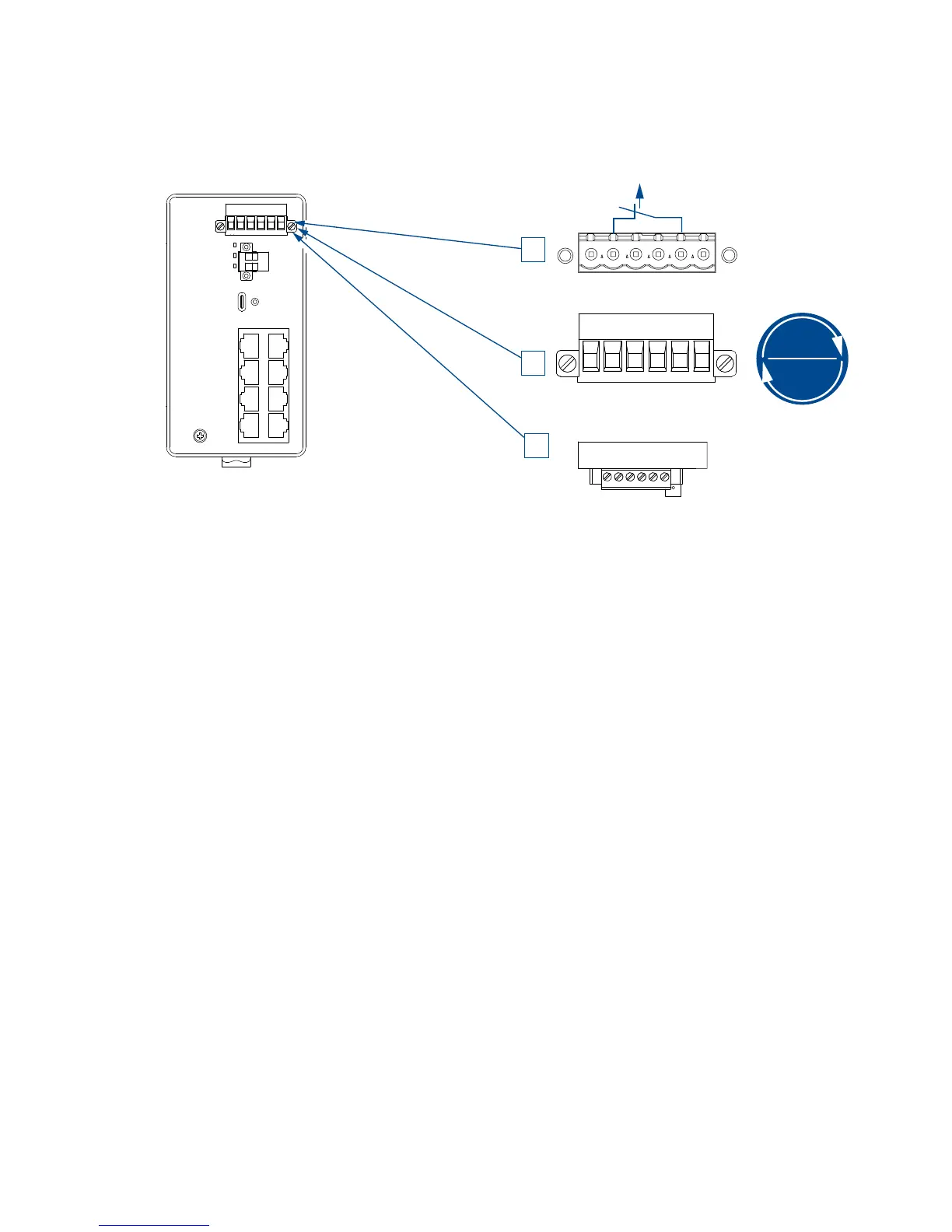

Figure 14: (1) Connection on the device, (2) terminal block mounted on the device
(front view), tightening torque, (3) terminal block mounted on the device
(view from above).
Proceed as follows:
 Connect the signal contact lines with the terminal block connections.
 Fasten the wires connected by tightening the terminal screws.
 Mount the terminal block on the device using screws.
4.4 lb-in
0.5 Nm
RELAY
1
2
3
