44
Installation BRS20/30/40/50
Release 02 11/2018
 Supply voltage with characteristic value F

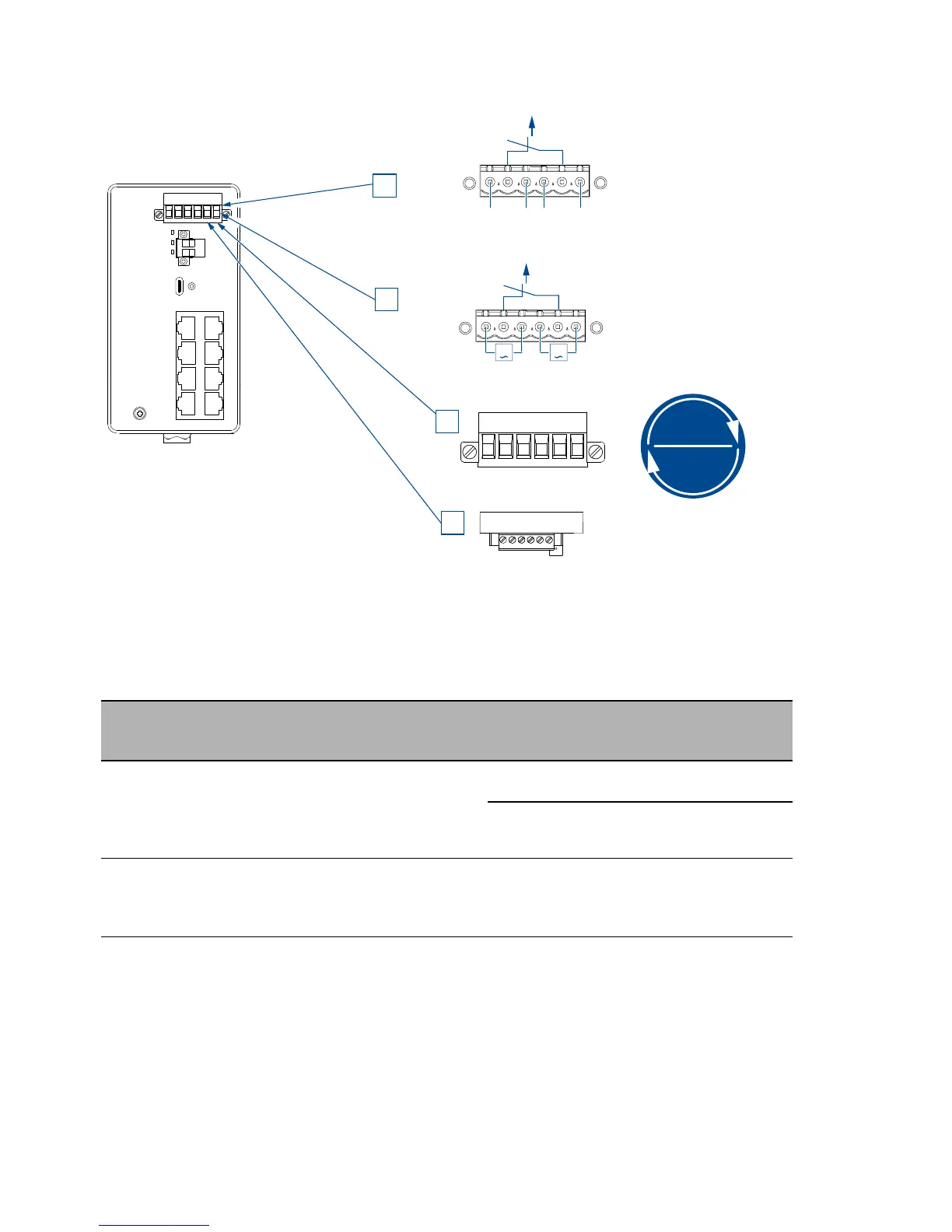

Figure 13: (1) DC voltage connection on the device, (2) AC voltage connection on
the device, (3) terminal block mounted on the device (front view),
tightening torque, (4) terminal block mounted on the device (view from
above).
For the supply voltage to be connected, perform the following steps:
 Remove the terminal connector from the device.
 Connect the wires according to the pin assignment on the device with
the clamps.
Type of the voltages
that can be
connected
Specification of the supply
voltage
Pin assignment
DC voltage Rated voltage range DC:
24 V DC ... 48 V DC
Voltage range incl. maximum
tolerances
18 V DC ... 60 V DC
+24 V Plus terminal of the supply
voltage
0 V Minus terminal of the supply
voltage
AC voltage Rated voltage AC:
24 V AC
Voltage range AC incl. maximum tolerances:
18 V AC ... 30 V AC, 50 Hz ... 60 Hz
Table 7: Supply voltage with characteristic value F: type and specification of the
supply voltage, pin assignment
4.4 lb-in
0.5 Nm
1
2
3
4
24 V AC 24 V AC
+24 V(P1) +24 V(P2)
0 V 0 V
G G
RELAY
+24 V(P1) +24 V(P2)
0 V 0 V
++
-
-
24 V DC ... 48 V DC
24 V DC ... 48 V DC
RELAY
