Hirschmann BRS20-0400 Series User Manual

46
Installation BRS20/30/40/50
Release 02 11/2018
2.4.3 Digital input (optional)

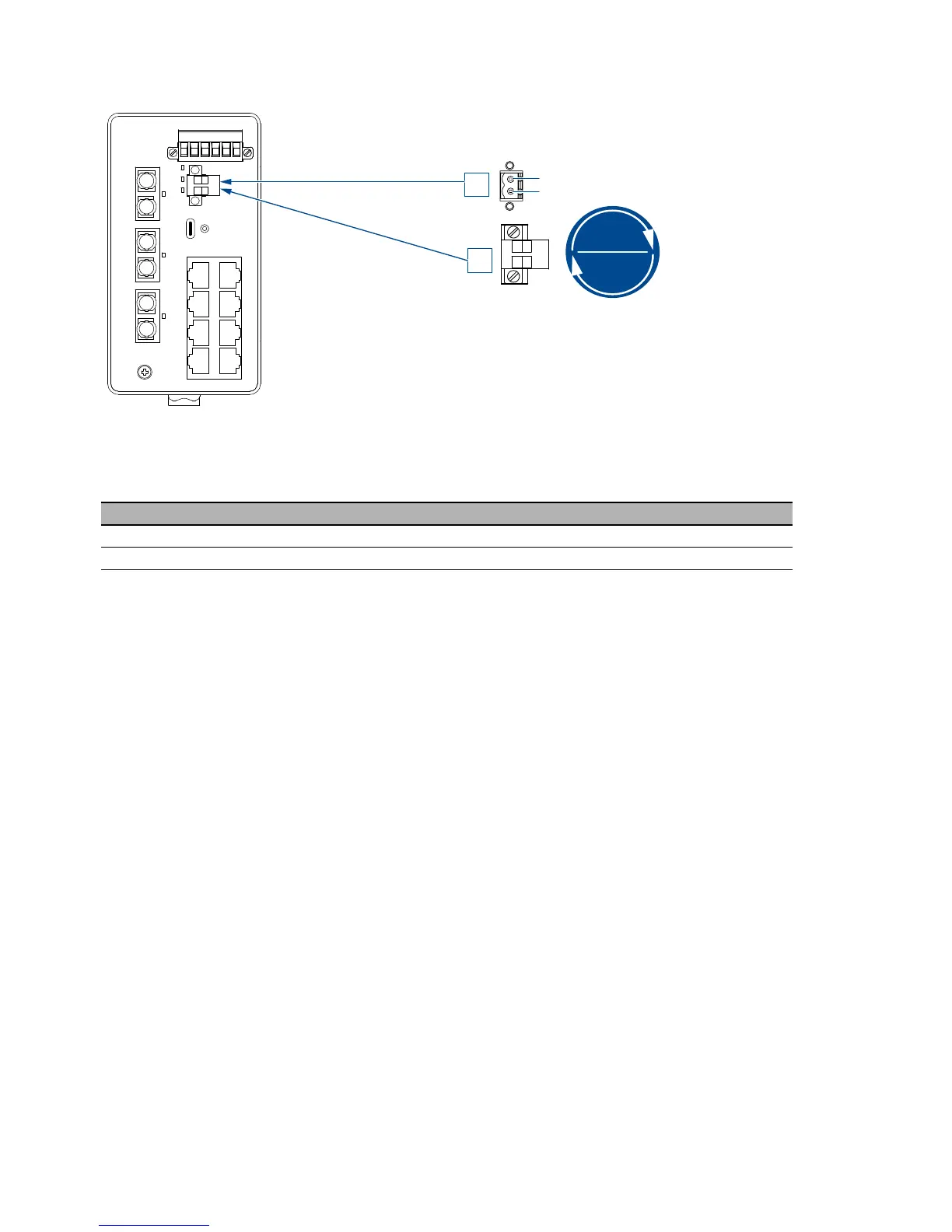

Figure 15: (1) Connection on the device, (2) terminal block mounted on the device
(front view), tightening torque.
Proceed as follows:
 Remove the terminal connector from the device.
 Connect the wires according to the pin assignment on the device with the
clamps.
 Fasten the wires connected by tightening the terminal screws.
 Mount the terminal block on the device using screws.
Pin Signal, terminal Function
1 DI (+) Signal input
2DI (−) Reference potential
Table 8: Digital input: pin assignment
Input
+
-
4.4 lb-in
0.5 Nm
1
2
