Installation BRS20/30/40/50
Release
02
11/2018
43
Supply voltage with characteristic value T

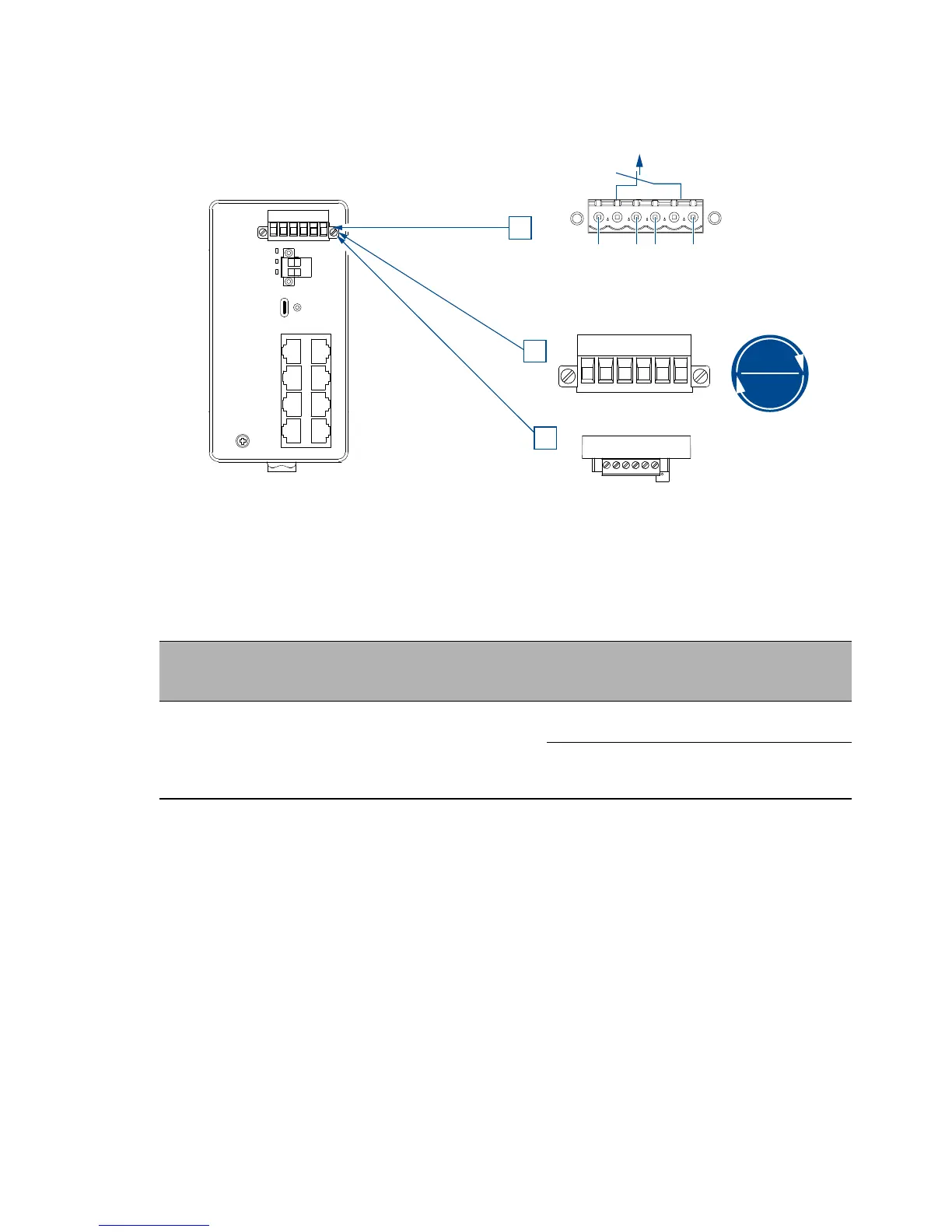

Figure 12: (1) DC voltage connection on the device, (2) terminal block mounted on
the device (front view), tightening torque, (3) terminal block mounted on
the device (view from above).
For the supply voltage to be connected, perform the following steps:
Remove the terminal connector from the device.
Connect the wires according to the pin assignment on the device with
the clamps.
Fasten the wires connected by tightening the terminal screws.
Mount the terminal block on the device using screws.
Type of the voltages
that can be
connected
Specification of the supply
voltage
Pin assignment
DC voltage Rated voltage range DC:
12 V DC ... 24 V DC
Voltage range DC incl.
maximum tolerances:
9.6 V DC ... 32 V DC
+24 V Plus terminal of the supply
voltage
0 V Minus terminal of the supply
voltage
Table 6: Supply voltage with characteristic value T: type and specification of the
supply voltage, pin assignment
