Installation and wiring
3 Installation and wiring
This chapter contains instructions for mounting and installation of the console.
For the electrical wiring of the system and the console, please refer to the relevant connection and
wiring diagram, which is not part of this manual.
3.1 Installation
The console is intended for vertical surface mounting or recessed mounting. Depending on
installation type, corresponding installation accessories are required which may be supplied with
the device depending on the version type.
3.1.1 Surface mounting

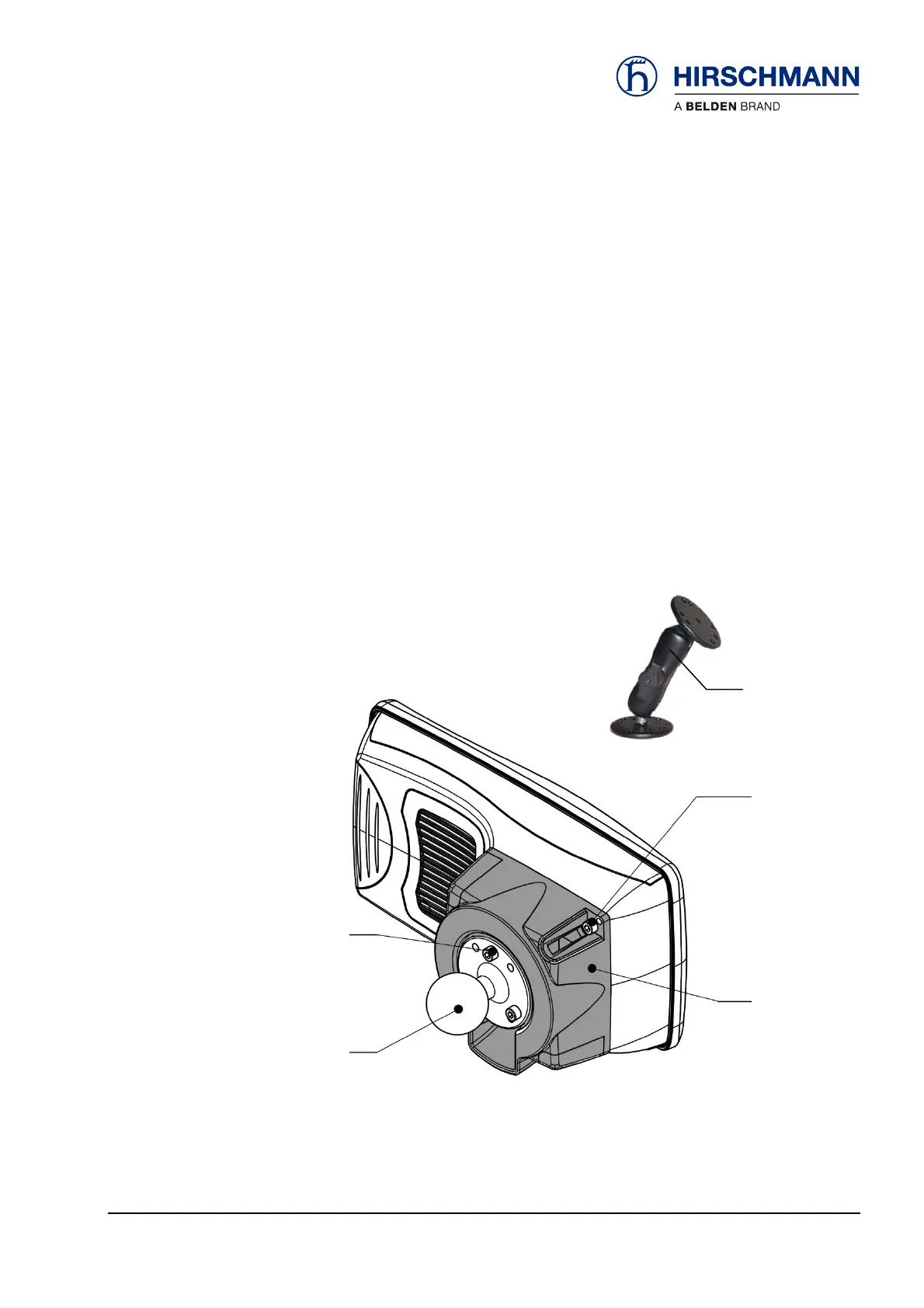

For surface mounting you will require the optionally available installation adapter and the RAM
Mount articulated mounting.
RAM Mount
(Art. no. 320795)
Installation
adapter
(Art. no. 608464)
4 pcs.
screw M5x12
(Art. no. 300990)
4 pcs.
washer 5.3
(Art. no. 320795)
3 pcs.
screw M5x12
(Art. no. 300990)
3 pcs.
washer 5.3
(Art. no. 320795)
ball head 38mm (1.5“)
(part of RAM Mount)
© 2012 Hirschmann Automation and Control GmbH · Mobile Machine Control Solutions · www.hirschmann.com 10/59
50-700-19-2001_422175_en (Manitex)_Rev_B.doc / 2012-03-13 / Issue B / rk.
