Commissioning

4.3 Zero point adjustment of sensors

The system includes a service menu in which the zero point of the following sensors can be

adjusted:

 Main boom angle sensor > See chapter

4.3.1

 Slewing angle sensor > See chapter 4.3.2

 Main boom length sensor > See chapter

4.3.3

 Inclination sensor (X/Y) on superstructure > See chapter

4.3.4

The zero point adjustment is carried out during the initial commissioning of the crane and can be

carried out again as required (e.g. after sensor replacement).

Access to the adjustment menu is password-protected.

At any time by pressing the “HOME” function key. Return to SLI main menu

Abort

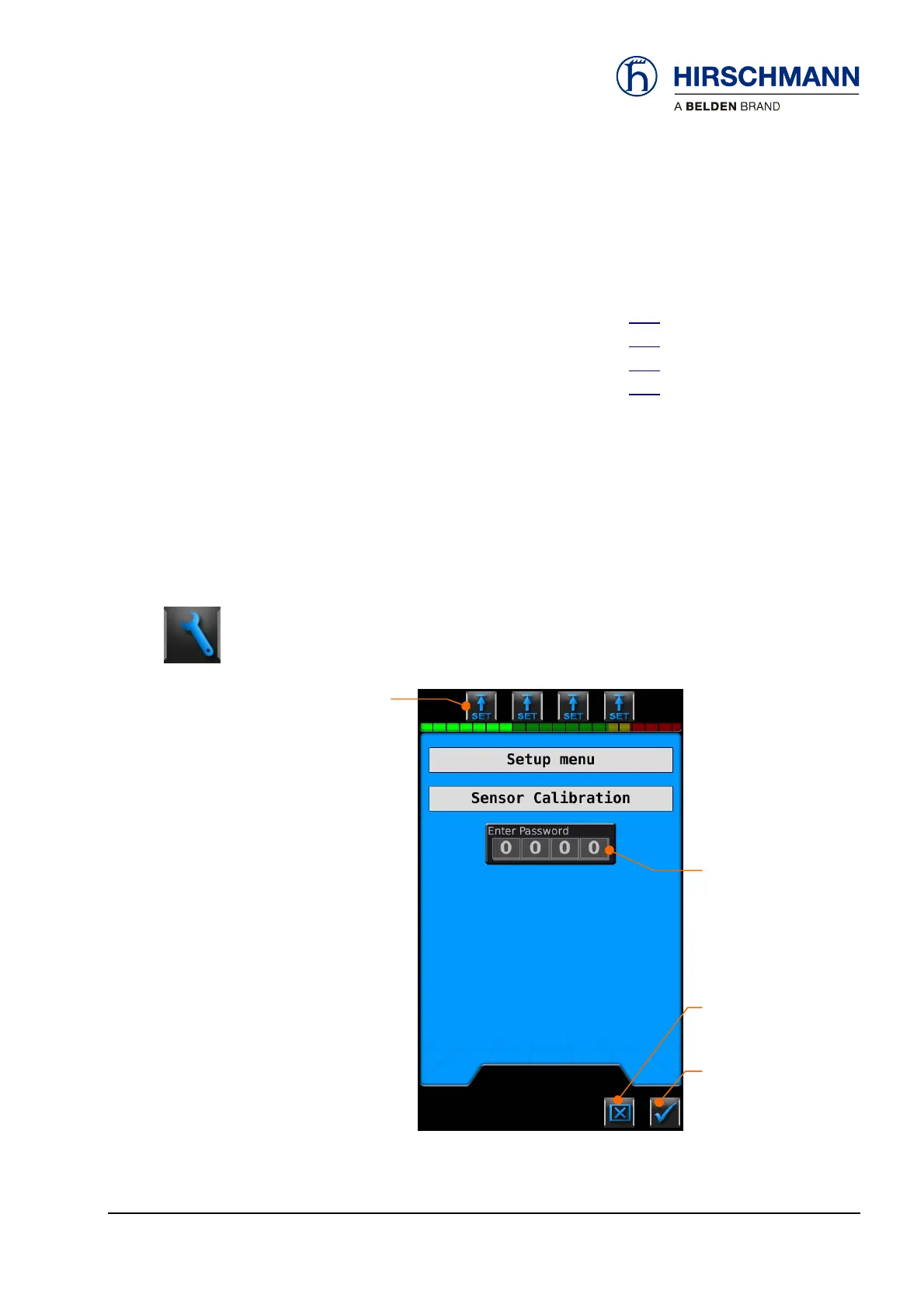

Calling up the Service menu from the SLI main menu:

> Password entry

Display

Service code

Code input:

select each digit of the code,

hold down key and use

rotary control to select digit,

then release key.

correction

Service code

confirmation

Service code

50-700-19-2001_422175_en (Manitex)_Rev_B.doc / 2012-03-13 / Issue B / rk.
