Installation and wiring
3.2.2 Ethernet connection
There is an Ethernet interface available for programming purposes.
Patch cable, 5m, M12, 4-pin, <-> RJ45 Art. no. 325900
Matching counter-
connector parts

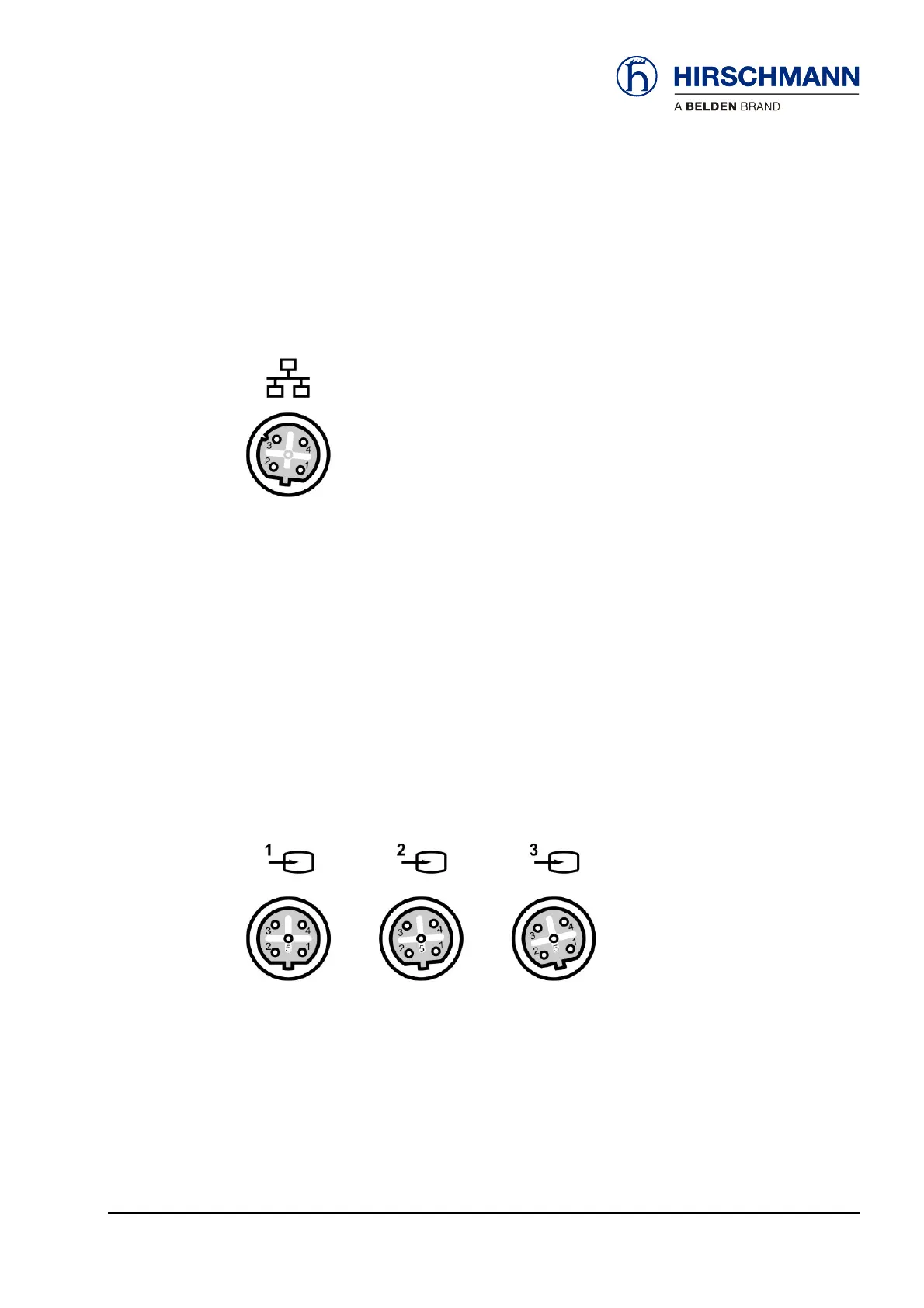

Connector overview
1 TD+
Pin assignation
2 RD+
3 TD-
4 RD-
3.2.3 Camera connection (optional)
Three video interfaces are available for integrating video signals.
Round connector M12, 5-pin, PIN, B-coded, according to EN 61076-2-101.
Cable available on request.
Matching counter-
connector
Connector overview
1 Video Signal +
Pin assignation
2 Camera Control
3 Camera +
4 Camera -
5 Video Signal GND
