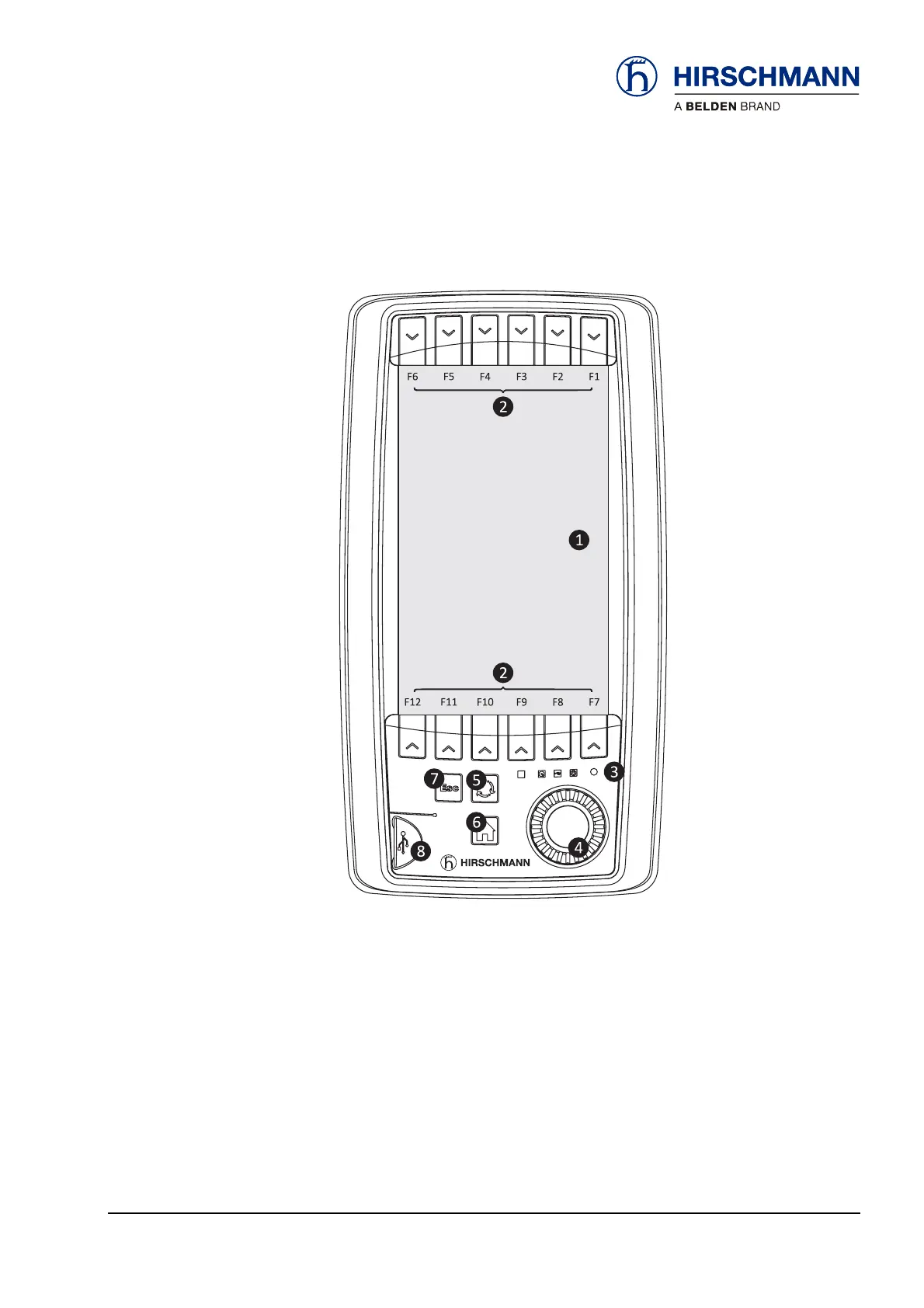

2.3 Overview of functional elements
1 TFT colour display
2 Function keys F1 - F12
3 Light sensor and status displays (LED)
4 Rotary control (encoder) with pushbutton function
5 Function key (SYSTEM) for system settings (not used here)
6 Function key (Home) for return to SLI main menu
7 Function key (Esc) for return or abort (not used here)
8 Front- USB 2.0 interface (use for service purposes)
