Operation
5.5.2 Radius monitoring
Programmable function for monitoring the minimum/maximum boom radius.

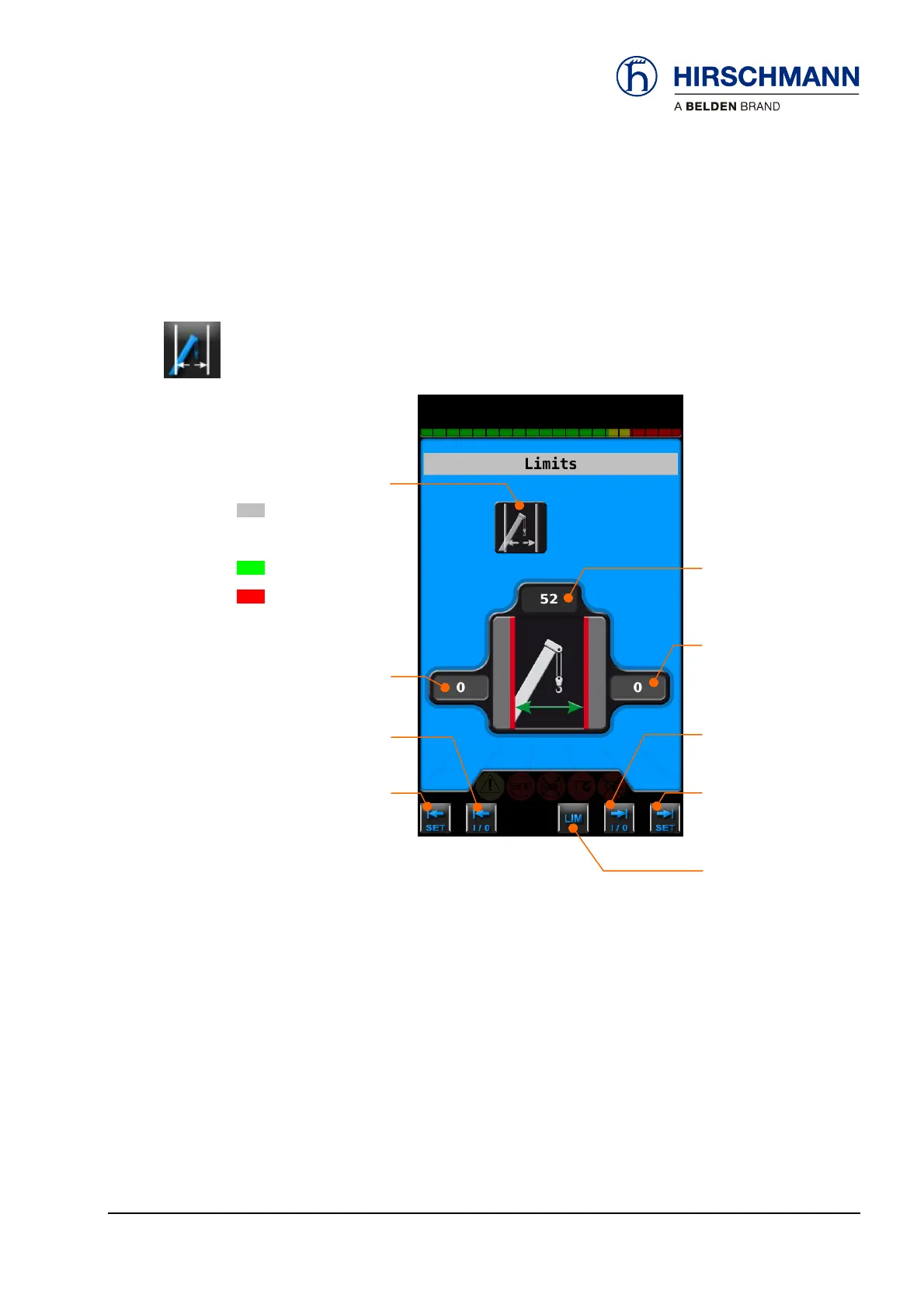

Calling up the radius monitoring function
from the LIMIT menu:
Radius limit symbol
Limit not
programmed or
inactive
Limit active
Limit value reached
or exceeded
Current radius
Saved limit value of
maximum radius
Switch on/off
max. radius monitoring
Save
current radius
as maximum limit value
Back to LIMIT menu
Saved limit value of
minimum radius
Switch on/off
minimum radius monitoring
Save
current radius
as minimum limit value
