Commissioning

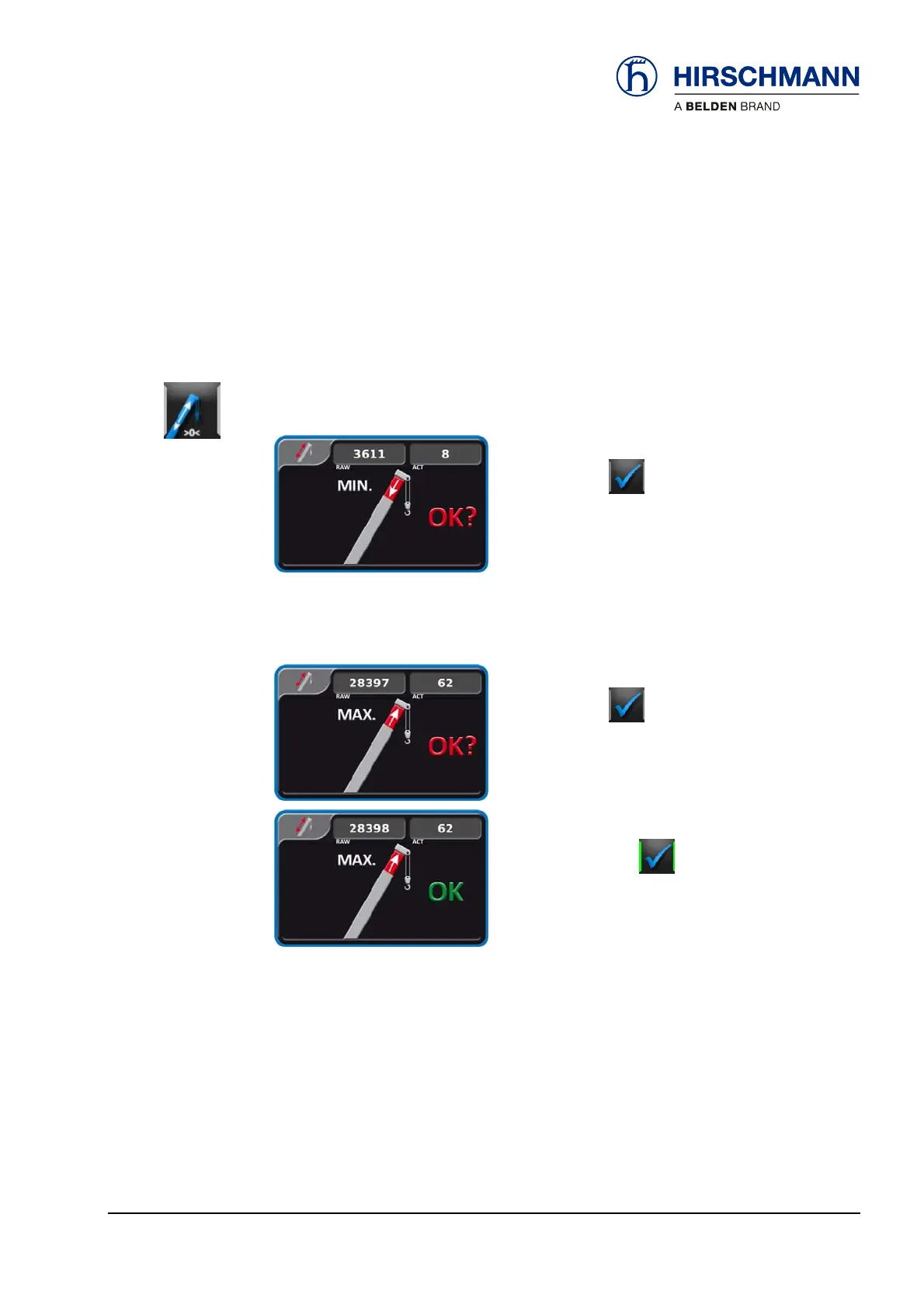

4.3.3 Sensor adjustment, main boom length sensor
Check mounted length- and/or length/angle encoder on the main boom for sufficient pretension and
rope length.
Move crane to 0° working position (boom back), stabilise and align precisely.
Luff boom to a position which permits full extension and retraction.
Preconditions:
Calling up function from adjustment menu.
1)
 Retract main boom fully.
 Confirm with
key when completed.
2)
 Adjust mechanical zero point on the length sensor
3)
 Extend main boom fully.
 Confirm with key when completed.
 Zero point is re-adjusted.
4)
Sensor is now adjusted.
 Confirm next with
key.
 Adjustment menu appears.
 Select next sensor for adjustment as required.
