Installation and wiring

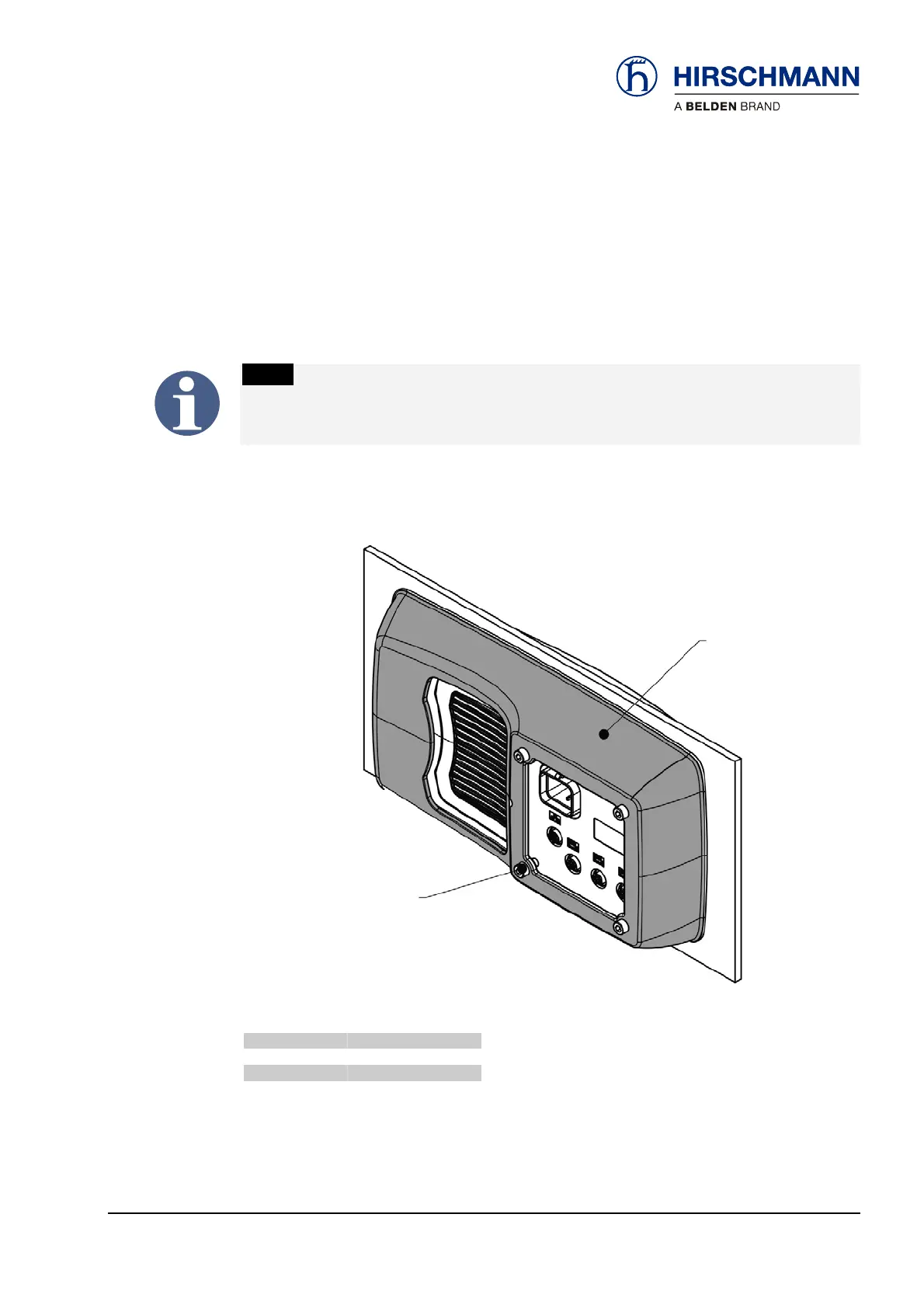

3.1.2 Recessed mounting
An installation frame, which is available as an accessory, is provided for recessed mounting in
operating panels or instrument panels.
Installation frame: Art. no. 608465
NOTE
Please note that the material thickness of the operating panel may not exceed 10 mm!
Installation frame
4 off M5 x
(see table for length)
Material
thickness
Screw length
1…3 mm M5 x 12
4…6 mm M5 x 16
7…10 mm M5 x 20
© 2012 Hirschmann Automation and Control GmbH · Mobile Machine Control Solutions · www.hirschmann.com 11/59
50-700-19-2001_422175_en (Manitex)_Rev_B.doc / 2012-03-13 / Issue B / rk.
