Installation and wiring
3.2 Electrical connection
The electrical wiring for the system and the console can be found in the current connection and
wiring diagram for your crane. It is not included in this manual.
CAUTION
Danger of electrical short-circuits.
Switch off all systems before commencing with the installation work!
IMPORTANT
Connection to the wrong power supply will cause damage to the device.
The device may only be connected to a DC voltage source of 10 V to 30 V!
Connections and interfaces can be found on the back of the device. You need to remove this first if
using the installation adapter.

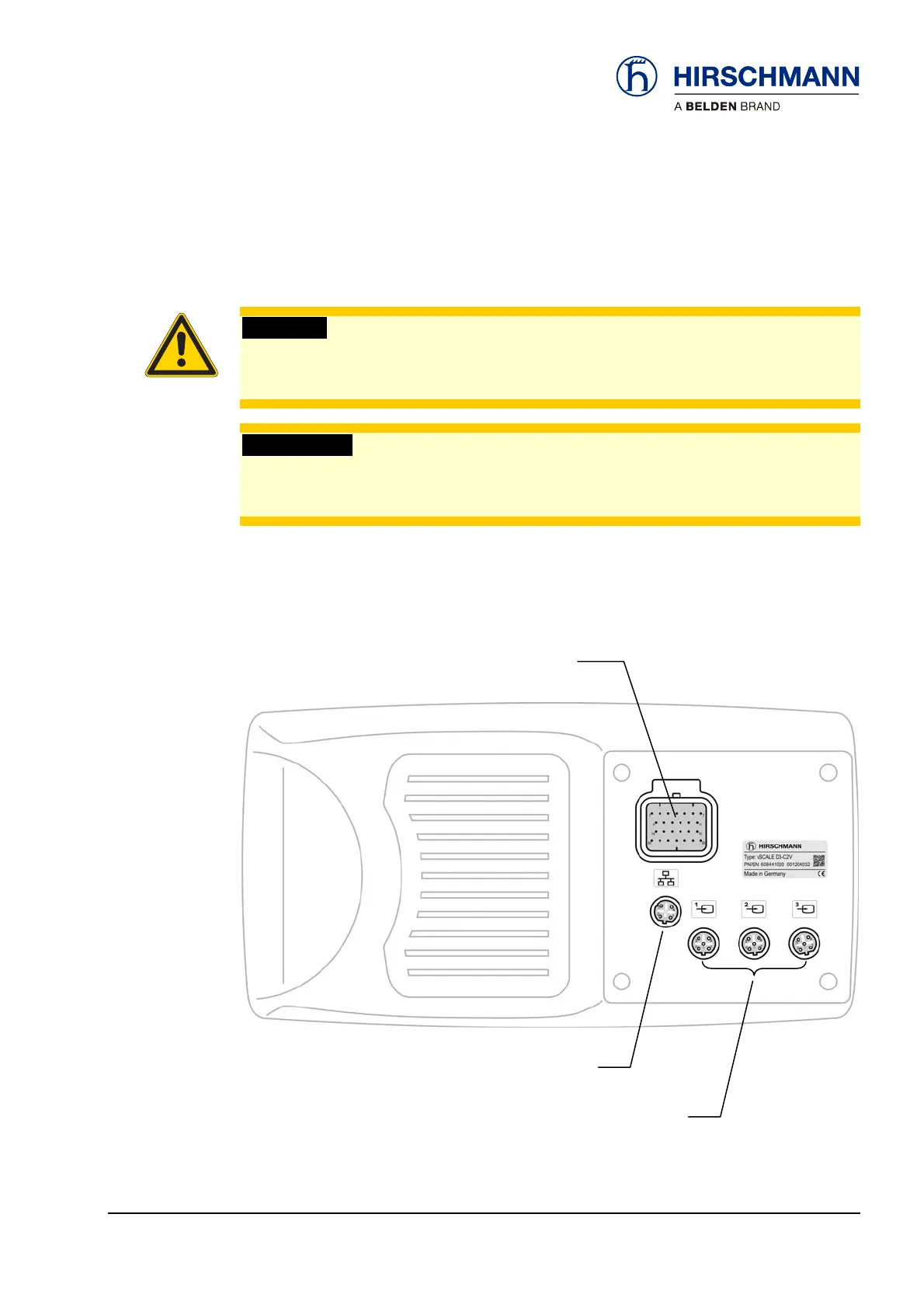

Camera connector 1-3
Central connector -X1
Ethernet connection
Back of device
© 2012 Hirschmann Automation and Control GmbH · Mobile Machine Control Solutions · www.hirschmann.com 14/59
50-700-19-2001_422175_en (Manitex)_Rev_B.doc / 2012-03-13 / Issue B / rk.
