Hirschmann Manitex vSCALE D3 - Slewing Angle Monitoring

Operation

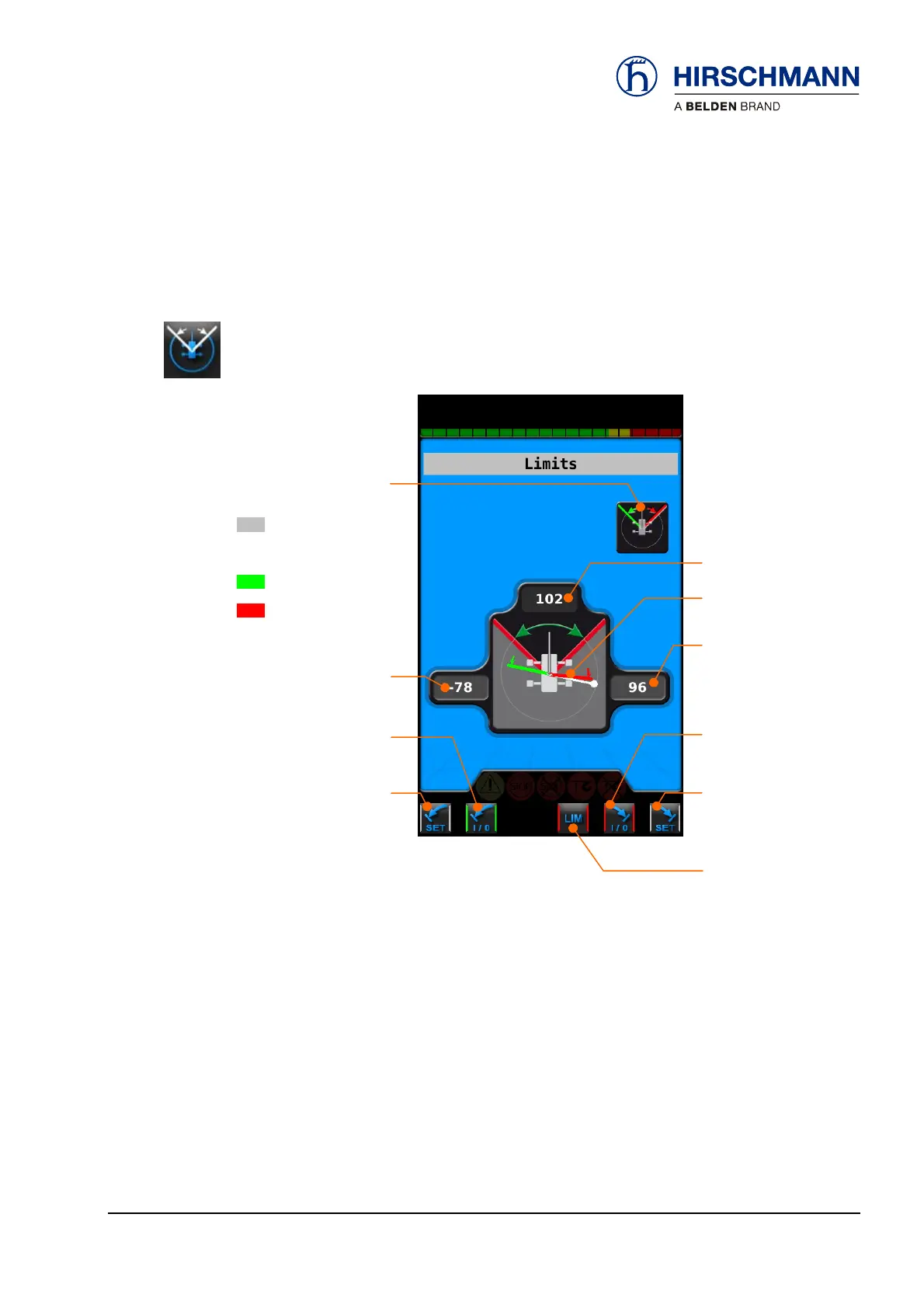

5.5.4 Slewing angle monitoring
Programmable function for monitoring the left-hand/right-hand slewing angle.
Calling up the slewing angle monitoring function
from the Limit menu:
Slewing angle limit
symbol:
Limit not
programmed or
inactive
Limit active
Limit value reached
or exceeded
Back
Saved limit value of left-
hand slewing angle
Switch on/off
left-hand slewing angle
monitorin
g
Save
current radius as left-hand
limit value
Current slewing angle
Saved limit value of right-
hand slewing angle
Display of current slewing
angle limits
Switch on/off
right-hand slewing angle
monitoring
Save
current radius as right-
hand limit value
to LIMIT menu
