Hirschmann Manitex vSCALE D3 - Zero Point Adjustment, Slewing Angle Sensor

Commissioning

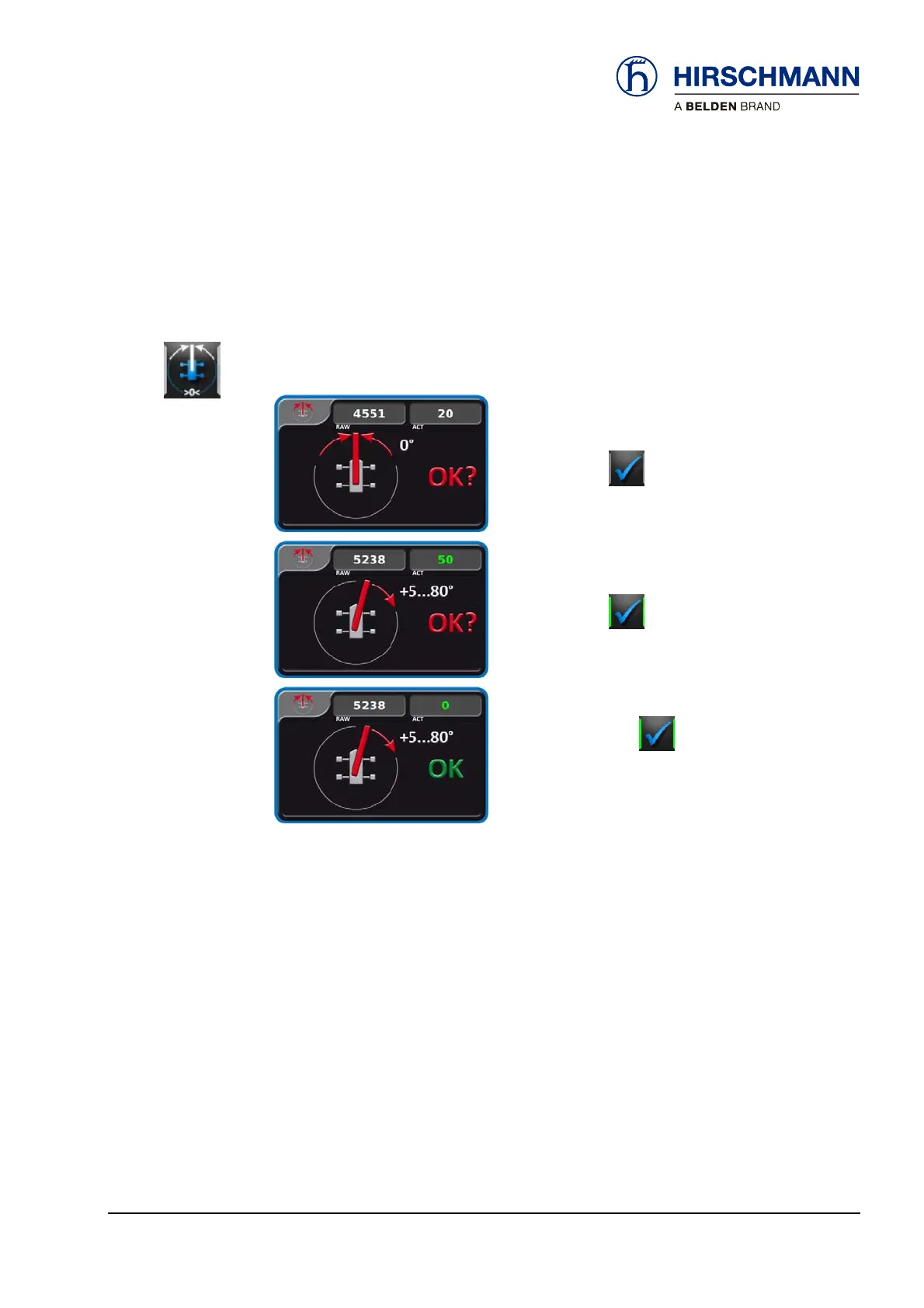

4.3.2 Zero point adjustment, slewing angle sensor
Move crane to 0° working position (boom back), stabilise and align precisely.
Luff boom to a position which permits slewing to the working position.
Preconditions:
Calling up function from adjustment menu.
1)
 Slew main boom to the precise mechanical 0°
position and luff to a position which permits slewing
to the working position.
 Confirm with key when completed.
 Zero point is re-adjusted.
2)
Angle direction is checked. To do this:
 Rotate main boom to the right by at least 5°.
 Confirm with key when completed.
3)
Sensor and angle direction are now adjusted.
 Confirm next with
key.
 Adjustment menu appears.
 Select next sensor for adjustment as required.
