Commissioning

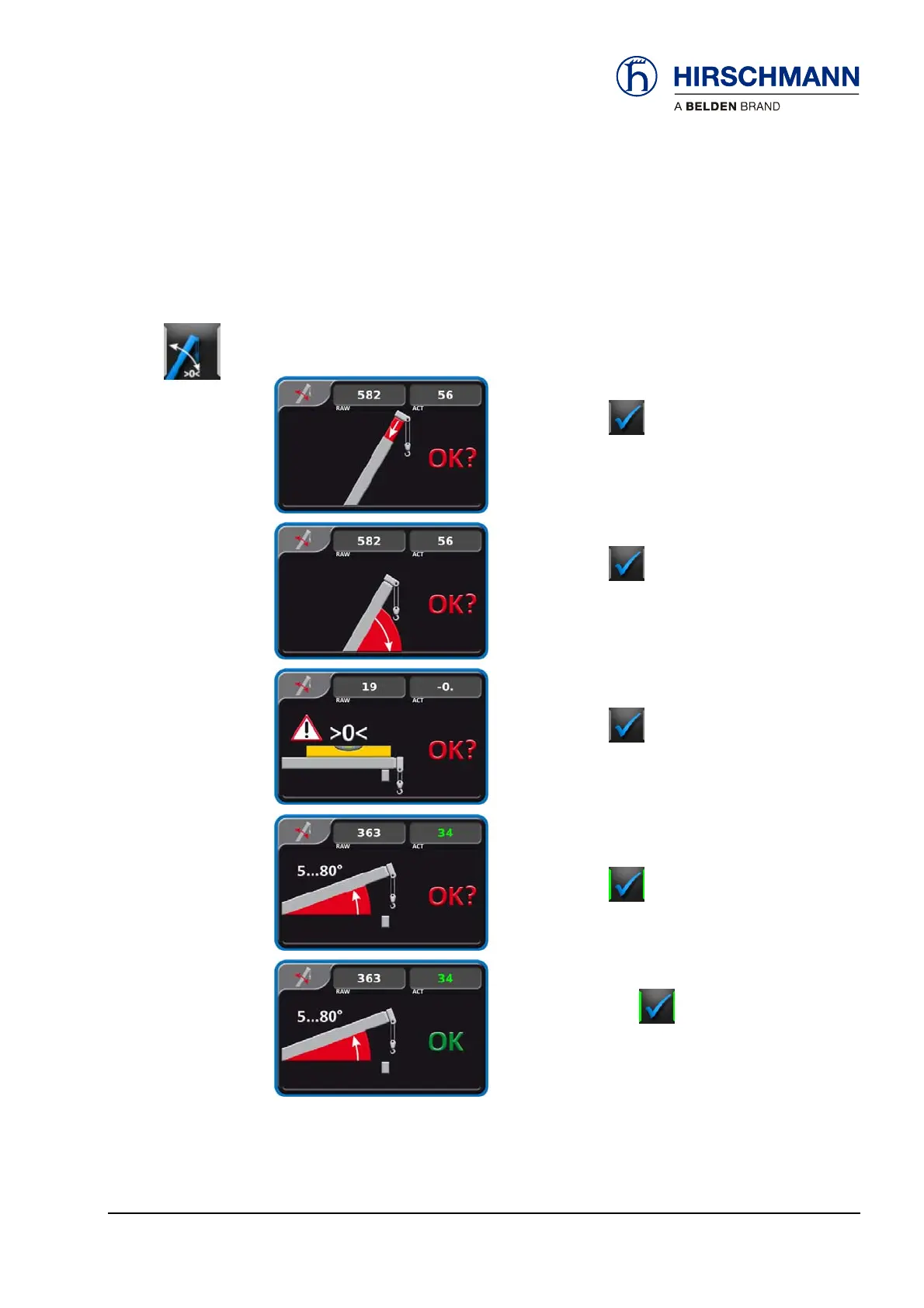

4.3.1 Zero point adjustment of the main boom angle sensor
Move crane to 0° working position (boom back), stabilise and align precisely.
Luff boom to a position which permits complete retraction.
Preconditions:
Calling up function from adjustment menu.
1)
 Retract main boom fully.
 Confirm with
key when completed.
2)
 Luff main boom down to 0°
 Confirm with key when completed.
3)
 Use spirit level to check precise horizontal alignment
of the boom.
 Confirm with
key when completed.
 Zero point is re-adjusted.
4)
Angle direction is checked. To do this:
 Luff main boom up by at least 5° .
 Confirm with
key when completed.
5)
Sensor and angle direction are now adjusted.
 Confirm next with
key.
 Adjustment menu appears.
 Select next sensor for adjustment as required.
