Operation
5.5 Working area monitoring
The SLI system has programmable functions for monitoring geometrical limits of the working area:
Height monitoring > See chapter
5.5.1
Radius monitoring > See chapter
5.5.2
Luffing angle monitoring > See chapter
5.5.3
Slewing angle monitoring > See chapter
5.5.4
Programming is carried out via an interactive menu.
The functions can be set individually or in combination. Active limit values are indicated by the
display of colour-highlighted symbols.
Exceeding a programmed limit value causes a corresponding flashing symbol to be displayed and
an acoustic alarm warning to be sounded.
CAUTION
Crane movements are not switched off when limit values are exceeded.

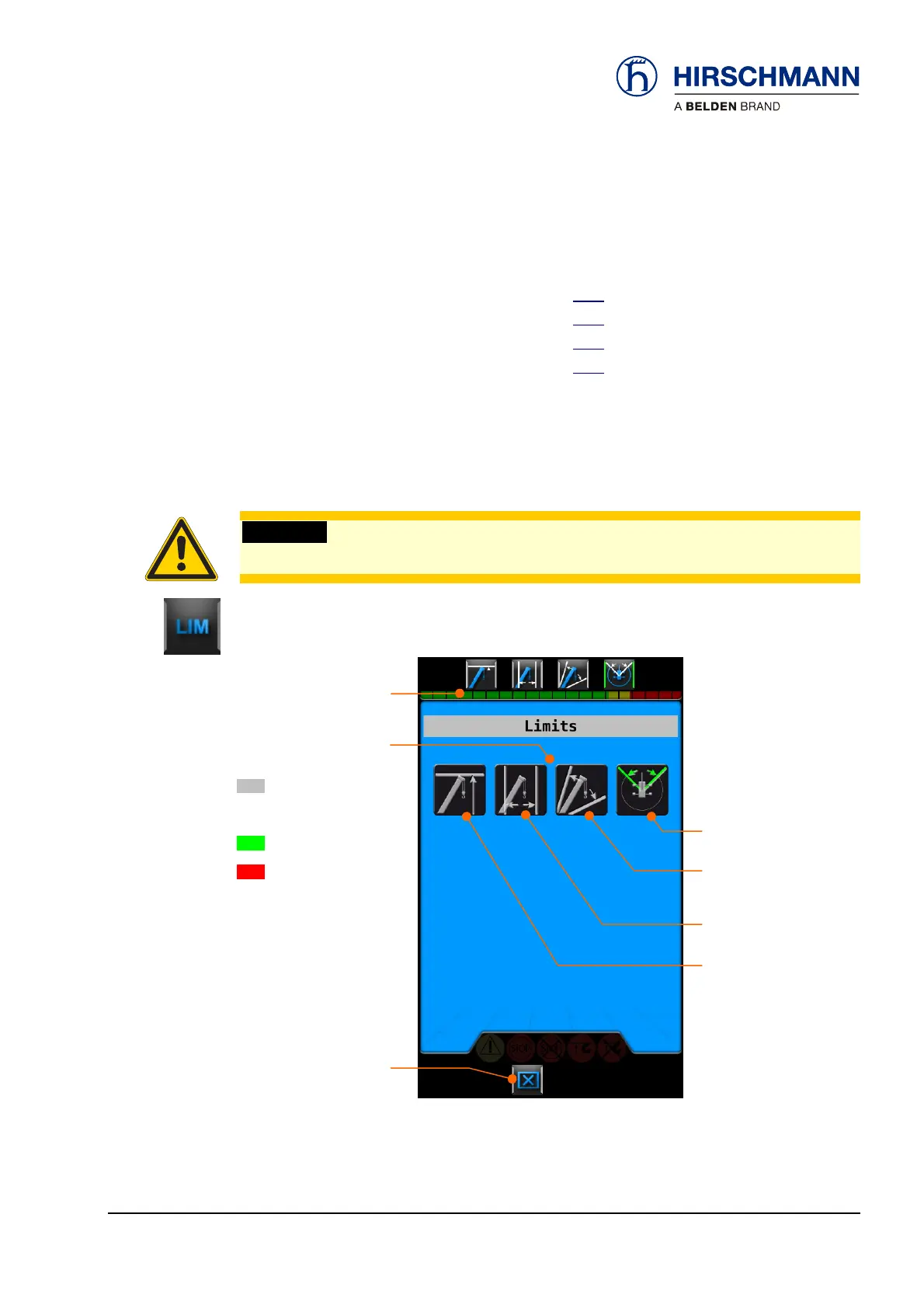

Calling up the LIMIT menu
from the SLI main menu:
Function keys:
Select limit type
Overview of symbols:
colour highlighting:
Limit not
programmed or
inactive
Limit active
Limit value reached
or exceeded
Function key:
De-activate all limits
symbol
Slewing angle limit
symbol
Luffing angle limit
symbol
Radius limit
symbol
Height limit
© 2012 Hirschmann Automation and Control GmbH · Mobile Machine Control Solutions · www.hirschmann.com 37/59
50-700-19-2001_422175_en (Manitex)_Rev_B.doc / 2012-03-13 / Issue B / rk.
