Operation

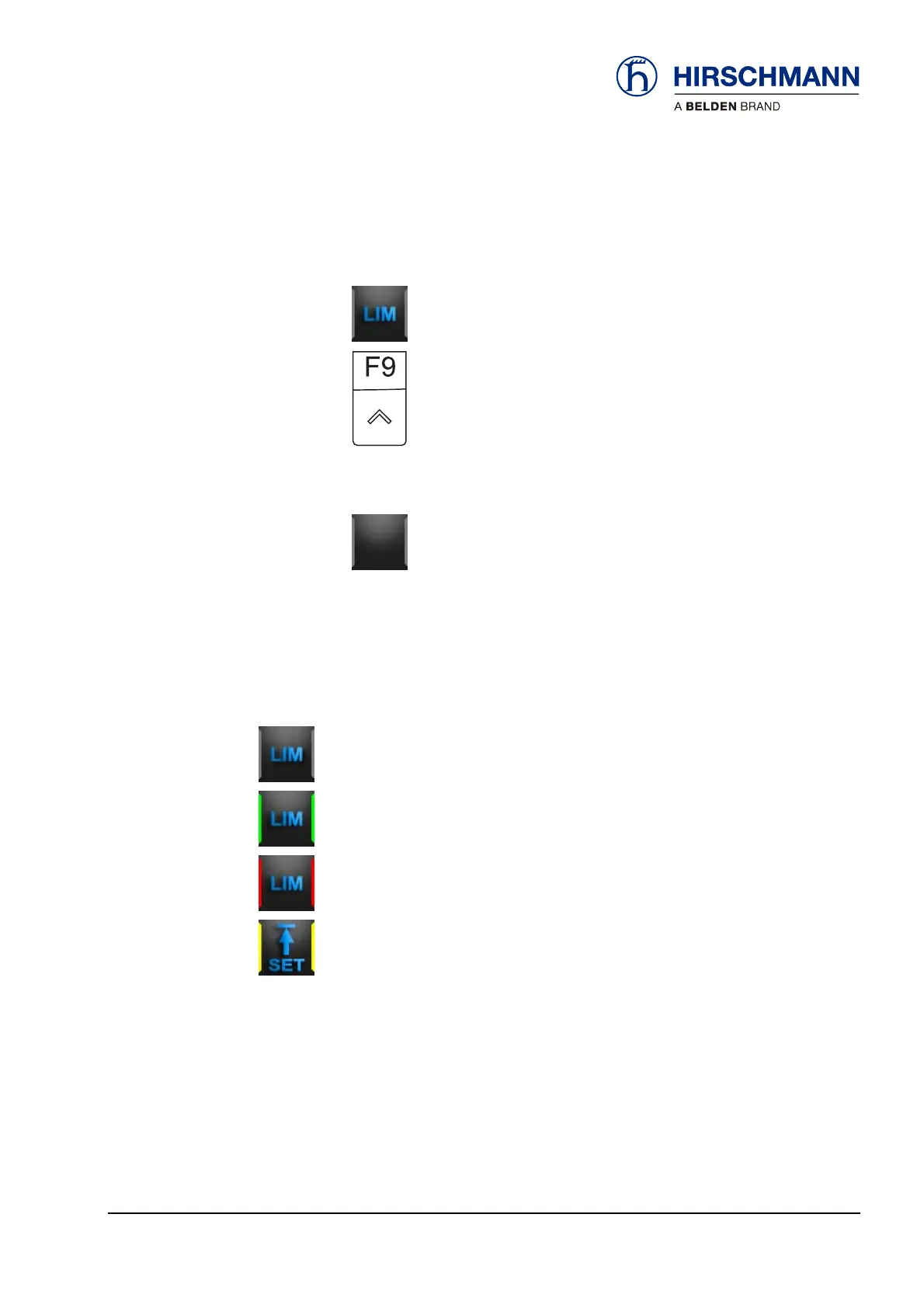

5.2.1 Function keys (soft keys)
The F1…F12 key functions are displayed with assigned symbols:
Example
Function keys with no assigned symbol are not active:
The function key symbols normally have grey sidebars.
Colour bars
Certain statuses are indicated by the change in colour or flashing of these sidebars:
Grey
Examples
Significance here: no geometrical limit programmed
Green Significance here: Geometrical limits are programmed and active
Red Significance here: Geometrical limit has been exceeded here
Yellow
Significance here: Highlights selected digit when entering service
code
© 2012 Hirschmann Automation and Control GmbH · Mobile Machine Control Solutions · www.hirschmann.com 33/59
50-700-19-2001_422175_en (Manitex)_Rev_B.doc / 2012-03-13 / Issue B / rk.
