Operation
5.10.2 Readings of CAN bus sensors

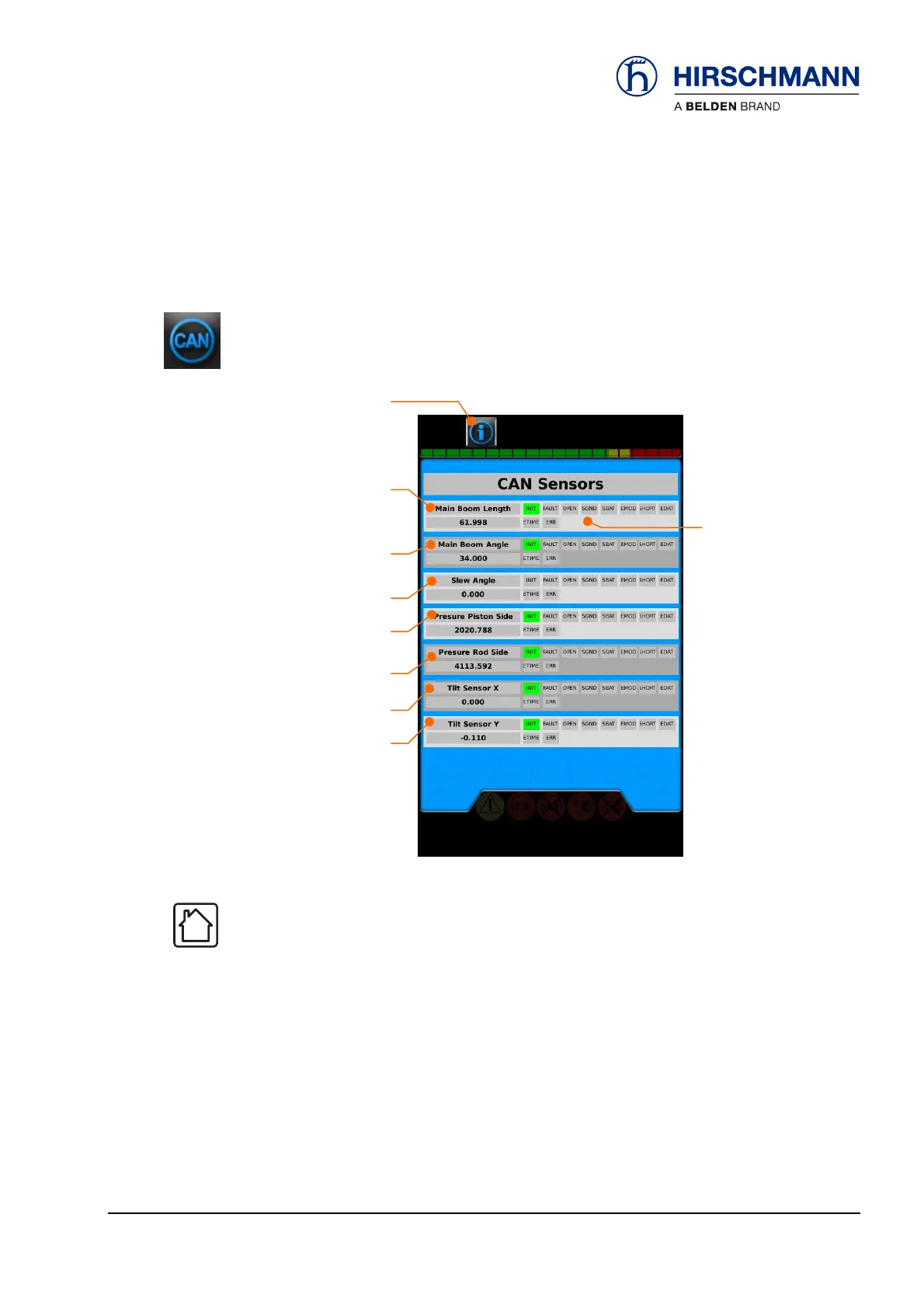

The system incorporates an Info menu in which the readings of the CAN bus sensors can be called
up: The readings are scaled, units are not shown (no raw sensor values).
Calling up the menu
from the INFO menu:
Back to INFO menu
Inclination, X-direction
Telescoped length
of main boom
Pressure, rod end
Pressure, piston end
Slewing angle
Angle of main boom
(not overall length)
Status of signal input
Inclination, Y-direction
Press the “HOME” function key to call up the SLI main menu:
© 2012 Hirschmann Automation and Control GmbH · Mobile Machine Control Solutions · www.hirschmann.com 47/59
50-700-19-2001_422175_en (Manitex)_Rev_B.doc / 2012-03-13 / Issue B / rk.
