Operation
5.2 SLI main menu
The SLI main menu is the central operating image during crane operation and the starting point for
the selection of various functions.

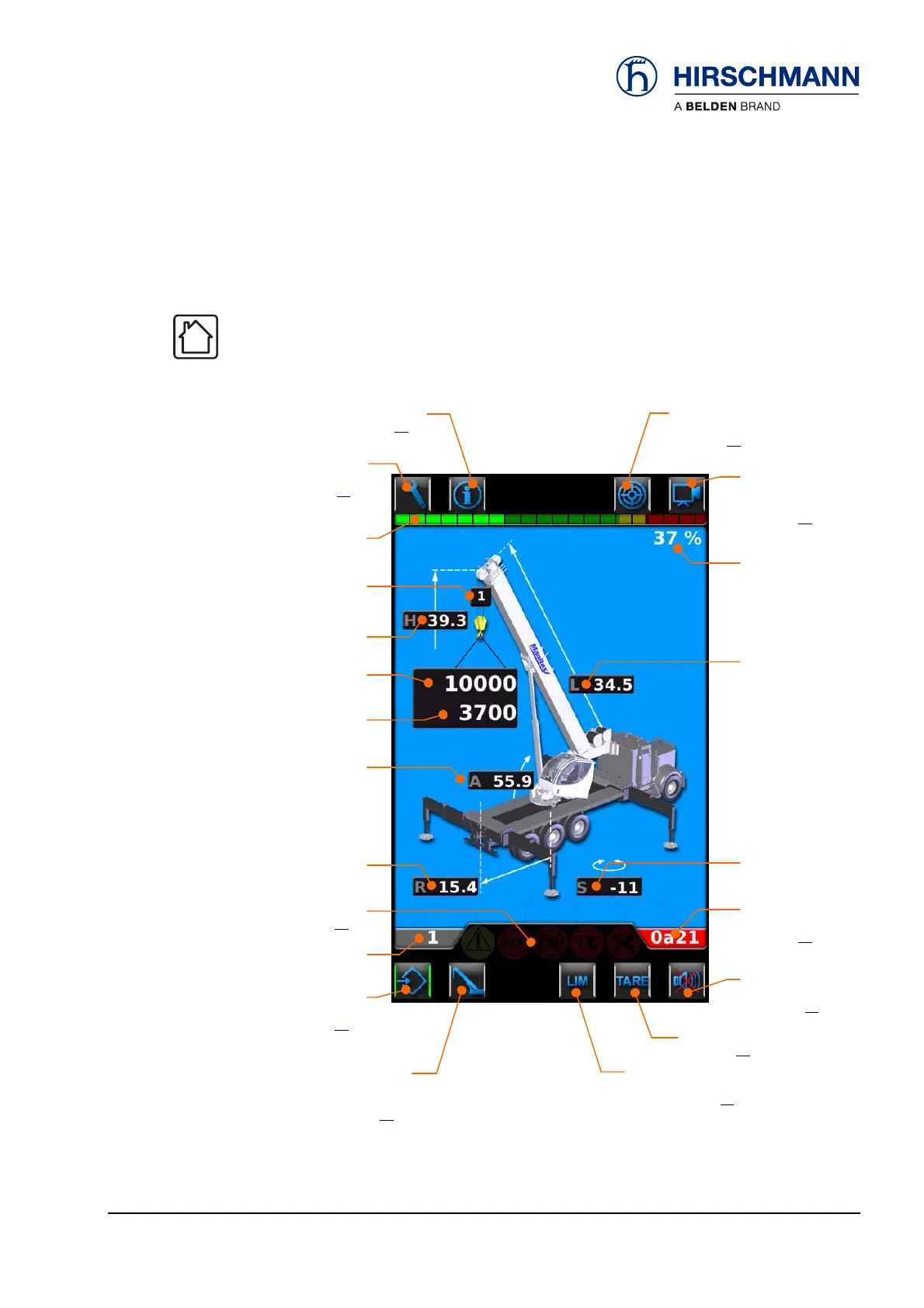

Press the “HOME” function key to call up the SLI main menu:
Function:
fades in live
video
(>Page
42)
Function:
calls up inclination display
(>Page
43)
Function:
calls up Info menu (> Page
45)
Function:
calls up Service menu (>
Page
49)
Load
(bar chart)
Load (in %)
Length
Main boom
Rope reeving
Boom tip height
Maximum lifting
capacity
Current lifting
capacity
Luffing angle
Main boom
Slewing angle
Error code, display
as required
(>Page
52)
Operating mode code
Function:
calls up SLI setup menu
(>Page
19)
Function:
calls up crane
configuration overview
(> Page
36)
Warning lights
(>Page
34)
Function:
switches off alarm
(> Page
44)
Function:Load taring
(>Page
44)
Function:
calls up Working Area Monitoring
menu (> Page
35)
Radius
© 2012 Hirschmann Automation and Control GmbH · Mobile Machine Control Solutions · www.hirschmann.com 32/59
50-700-19-2001_422175_en (Manitex)_Rev_B.doc / 2012-03-13 / Issue B / rk.
