Commissioning
After entering the correct password the adjustment menu appears in which the sensor to be
adjusted can be selected:

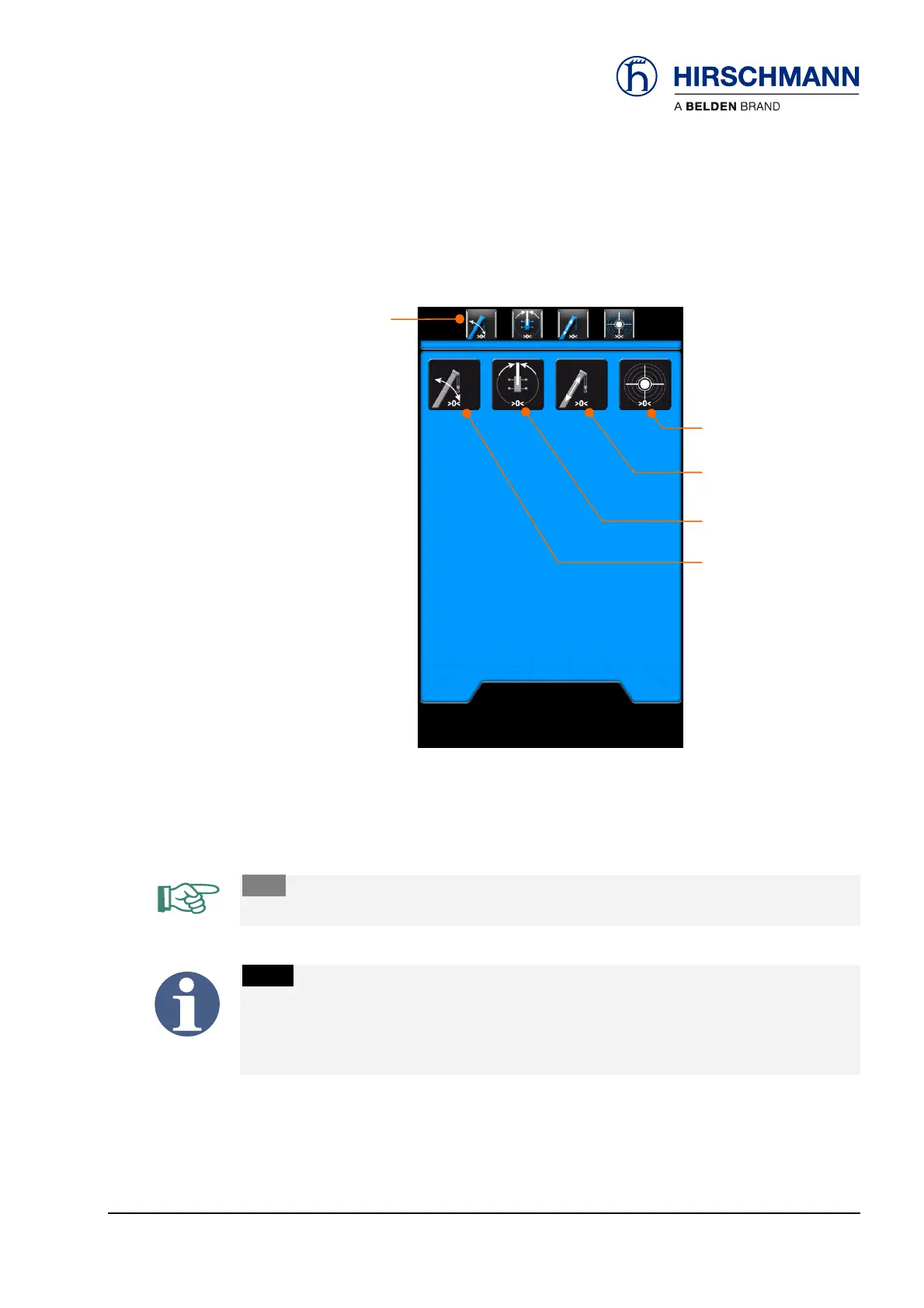

Calibration menu
Function keys:
selection of sensor for zero
point adjustment
Inclination
Length of main boom
Slewing angle
Angle of main boom
The following sections describe the adjustment of the individual sensors.
Each sensor can be individually adjusted. Any sequence is permissible.
HINT
Inclination adjustment is ideally carried out last.
NOTE
All menu steps must be completed for correct conducting of a adjustment process.
If any steps are missed, the adjustment process must be repeated.
Check the displays for plausibility after an adjustment process.
