Installation and wiring

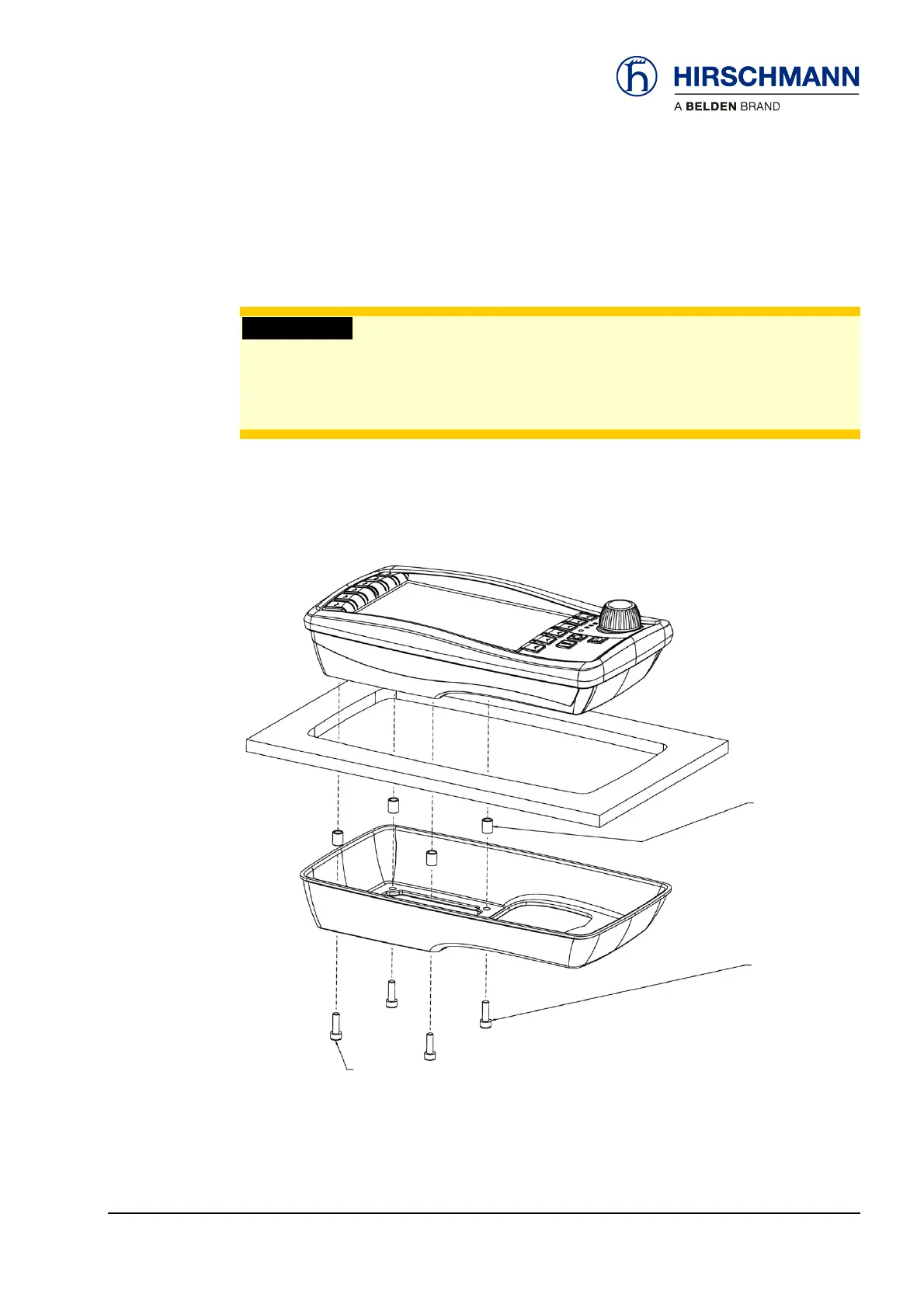

4 x M5 screws, DIN EN ISO 4762 (DIN 912) and matching spacers are used for mounting of the
installation frame.
Installation
Installation frame
IMPORTANT
Console could be damaged by use of screws of the wrong length and excessive torque!
Note the screw length information in the following overview.
The maximum screw tightening torque is 1 Nm.
The length of the screws depends on the material thickness of the operating panel:
Material thickness 1 to 3 mm: M5 x 12 4 to 6mm: M5 x 16 7 to 10 mm: M5 x 20
4 off
spacers
Length:
Material thickness
+0.5 mm
4 off M5 screws,
DIN EN ISO
4762 (DIN 912)
Length:
Depending on
material thickness
secure screws with e.g. Loctite 243!
max. ti
htenin
tor
ue 1 Nm!
© 2012 Hirschmann Automation and Control GmbH · Mobile Machine Control Solutions · www.hirschmann.com 13/59
50-700-19-2001_422175_en (Manitex)_Rev_B.doc / 2012-03-13 / Issue B / rk.
