Installation and wiring

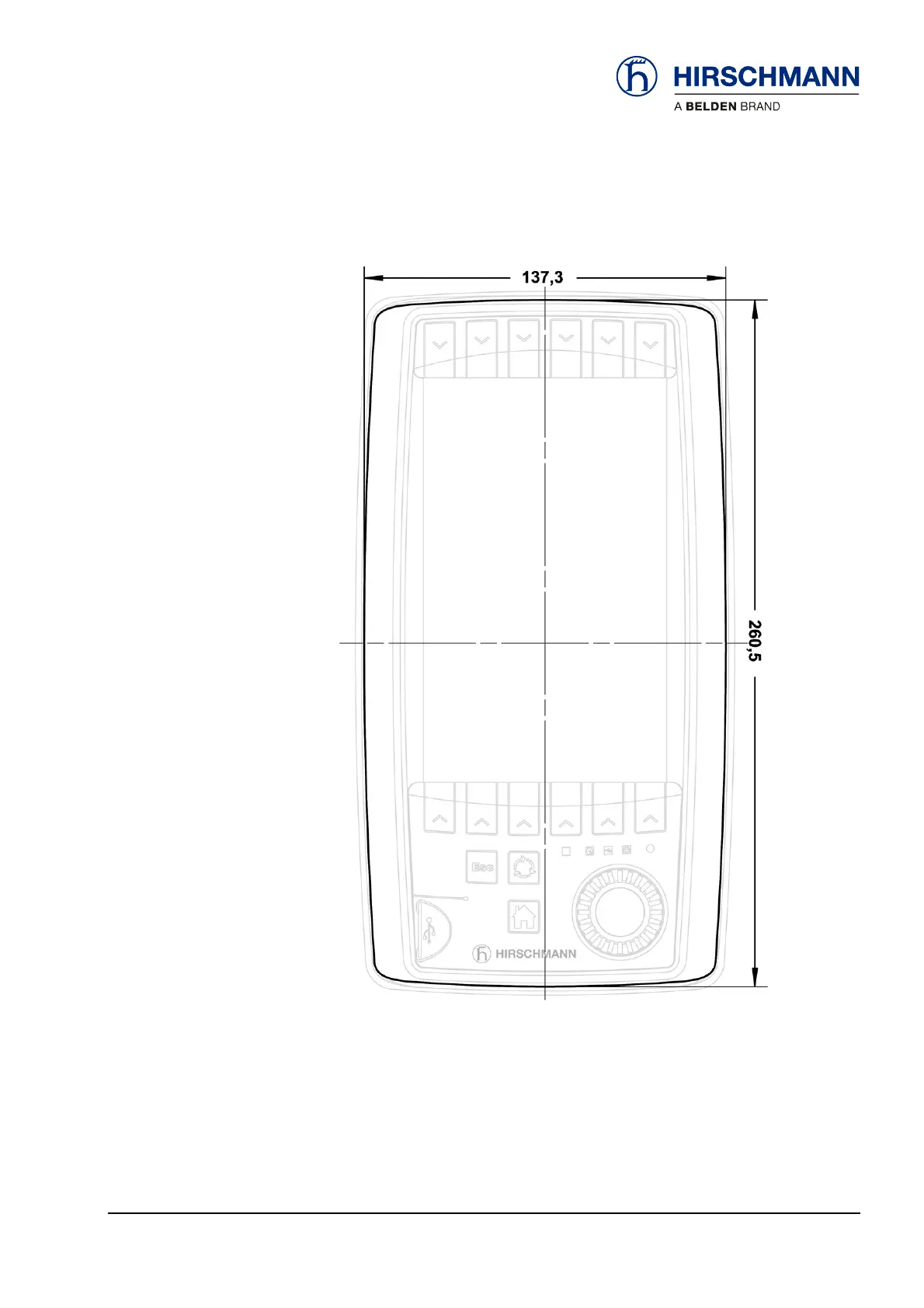

The dimensions for the cut-out in the operating panel can be taken from the following sketch:
Cut-out dimensions
On request you can also print out the templates (last page in this manual).
Template
© 2012 Hirschmann Automation and Control GmbH · Mobile Machine Control Solutions · www.hirschmann.com 12/59
50-700-19-2001_422175_en (Manitex)_Rev_B.doc / 2012-03-13 / Issue B / rk.
