General
1-4
Description

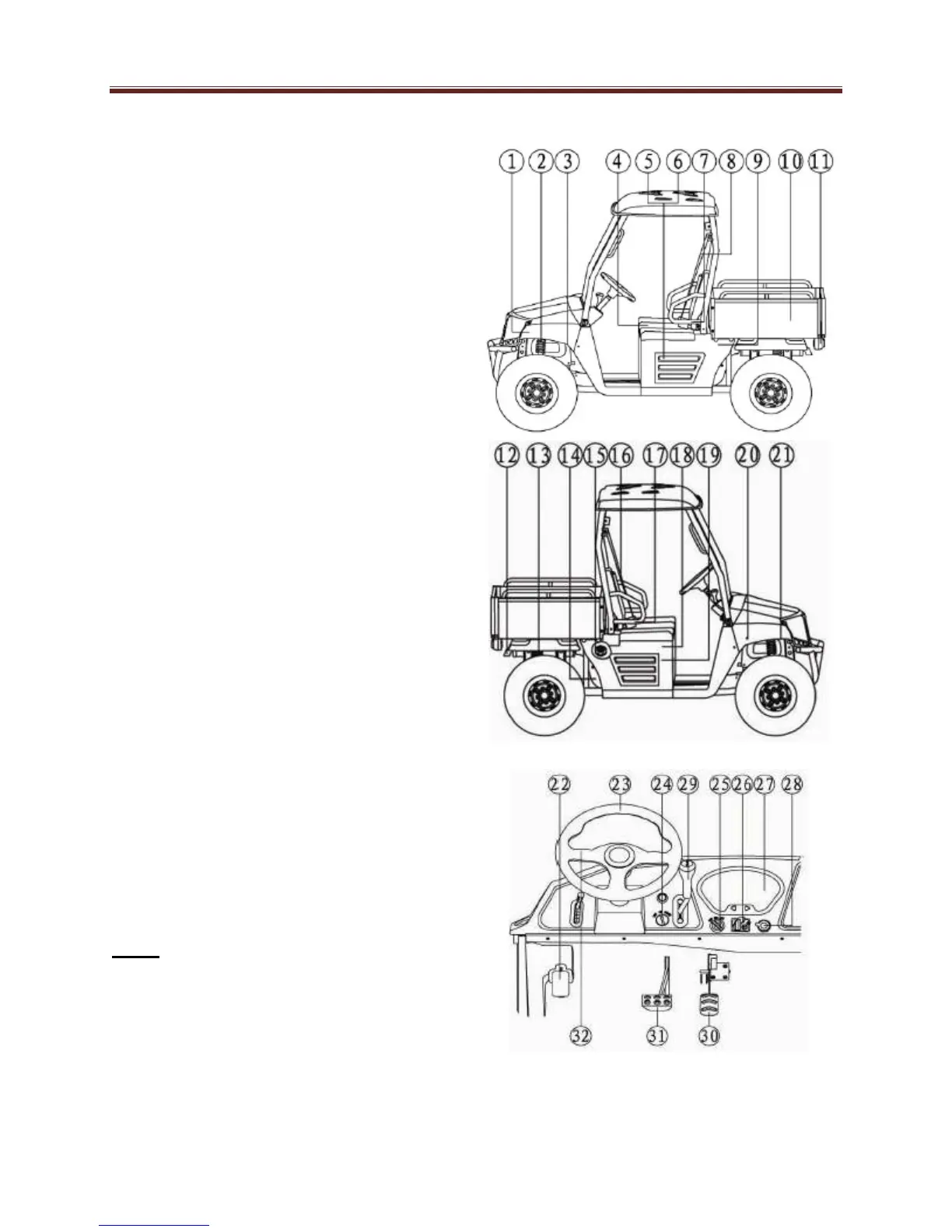

1. Headlights
2. Front shock absorber assembly
3. Brake fluid reservoir
4. Driver seat
5. Battery
6. Fuses
7. Left body protection plate
8. Driver seat belt
9. Air filter element
10. Cargo bed
11. Tail/brake lights
12. Spark arrester
13. Rear shock absorber assembly
14. CVT-belt case
15. Fuel tank cap
16. Passenger seat belt
17. Right body protection plate
18. Spark plug
19. Oil filter cartridge
20. Radiator cap
21. Coolant reservoir
22. Parking brake lever
23. Steering wheel
24. Ignition switch
25. Light switch
26. On-Command four-wheel-drive
and differential lock switches
27. Multi-function display gauge
28. Auxiliary DC jack
29. Drive select lever
30. Accelerator pedal
31. Brake pedal
32. Release parking handle
Note:
The vehicle you have purchased may
differ slightly from those in the figures
of this manual.
