Maintenance and Adjustment
3-10
c. Check the engine oil passages,
the oil filter cartridge and the oil
pump for damage or leaks.
• 4.Start the engine after solving the
problem(s) and check the engine oil
pressure again.
• Tighten the oil gallery bolt to
specification.
Oil gallery bolt
8Nm (0.8 kg ·m, 5.9 lb ·ft)
13. Install the passenger’s seat, Driver’s
seat.
CHASSIS

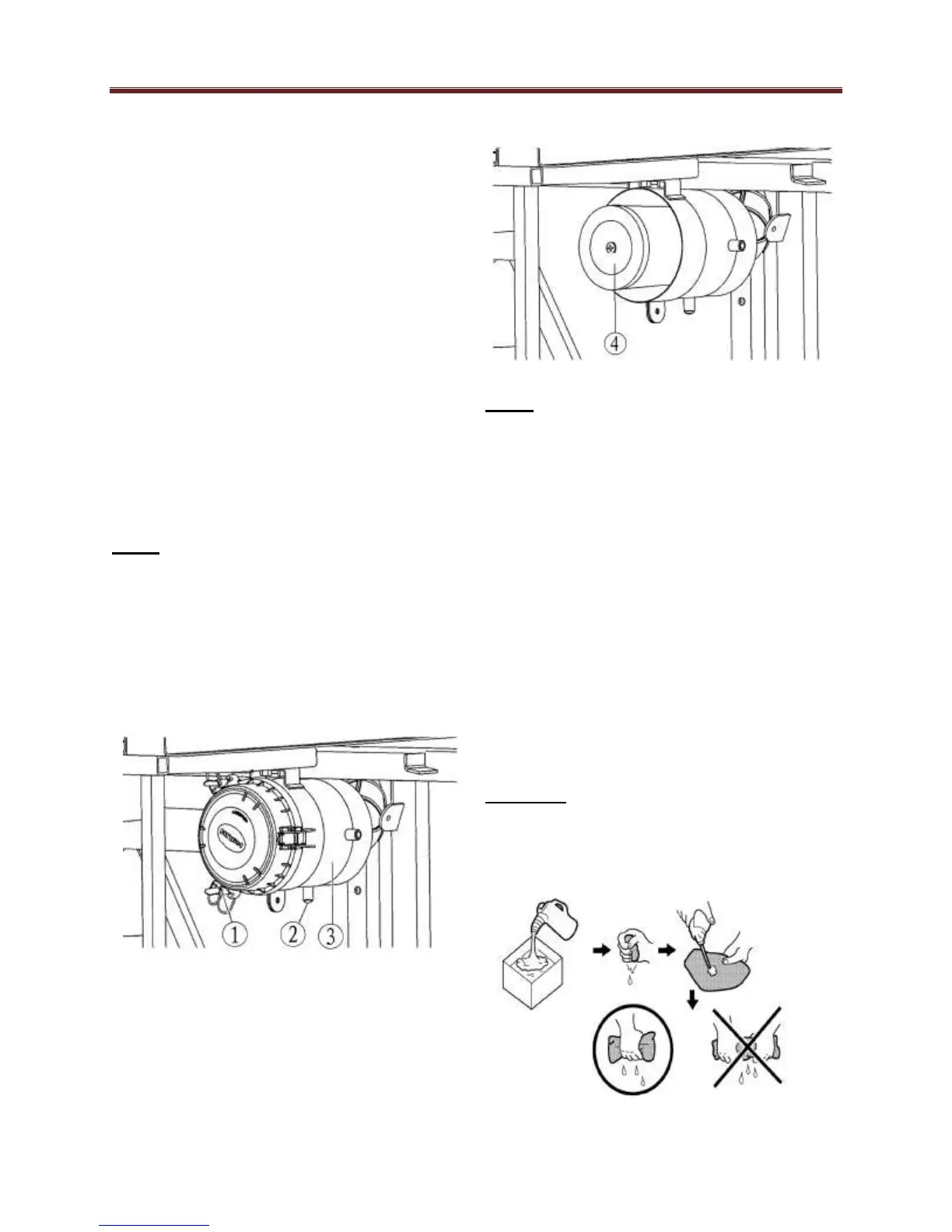

CLEANING THE AIR FILTER
Note:
There is a check hose (2) at the bottom
of the air filter case. If dust and/or water
collect in this hose, clean the air filter
element and air filter case.
1. Raise the cargo bed.
2. Remove the air filter cover (1).
3. Remove the air filter element. (4)
Note:
Never operate the engine with the air
filter element removed. This will allow
unfiltered air to enter, causing rapid
wear and possible engine damage.
Additionally, operation without the filter
element will affect carburetor tuning
with subsequent poor performance and
possible engine overheating.
4. Check the air filter element
• (1) Air filter frame
• (2) Sponge material
• (3) Element retaining plate
·
5. Clean the air filter element
• Wash the element gently, but
thoroughly in solvent.
Warning:
Use a cleaning solvent which is
designed to clean parts only. Never use
gasoline or low flash point solvents as
they may cause a fire or explosion.
