Hisun HS400 - Clutch Housing Assembly

Engine
4-36

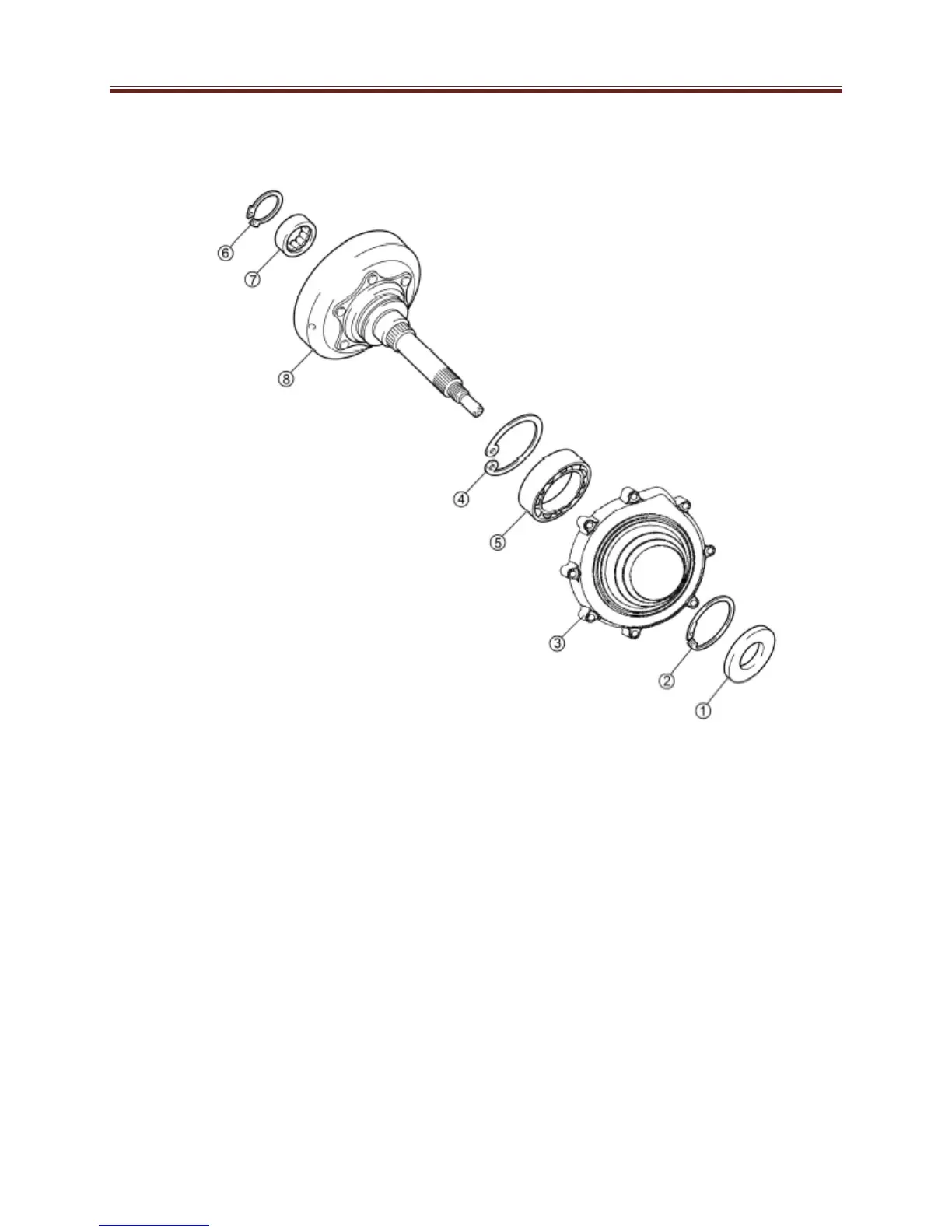

Clutch Housing Assembly
No.
Part Name
Qty
Remarks
1
2
3
4
5
6
7
8
Disassembling the clutch housing
Oil seal
Circlip
Bearing Housing
Circlip
Bearing
Circlip
Bearing
Clutch Housing
1
1
1
1
1
1
1
1
Remove the parts in the order
listed.
For installation, reverse the order
listed.
