Hisun HS400 - Rear Bridge

CHASSIS
5-38

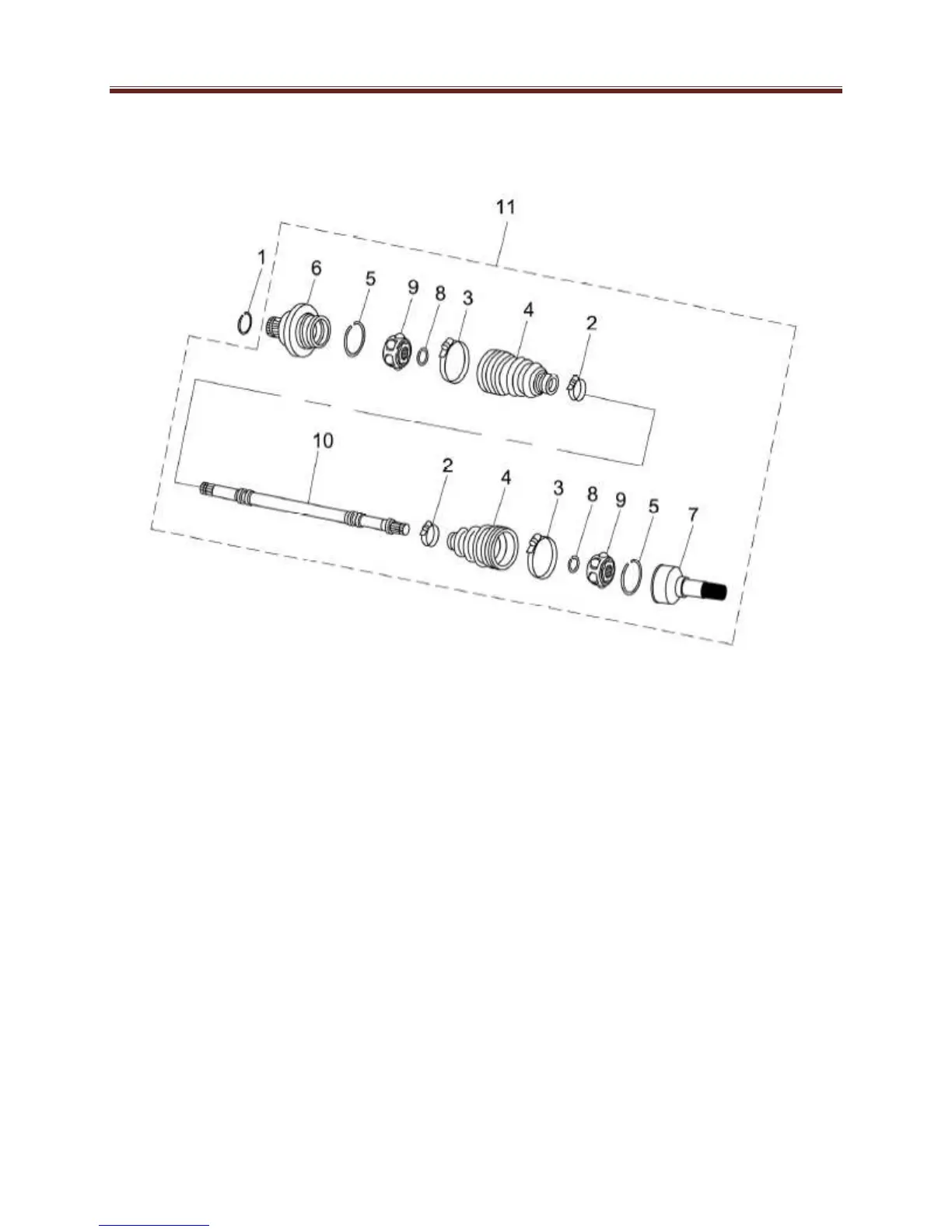

Rear Bridge
No.
Part Name
Qty
Remarks
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Removing the rear bridge(L.&R.)
Circlip
Boot band
Boot band
Dust band
Circlip
Double off-set joint assembly
Double off-set joint assembly
Circlip
Ball bearing
Joint shaft assembly
C.V. Axle, rear bridge
Nut M12×1.25
Housing, pinion bearing
Rear adjustment gasket I (0.1T)
2
4
4
4
4
2
2
4
4
2
2
1
1
1
