Hisun HS400 - Middle Driven Shaft

Engine
4-54

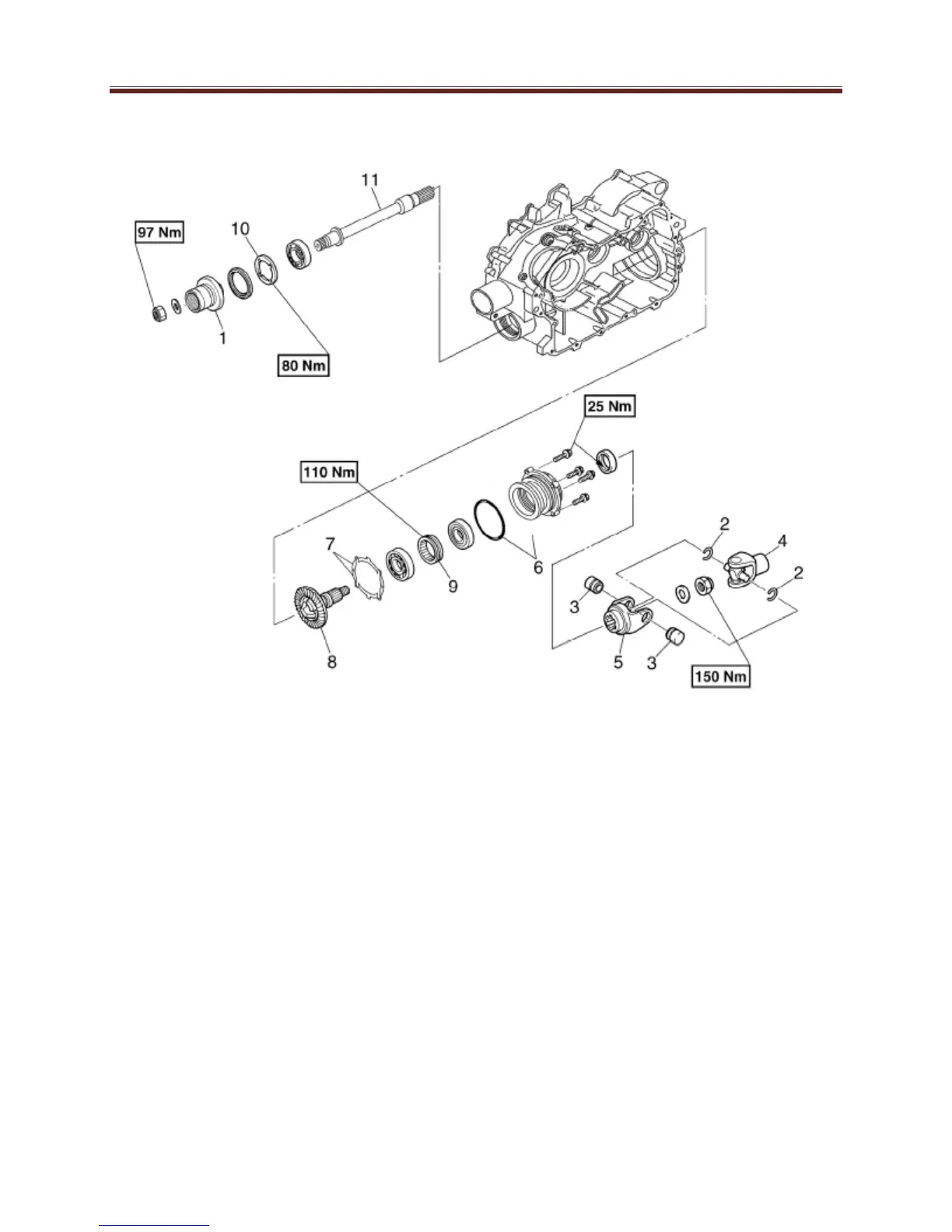

Middle Driven Shaft
No.
Part Name
Qty
Remarks
1
2
3
4
5
6
7
8
9
10
11
Removing the middle drive shaft
Crankcase separation
Drive shaft coupling
Circlip
Bearing
Universal joint
Universal joint yoke
Bearing housing/O-ring
Shim
Middle driven pinion gear
Bearing retainer
Bearing retainer
Middle driven shaft
1
2
2
1
1
1/1
1
1
1
1
1
Remove the parts in the order
listed.
For installation, reverse the
order listed.
