Engine
4-53

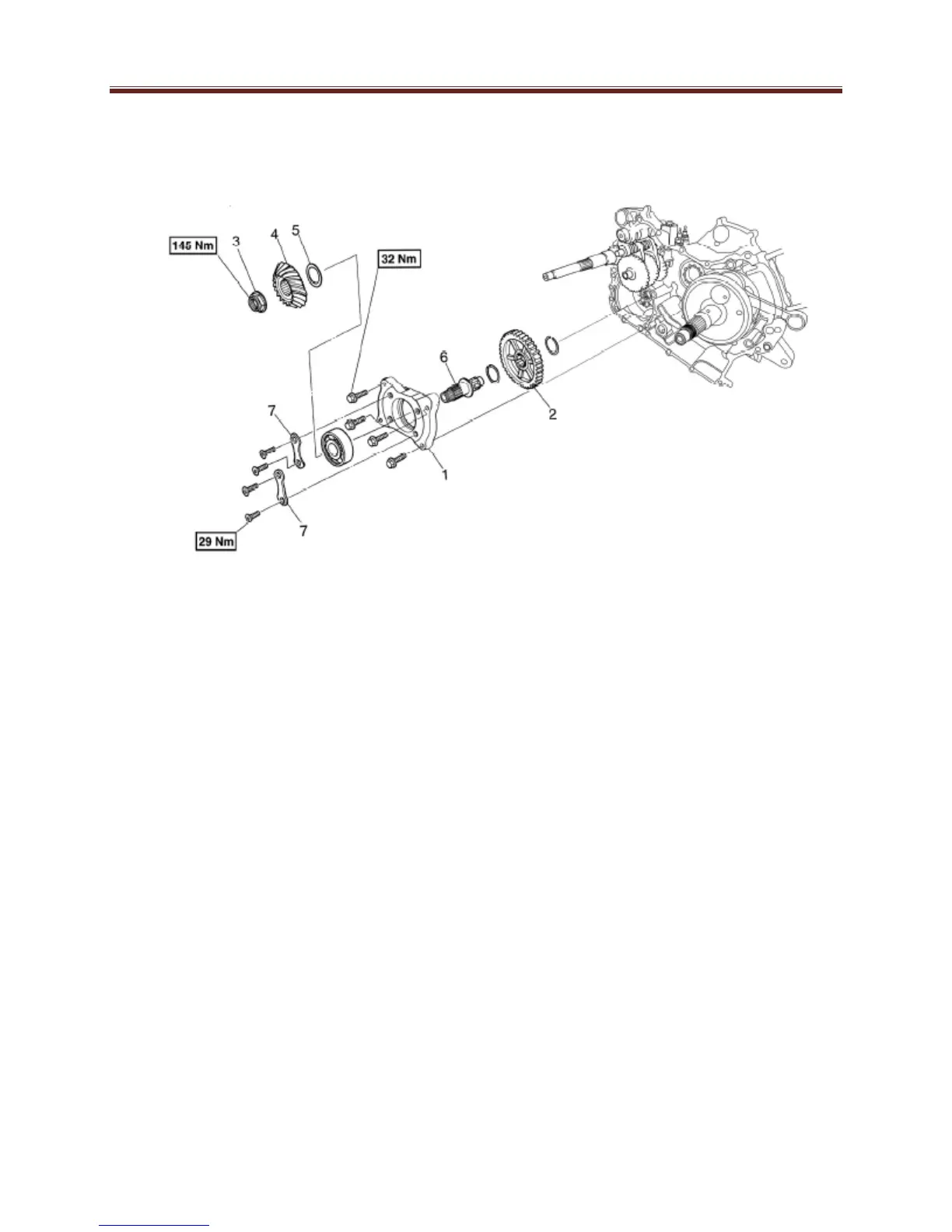

Middle Drive Shaft
No.
Part Name
Qty
Remarks
1
2
3
4
5
6
7
Removing the middl
e drive shaft
Crankcase
separation
Bearing housin
g
Middle drive gear
Nut
Middle drive pinio
n gear
Shim
Middle drive shaf
t
Bearing reta
iner
1
1
1
1
1
1
2
Remove the
parts in the order
listed.
For installat
ion, reverse the
order listed
.
145
147
