Engine
4-7
Installing the Cylinder Head
Install a new cylinder head gasket

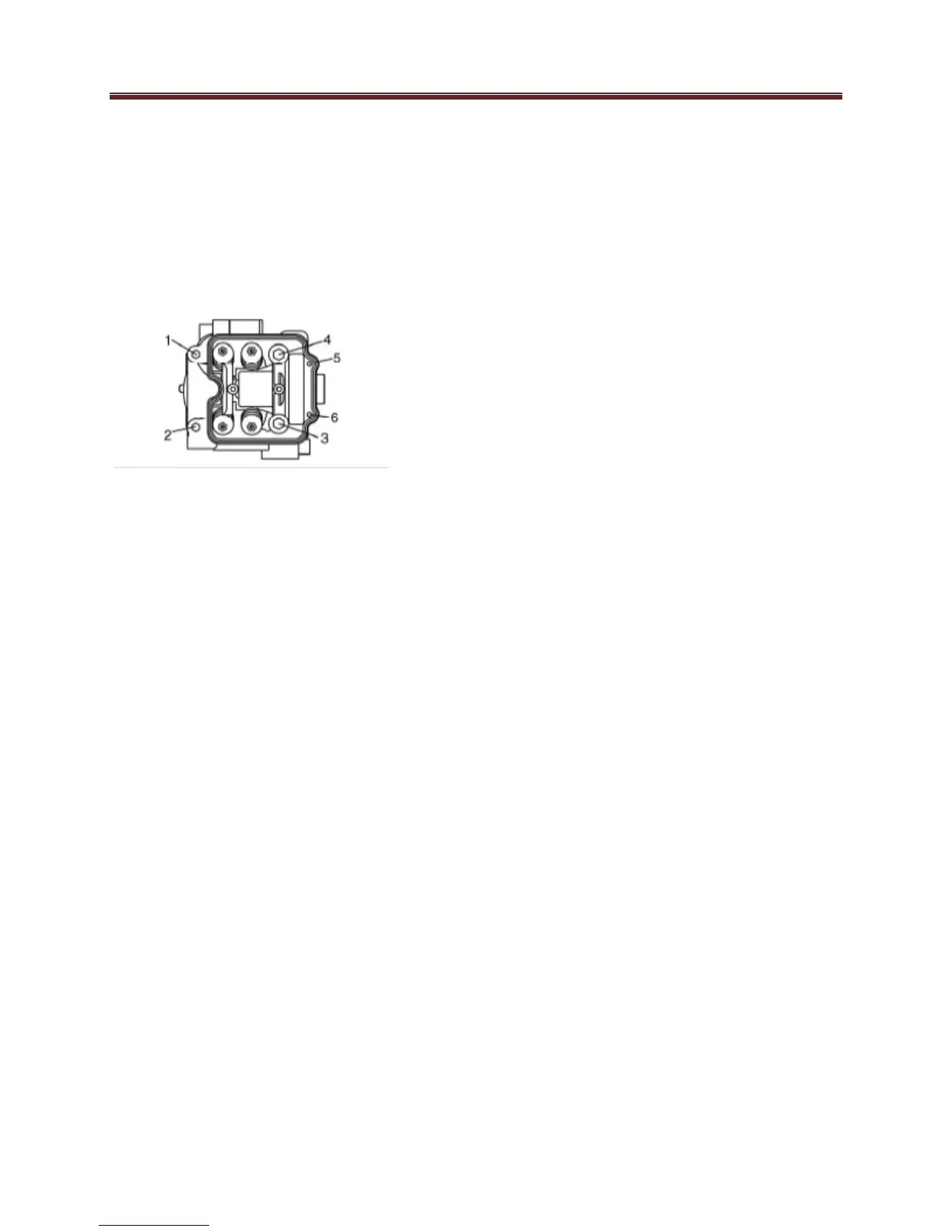

Then install the cylinder head. Tighten the
9mm bolts #1 - 6 to 38 Nm or 28 ft lbs in
the order shown in two stages.
Ttighten the 6mm bolt #7 in two stages.
10 Nm or 7 ft lbs
Install the timing chain guide (exhaust
side).
Lightly press the timing chain tensioner rod
into the timing chain tensioner housing by
hand.
