3 - 8
(5) Be sure to put on a safety mask, thick long sleeves, gloves, etc. prior to the removal procedure.
(6) Turn by hand and remove the high voltage terminal terminal screw on the anode cord side (③ in Fig.
3-8). An insulating stopper is attached to this terminal screw so it will not drop off and be lost.
(7) Turn by hand and remove the high voltage terminal terminal screw on the cathode cord side (④ in
Fig. 3-8).

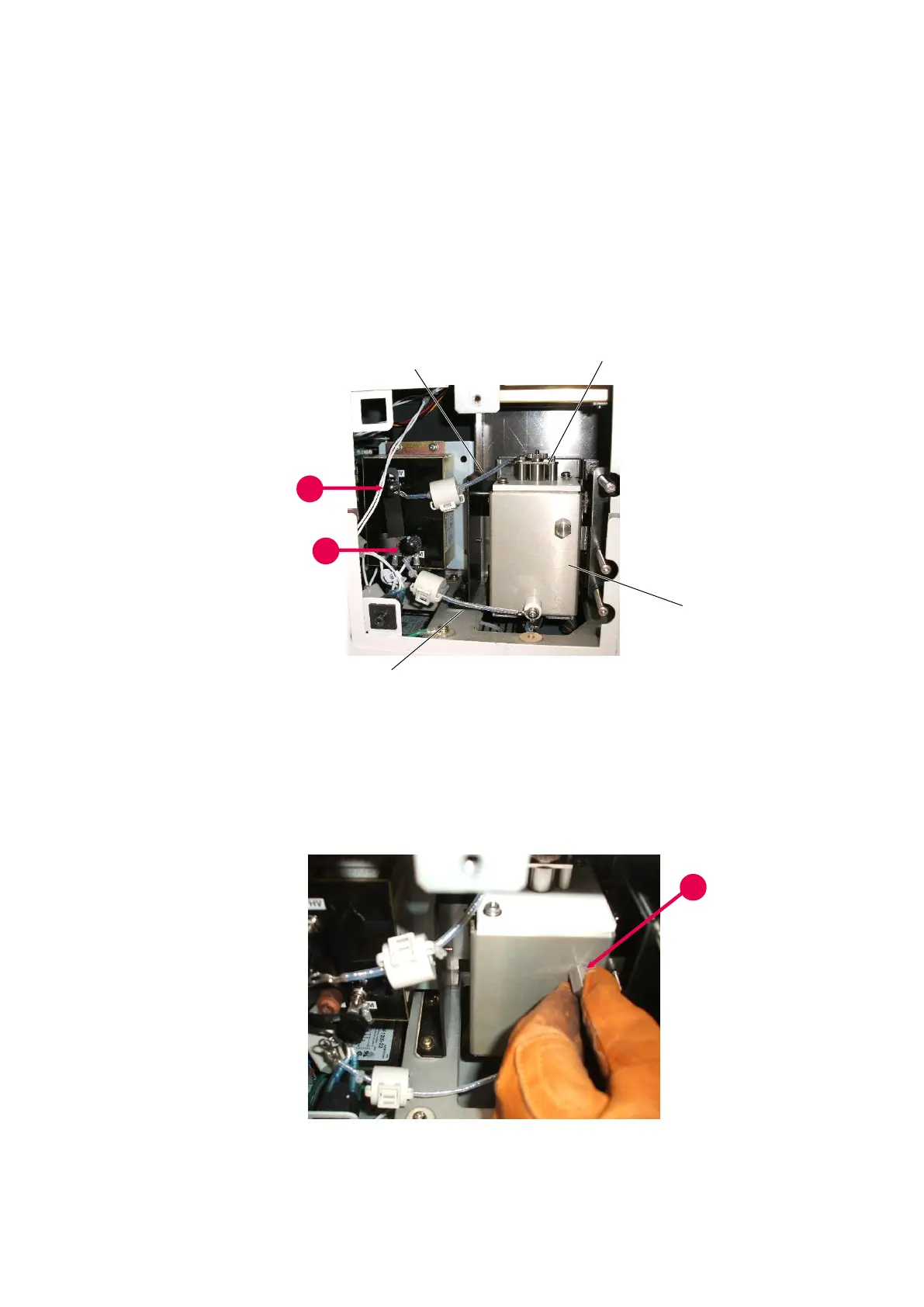

Fig. 3-8 Removal of Lamp Holder (1)
(8) Turn the lamp holder retaining screw (⑤ in Fig. 3-9) counterclockwise by hand and loosen the
holder.
Fig. 3-9 Removal of Lamp Holder (2)
