(9) Hold the lamp holder as shown in Fig. 3-10, and while grasping the screw part of the holder, lift the
whole unit a little upward and detach it.
Be careful when removing so the cathode side of the lamp will not hit the lower base.

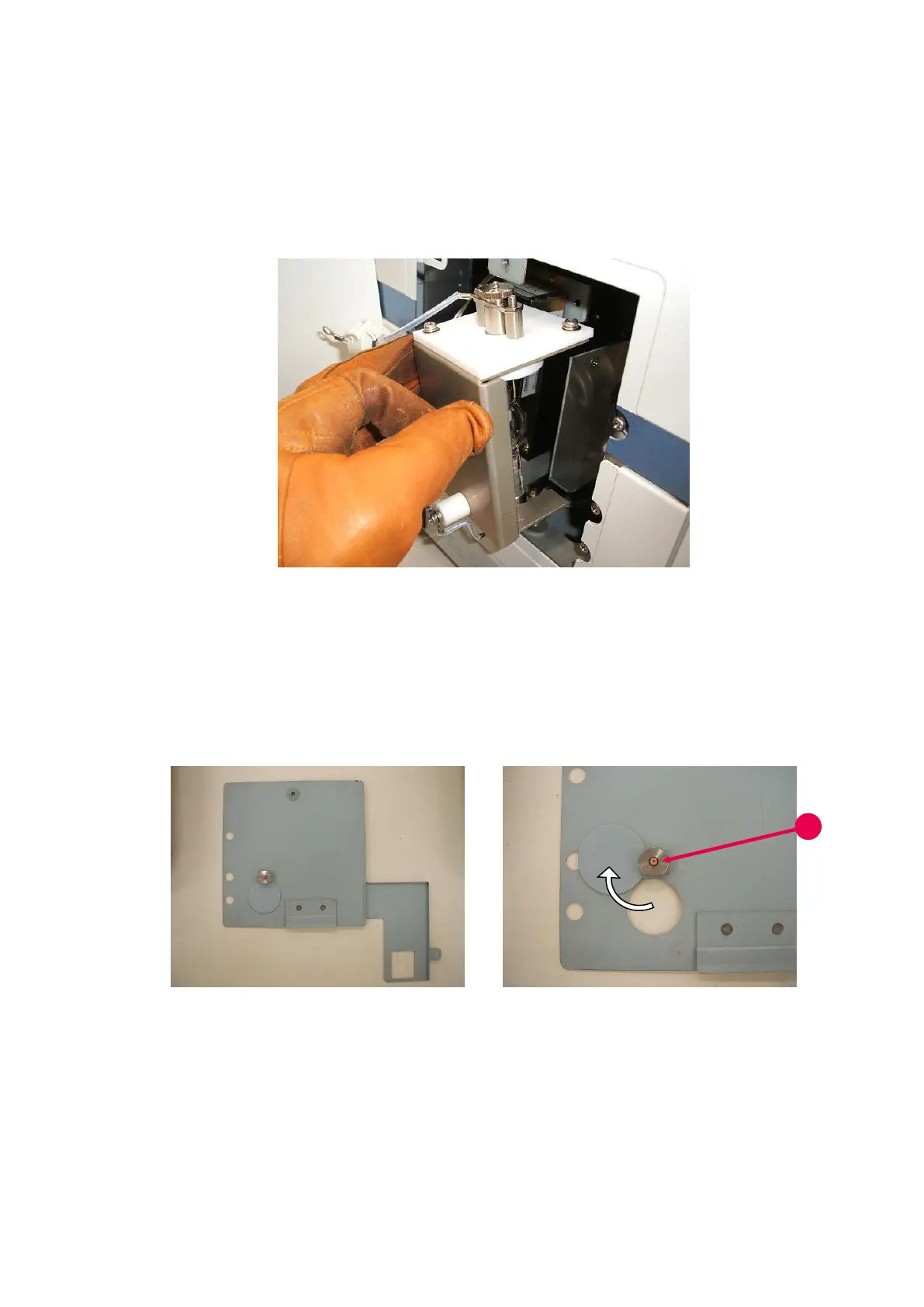

Fig. 3-10 Removal of Lamp Holder (3)
(10) Loosen the round nut (⑥ in Fig. 3-11) on the reverse of the light source compartment cover, then
turn the lid on the hole at least 90 to open the hole for admission of light. When opened, fasten
the round nut to fix the lid of the hole.
Fig. 3-11
(11) Attach the cover of the light source compartment.
