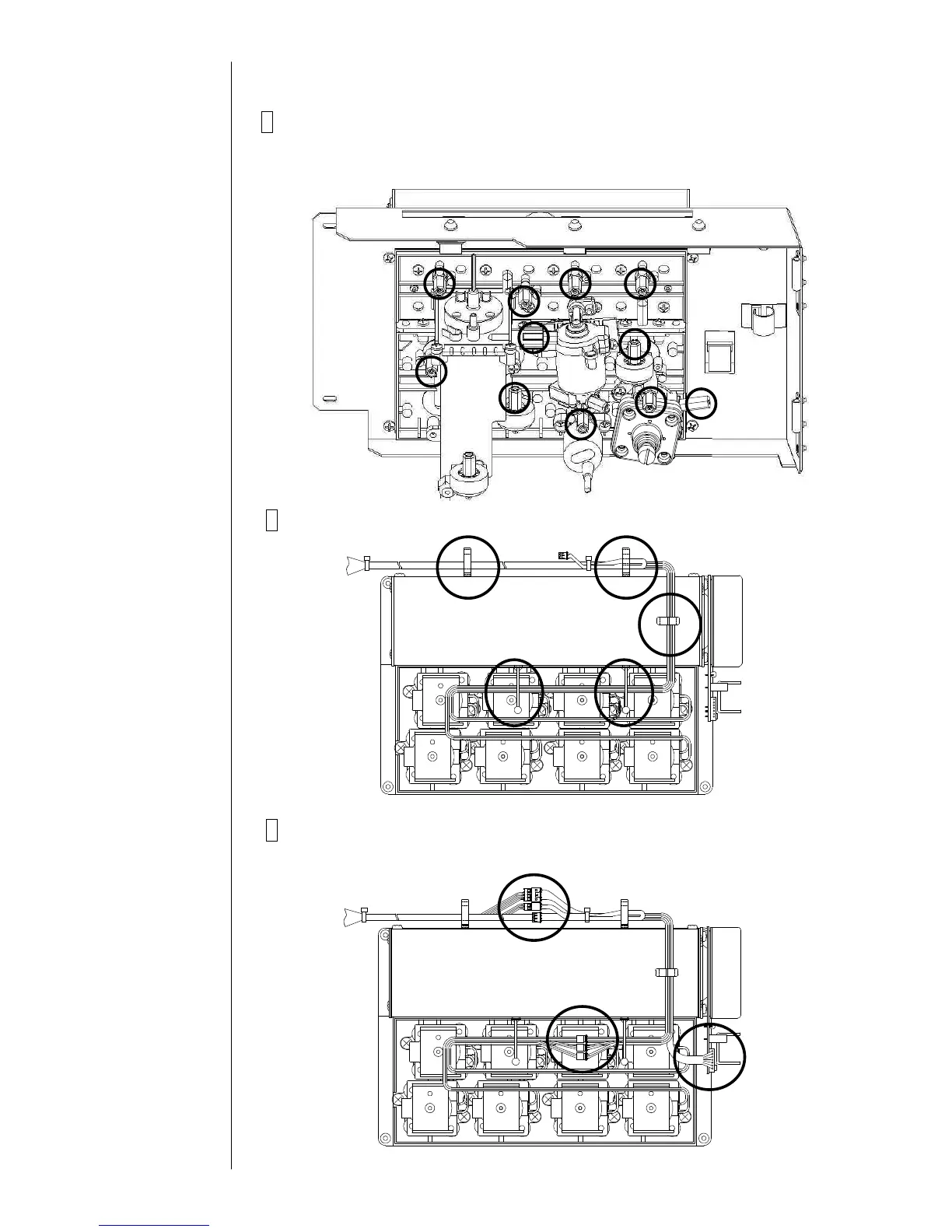

5 Remove the plumbing tubes (11 positions) that are connected to the
circulation unit.
"Caution" Take care about an ink drip.
6 Remove the clamps (5 positions) that fix the wires.
7 Remove the connectors of the electric parts (motor, solenoid valves,
pressure sensor, level sensor and viscometer)
