7-11 ● Ink Replacement
Press the Start/Continue key.
● The screen shown below then opens, and the ink refill in the circulation
path starts.
● After a while, the ink ejects from the nozzle. Check the ink stream position.
16
● To abort the sequence, press the Abort key, and follow the on-screen
instructions. After aborting, you are returned to the "Circulation control"
screen.
● When you have aborted the sequence, select the "Ink refill" from the
"Circulation control" screen and perform it.
* When aborting the operation, be sure to return the ink filter to its original
state.
● If the following message is output during ink refill, the system will
automatically stop.
"Failure was detected in level sensor, pump or solenoid valve.
When ready, press [Start/Continue]."
Press Start/Continue key, select "Ink refill" on "Circulation control" screen
and execute refill. If the same message appears again, contact your nearest
local distributor.
Circulation control Status: Stop
Process : Ink replacement
Com=0
Proc.time: Approx. 4 minutes
Proc. status: In progress
Abort
Press the Start/Continue key.
The following screen then opens.

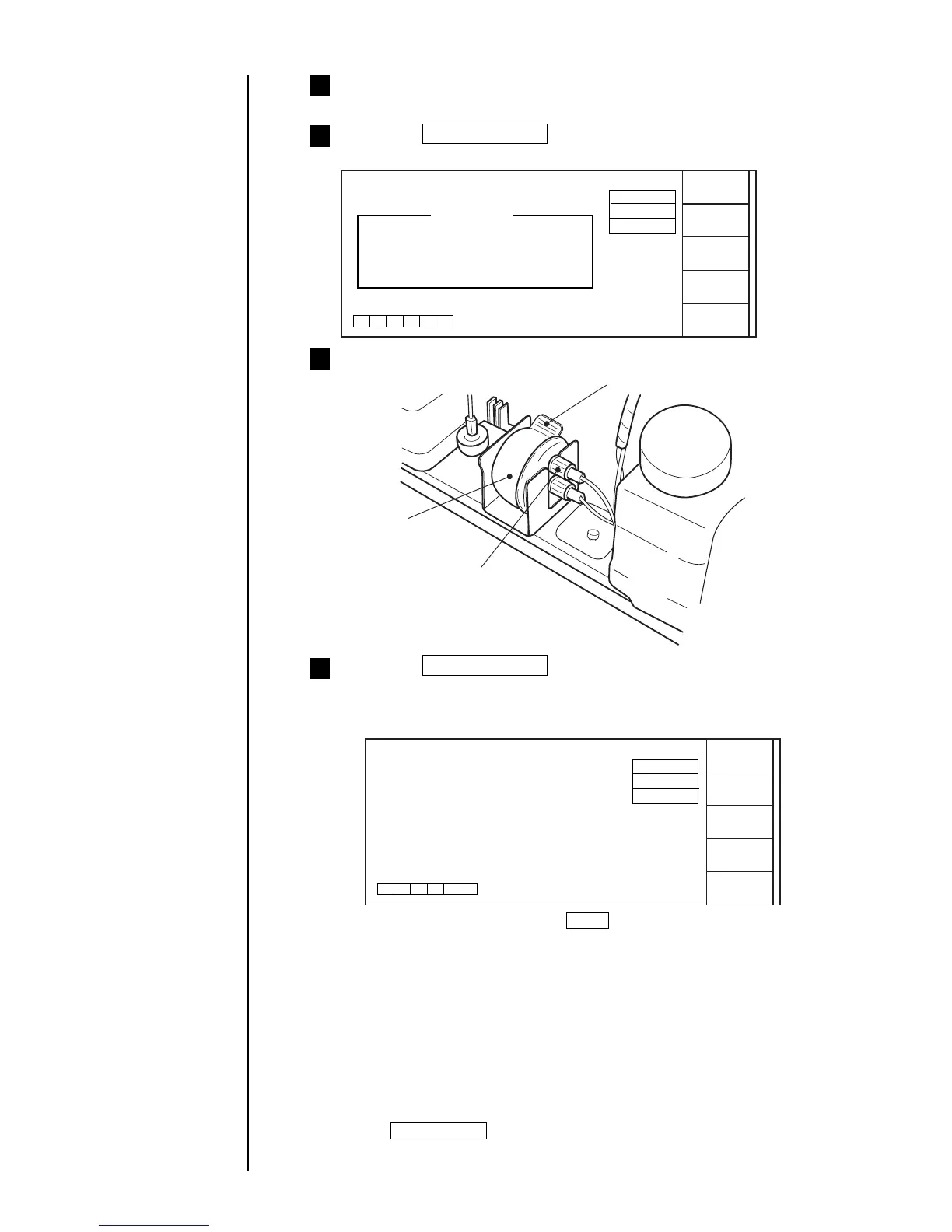

14
Set the ink filter as follows (piping D is the upside).
15
Ink filter
Piping (D)
Circulation control Status: Stop
Start/
Continue
Process : Ink replacement
Com=0
Proc.time: Approx. 4 minutes
Proc. status: In progress
Abort
Change the direction of the ink filter so
that tube (D) is at the top of the filter.
Press [Start/Continue].
Operating guide
Place the end of the print head in a beaker.
● Provide against an ink beam bend.
13
Handle
Ink drainage
Ink rep.
Ink refill
Ink drainage
Ink rep.
Ink refill
