7-23 ● Ink Filter Replacement

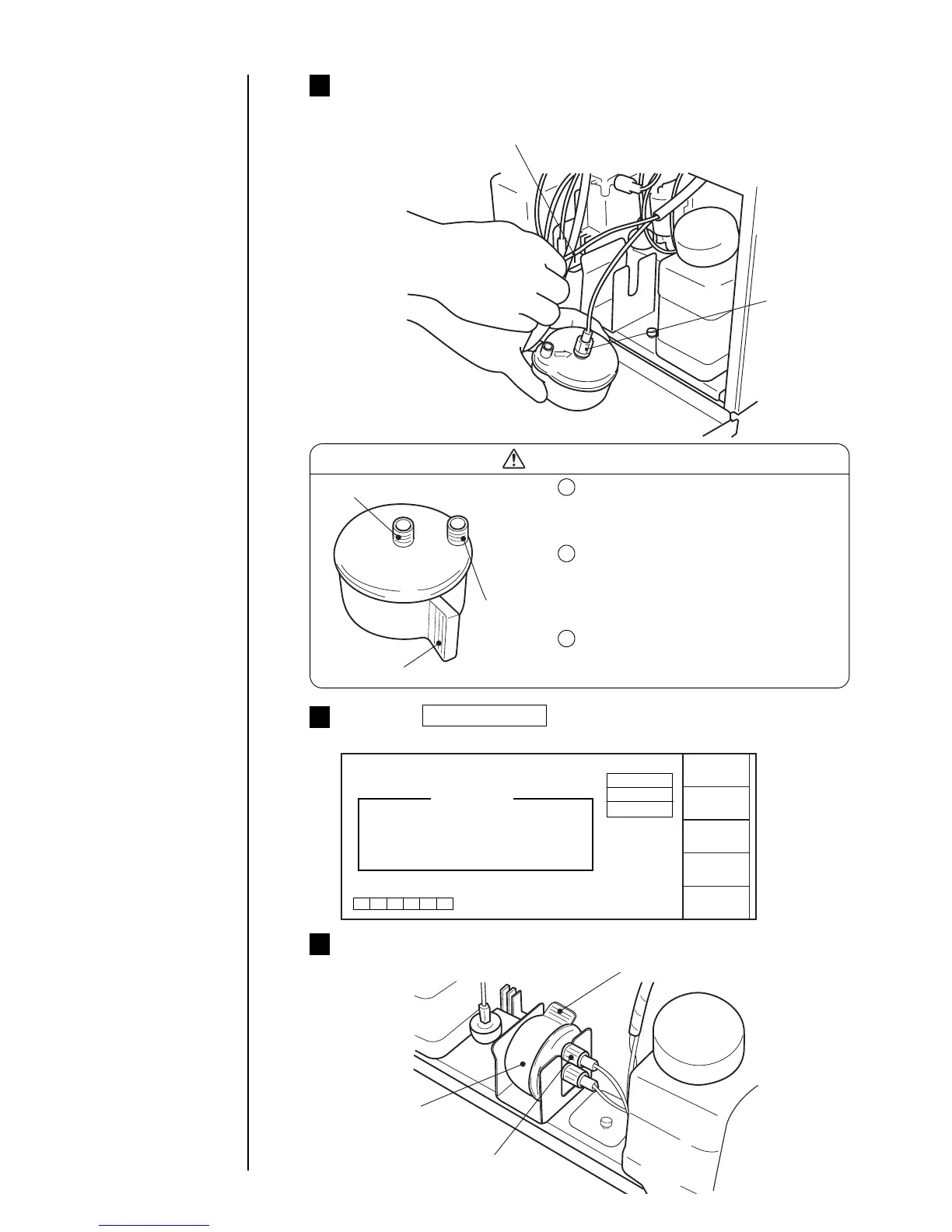

Remove the piping couplings (C and D), and replace it with a
new ink filter.
9
Piping (D)
Piping (C)
Mount and remove the piping
couplings by rotating them by
hand instead of using a tool.
Be careful not to mistake the
piping mounting positions (C is
the center of the ink filter, and D is
the outside).
A small amount of ink remains
within the ink filter. Watch out for
ink spillage when replacing it.
CAUTION
Piping (C)
Handle
Piping (D)
1
2
3
Press the Start/Continue key.
● The following operating guidance appears on the display.
10
Circulation control Status: Stop
Start/
Continue
Process : Ink filter replacement
Com=0
Proc.time: Approx. 4 minutes
Proc. status: In progress
Abort
Change the direction of the ink filter so
that tube (D) is at the top of the filter.
Press [Start/Continue].
Operating guide
Set the ink filter as follows (piping D is the upside).
11
