2-3
SERVICING
(2.1 Outdoor Unit)

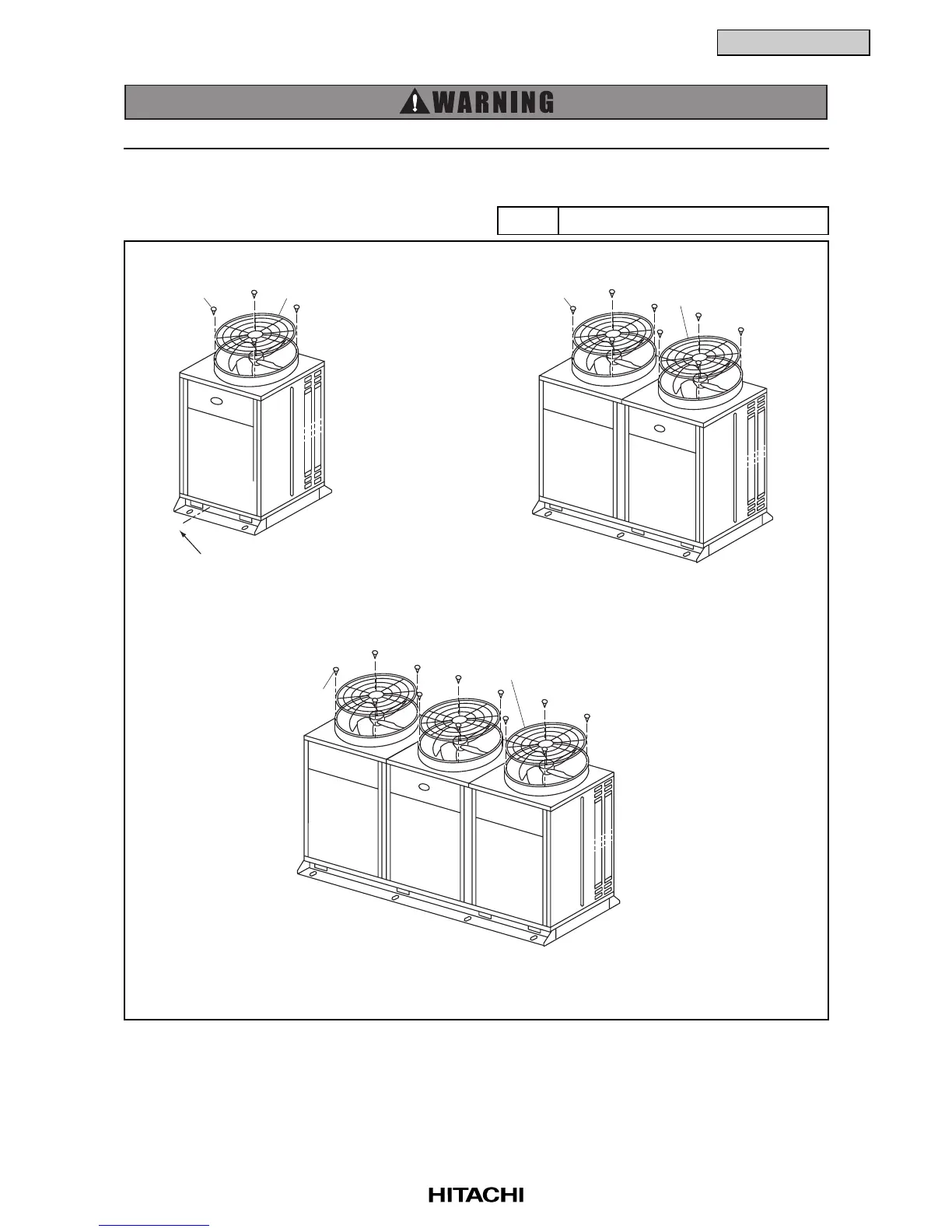

2.1.3 Removing Fan Guard Nets
Remove four (4) screws per each fan guard net
and remove the one.
TURN OFF all power source switches.
Phillips ScrewdriverTool
RAS-5FSG to RAS-10FSG,
RAS-5FS3 to RAS-10FS3,
RAS-8FXG, RAS-10FXG,
RAS-8FX3, RAS-10FX3
RAS-16FSG, RAS-20FSG,
RAS-16FS3, RAS-20FS3
RAS-24FSG1, RAS-30FSG1,
RAS-24FS5, RAS-30FS5
Remove this first.
Screw Fan Guard Net
Screw Fan Guard Net
Screw
Fan Guard Net
