MAIN PARTS

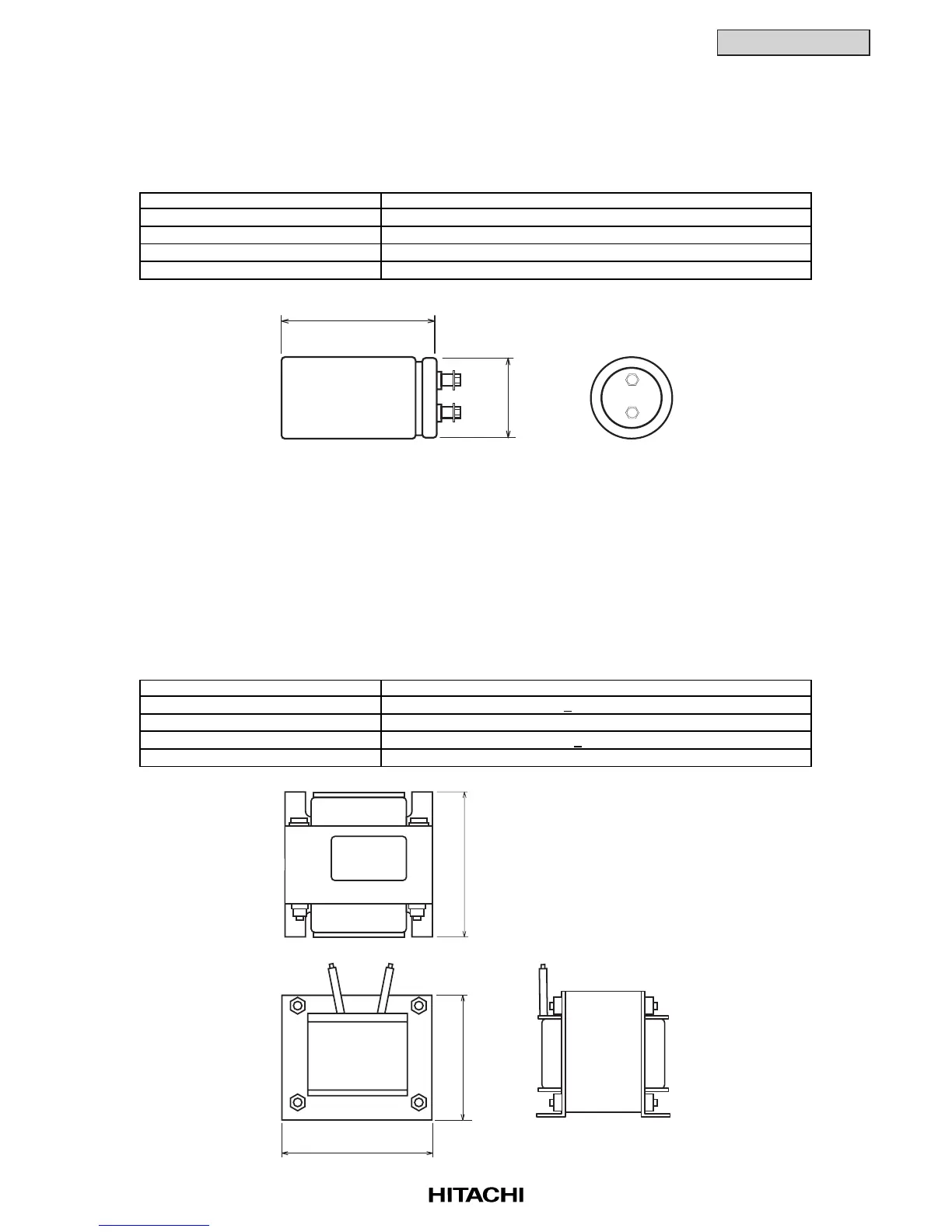

3.10 Capacitor (CB1, CB2)
This part is used for changing the alternative current to the direct current for the inverter. Connect two
capacitor in line and used.
3.11 Reactor (DCL)
This part is used for changing the alternative current to the direct current for the inverter.
Specifications
Items Specifications
Models 400LGSN2700M
Capacity of Static Electricity
2700µF
Rated Voltage 400V
Permissible Temperature Range -25
o
C to 95
o
C
7570
76.2
140
φ84
+
−
Items Specifications
Character 1mH
+10% (at 1kHz)
Rated Current 33A
Direct Resistance 25.1mΩ
+20% (at 20
o
C)
Permissible Temperature Range -20
o
C to 60
o
C
for RAS-5FSG to RAS-20FSG (380/415V)
