2-4
SERVICING
(2.1 Outdoor Unit)

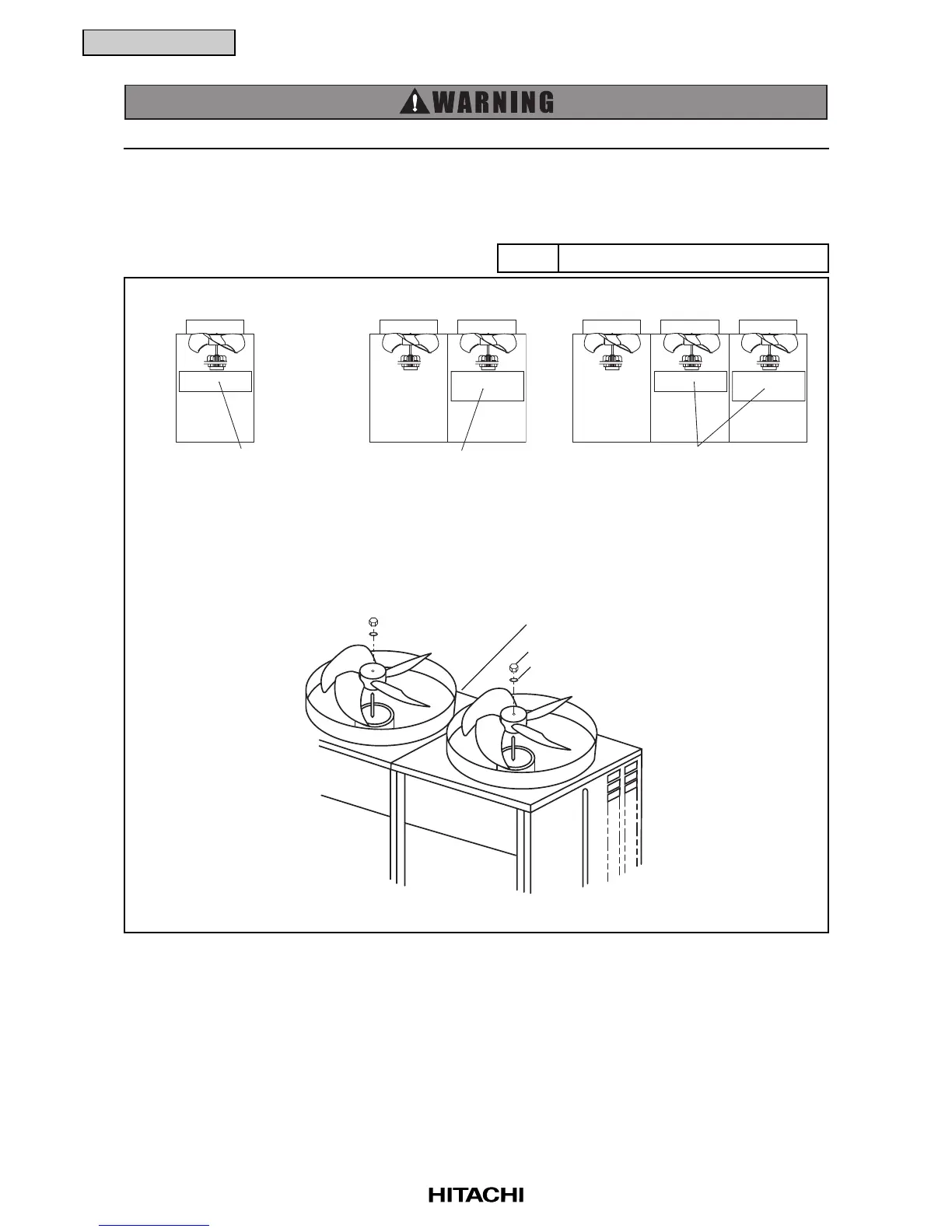

2.1.4 Removing Outdoor Fan
(1) Remove the fan guard nets according to the item 2.1.3 “Removing Fan Guard Nets”.
(2) Remove the fans by removing the cap nuts and flat washers fixing the propeller fans onto the
motor shafts. If it is difficult to remove the fan,
use a puller.
Spanner, Adjustable Wrench or PullerTool
TURN OFF all power source switches.
Electrical Box Electrical Box Electrical Box
Propeller Fan
Nut
Flat Washer
Motor Shaft
RAS-5FSG to RAS-10FSG,
RAS-5FS3 to RAS-10FS3,
RAS-8FXG, RAS-10FXG,
RAS-8FX3, RAS-10FX3
RAS-16FSG, RAS-20FSG,
RAS-16FS3, RAS-20FS3
RAS-24FSG1, RAS-30FSG1,
RAS-24FS5, RAS-30FS5
To Next Page
