Hitachi RPI-1.0FSG1 - Removing Drain Pan

2-49
SERVICING
(2.2 In-the-Ceiling Type)
2.2.8 Removing Drain Pan

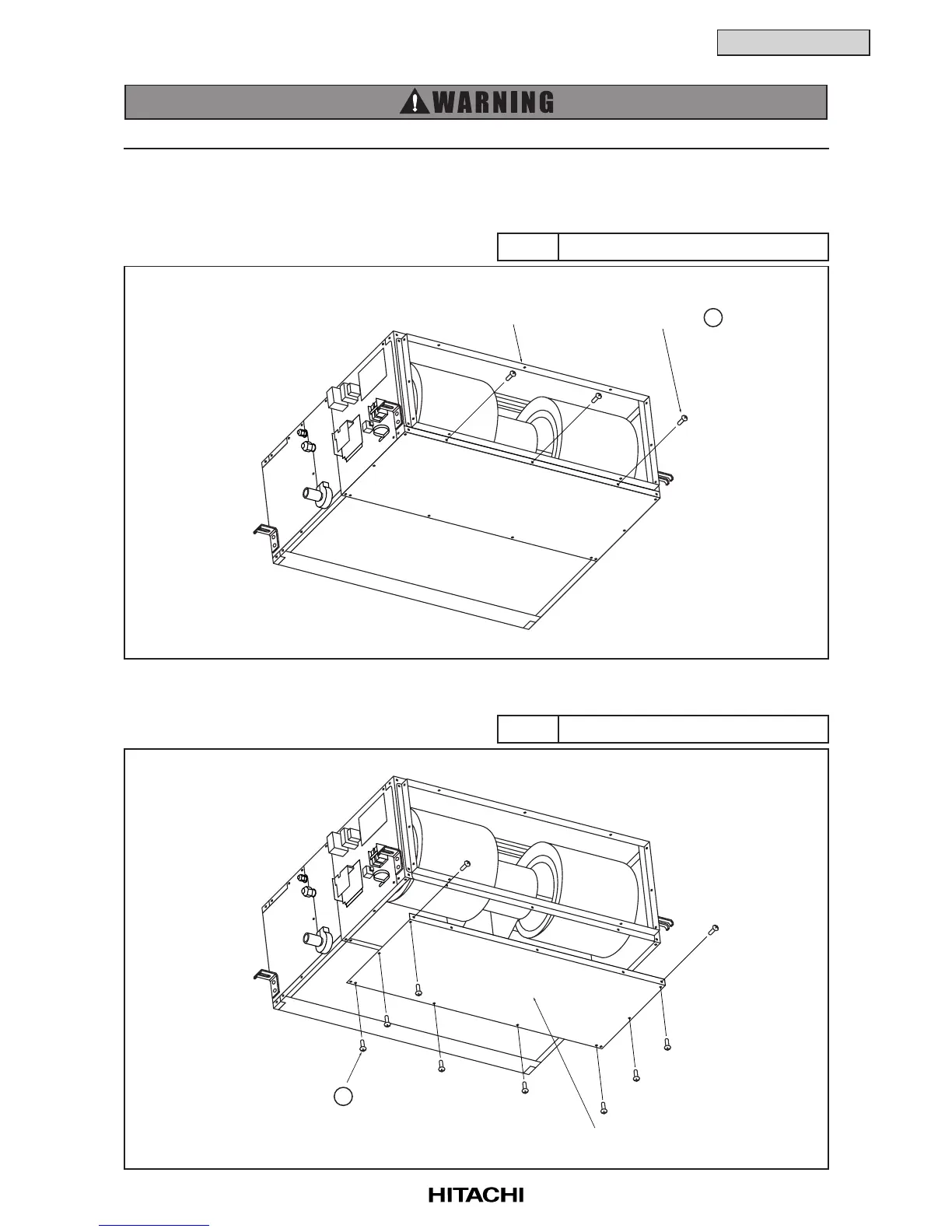

(1) Remove the lower M4 screws (Q’ty: A) fixing the suction flange.
* Q’ty of Screws (A): 2 (For RPI-0.8 to 1.5FSG1)
3 (For RPI-2.0 to 4.0FSG1)
4 (For RPI-5.0FSG1)
Phillips ScrewdriverTool
(2) Remove the lower M4 screws (Q’ty: B) fixing the lower cover at the indoor fan side and remove the
lower cover.
* Q’ty of Screws (B): 11 (For RPI-0.8 to 1.5FSG1)
12 (For RPI-2.0 to 5.0FSG1) Phillips ScrewdriverTool
TURN OFF all power source switches.
Screws (M4x )
A
Suction Flange
Screws (M4x )
B
Lower Cover
