2-26
SERVICING
(2.1 Outdoor Unit)
(1) Remove the front service panel according to the item 2.1.2 “Removing Front Service Panel”.
(2) Remove the coil for the reversing valve as shown below.
2.1.10 Removing Coil for Reversing Valve Coil
TURN OFF all power source switches.
Do not touch the electrical parts when the LED3 (Red) on the SNUBBER PCB (PCB5) or
the LED2 (Red) on the Inverter PCB (PCB3) is lit, since the voltage is higher than 50V.
Adjustable Wrench, Spanner,
Phillips Screwdriver
Tool

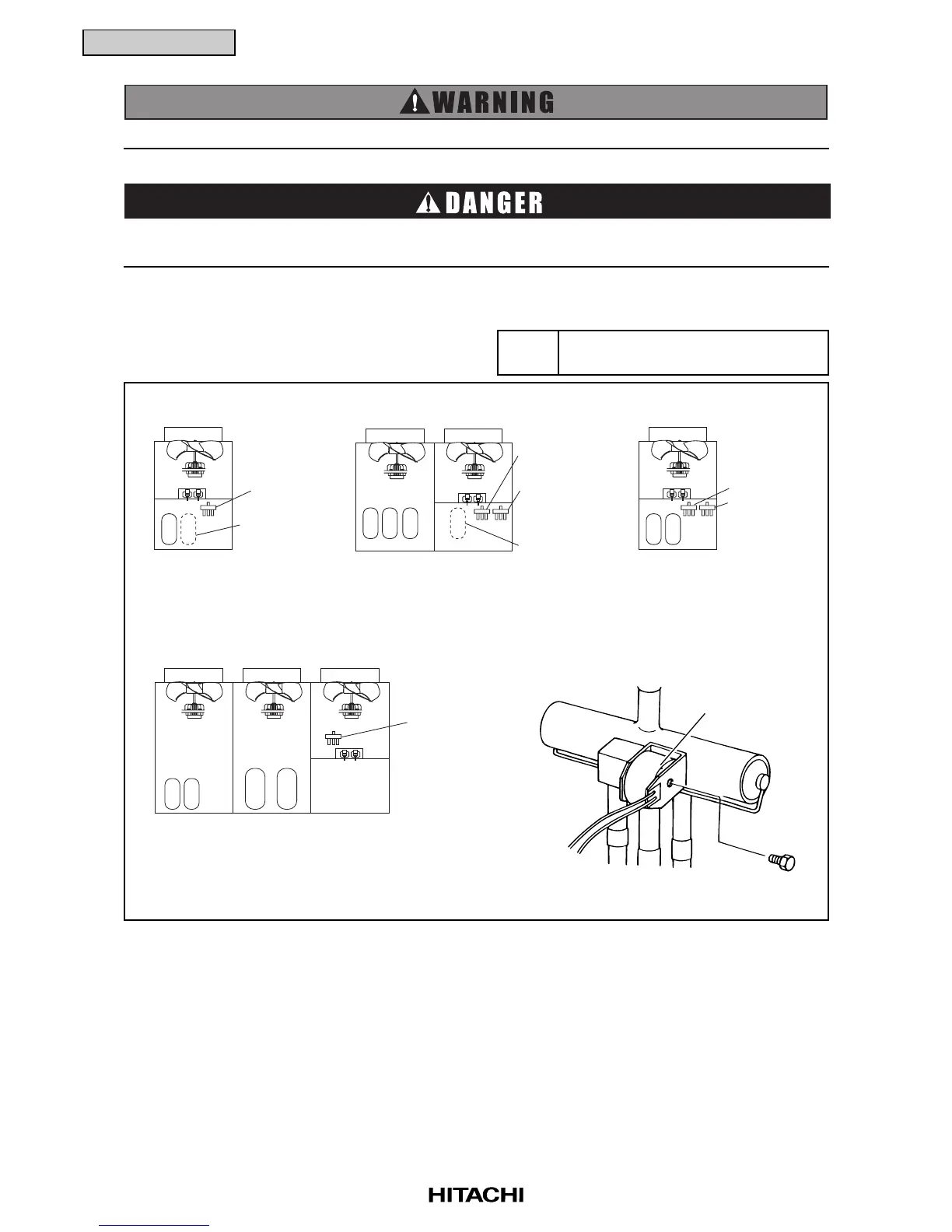

The arrow mark ( ) indicates the
position of the reversing valve coil.
The figure is the front view one.
Reversing Valve Coil
RAS-24FSG1, 24FS5
30FSG1, 30FS5
RVR2
RAS-5FSG, 5FS3
8FSG, 8FS3
10FSG, 10FS3
RAS-8FXG, 8FX3
10FXG, 10FX3
RAS-16FSG, 16FS3
20FSG, 20FS3
8 and 10HP
Only
20HP Only
RVR2 or 212
RVR1
RVR2
RVR1 or 21
1
RVR2 or 212
To Next Page
