SERVICING
(2.7 Floor Type)
TURN OFF all power source switches.
2.7.7 Removing Thermistors for Liquid Pipe and Gas Pipe
(1) Remove the air intake grille according to the item 2.7.1 “Removing Air Intake Grille”.
(2) Remove the air filter according to the item 2.7.2 “Removing Air Filter”.
(3) Remove the front cover according to the item 2.7.4 “Removing Front Cover”.

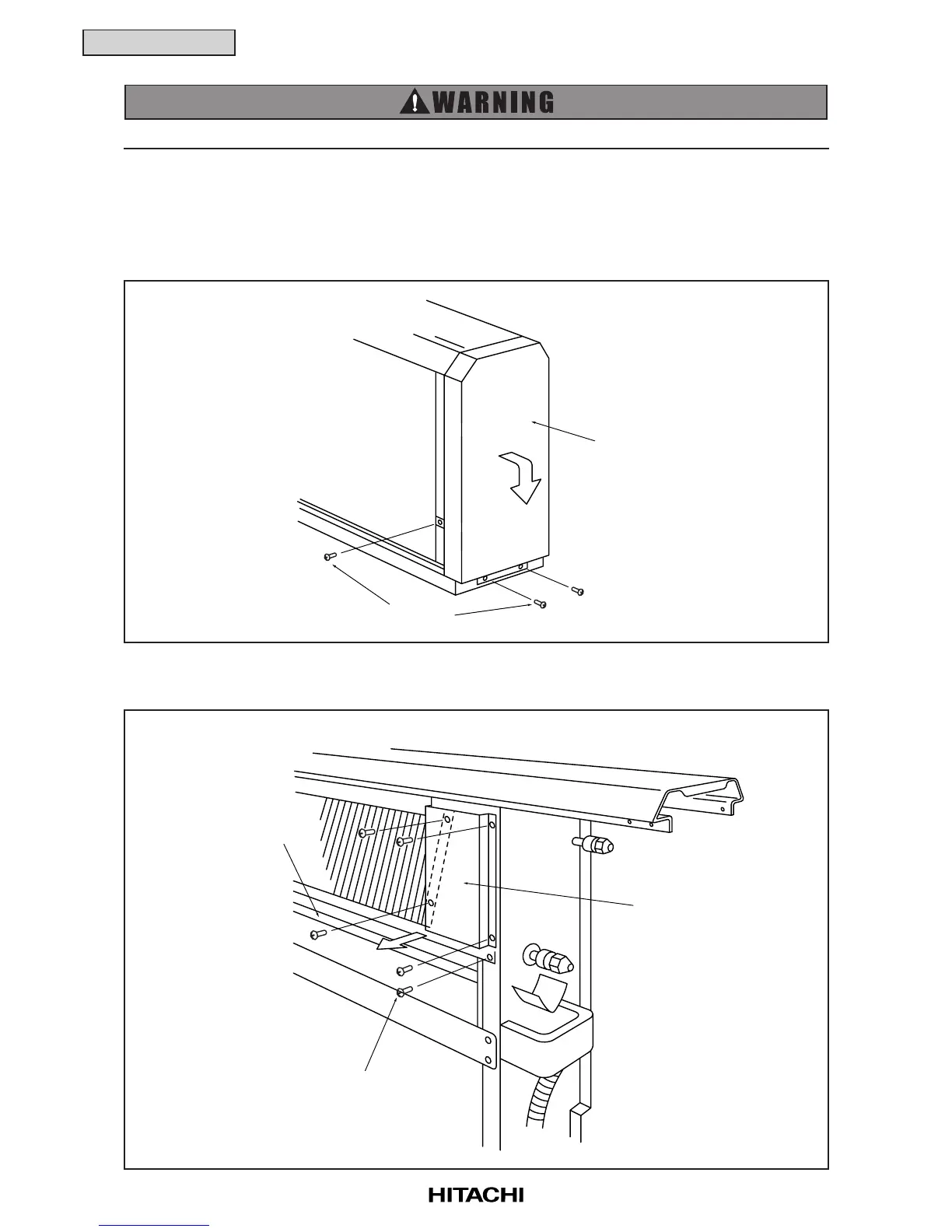

(4) Remove the side cover after removing three (3) fixing screws.
(5) Remove the piping cover after removing two (2) fixing screws for the partition plate and four (4) fixing
screws for piping cover.
Partition Plate
Piping Cover
Screw
Side Panel
Screws
To Next Page
