Chapter 1 — About the RFID Reader
IF1 Fixed RFID Reader Series User Manual 3
About the RFID Reader Ports
Depending on your configuration, the ports that are available on the IF1
may be different.

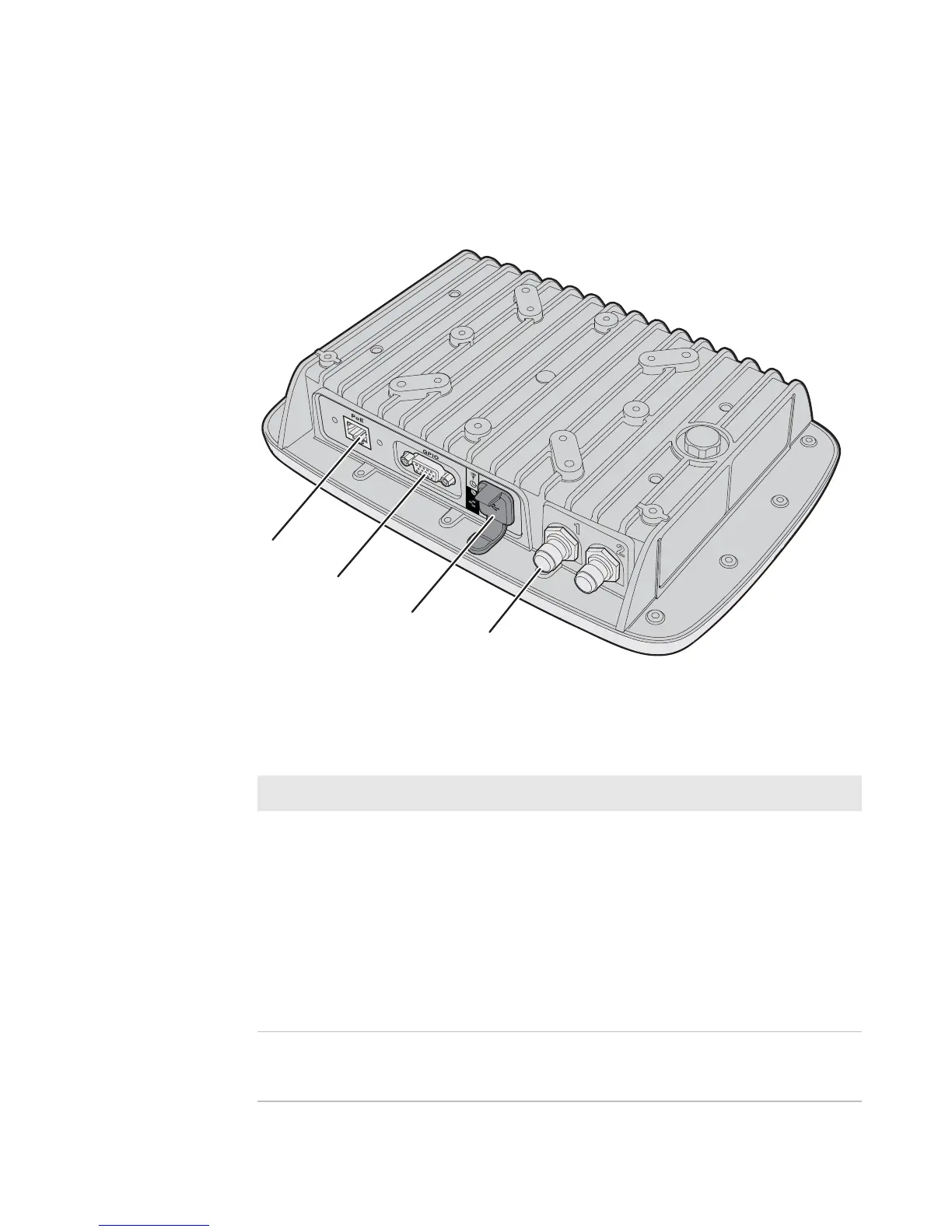

IF1 Fixed RFID Reader Ports
Reader Port Descriptions
Callout Port Description
1 Ethernet 10Base/100Base-T port that connects the
reader to your Ethernet network. The
reader auto-negotiates with the server to
set the best data rate. This port uses MDI/
MDI-X auto-switching so you can connect
either a standard Ethernet cable or a
crossover cable.
The port also supports Power Over
Ethernet (POE). To power the reader, you
need an 802.3af-compliant power supply.
2GPIO
(Optional)
General purpose input/output (GPIO) port
that connects the reader to industrial
controls such as relays or indicators.
