Chapter 5 — About the GPIO Ports

64 IF1 Fixed RFID Reader User Manual

Drive a DC Relay to Control an AC Load

While the reader outputs are designed to switch DC loads, they can also

drive relays that control AC loads.

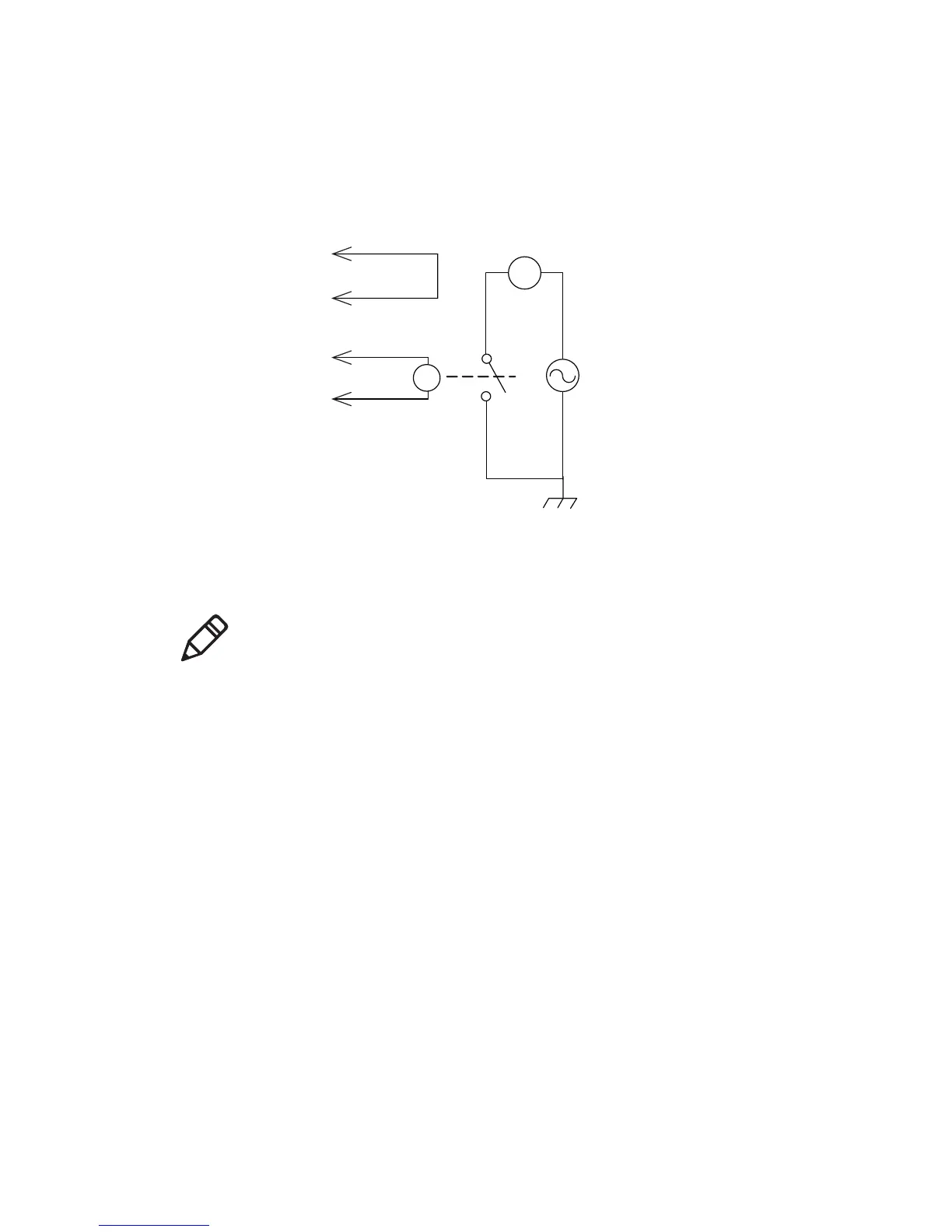

Driving a DC Relay: The external relay provides dry contacts to the AC

motor.

AC motor

120-230

VAC

External

relay

+ Output

+ 12 V

Ground

- Output

Note: In many installations, the relay and AC wiring must be placed in an

enclosure that meets local fire code regulations.
