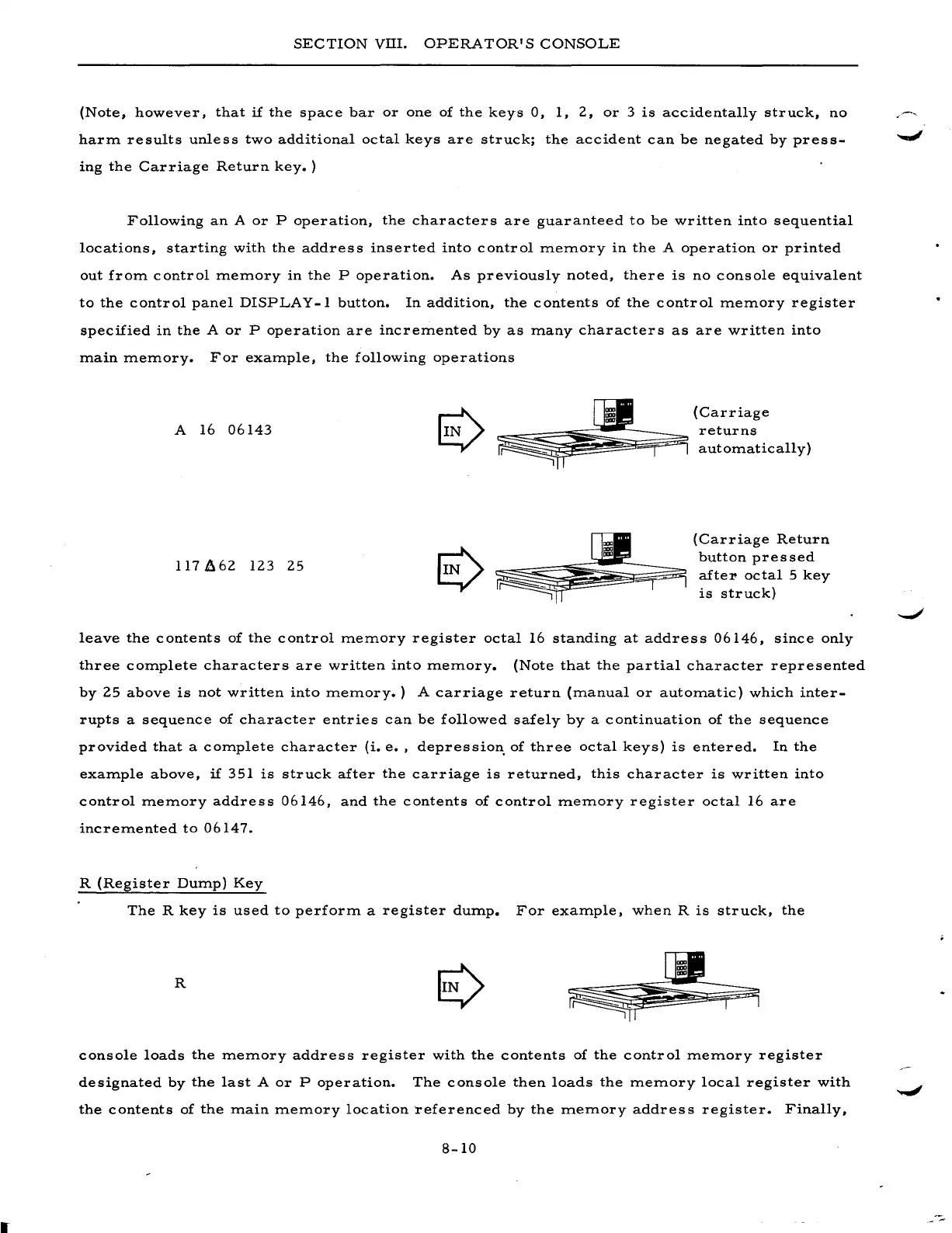

SECTION
VIII.
OPERATOR'S
CONSOLE
(Note,
however,
that
if
the
space
bar
or
one
of
the
keys
0,
1,
2,
or
3
is
accidentally
struck,
no
harm
results
unless
two
additional
octal
keys
are
struck;
the
accident
can
be
negated
by
press-
...,
ing
the
Carriage
Return
key.
)
Following
an
A
or
P
operation,
the
characters
are
guaranteed
to
be
written
into
sequential
locations,
starting
with
the
address
inserted
into
control
memory
in
the
A
operation
or
printed
out
from
control
memory
in
the
P
operation.
As
previously
noted,
there
is
no
console
equivalent
to
the
control
panel
DISPLAY
-1
button.
In
addition,
the
contents
of
the
control
memory
register
specified
in
the
A
or
P
operation
are
incremented
by
as
many
characters
as
are
written
into
main
memory.
For
example,
the
following
operations
A
16
06143
~
~
;
(Carriage
IN
~~
returns
~_
~
automatically)
117
A
62
123
25
~
ooc
(Carriage
Return
:
button
pressed
~
after
octal
5
key
~-
I I
is
struck)
leave
the
contents
of
the
control
memory
register
octal
16
standing
at
address
06146,
since
only
three
complete
characters
are
written
into
memory.
(Note
that
the
partial
character
represented
by
25
above
is
not
written
into
memory.)
A
carriage
return
(manual
or
automatic)
which
inter-
rupts
a
sequence
of
character
entries
can
be
followed
safely
by
a
continuation
of
the
sequence
provided
that
a
complete
character
(i.
e.
,
depression.
of
three
octal
keys)
is
entered.
In
the
example
above,
if
351
is
struck
after
the
carriage
is
returned,
this
character
is
written
into
control
memory
address
06146,
and
the
contents
of
control
memory
register
octal
16
are
incremented
to
06147.
R
(Register
Dump)
Key
The
R
key
is
used
to
perform
a
register
dump.
For
example,
when
R
is
struck,
the
R
console
loads
the
memory
address
register
with
the
contents
of
the
control
memory
register
designated
by
the
last
A
or
P
operation.
The
console
then
loads
the
memory
local
register
with
the
contents
of
the
main
memory
location
referenced
by
the
memory
address
register.
Finally,
8-10
