Voyager XP User Guide 5
Note: The power supply must be ordered separately, if needed.
1. If you are connecting a CCB01-010BT-V1N Base, make sure the cables are
secured in the wireways in the bottom of the cordless base and the base sits flat
on a horizontal surface.
2. Plug the serial connector into the serial port on your computer. Tighten the two
screws to secure the connector to the port.
3. Once the scanner or cordless base has been fully connected, power up the
computer.
This interface programs 115,200 baud, 8 data bits, no parity, and 1 stop bit.

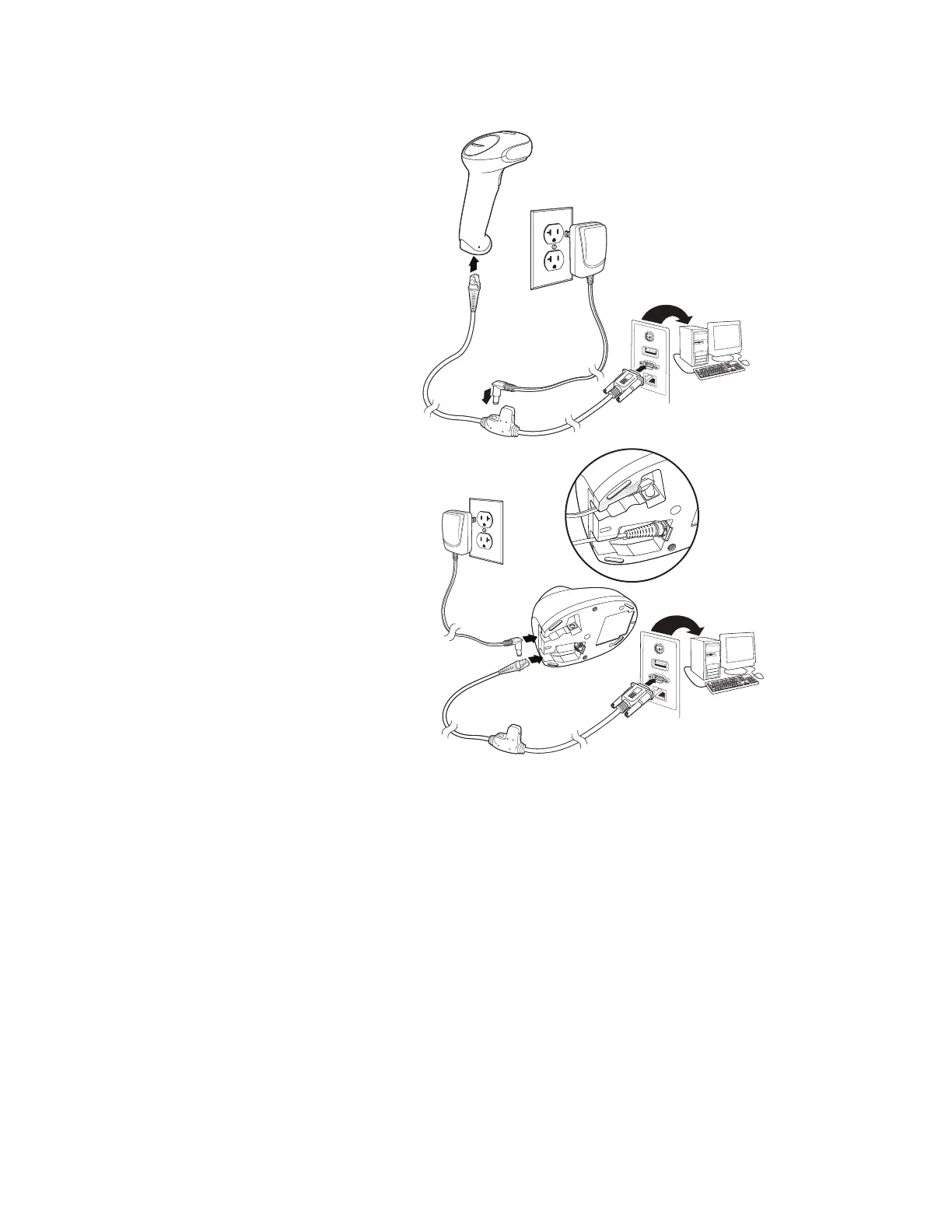

Corded Voyager XP 1470g
RS232 Serial Port Connection:
CCB01-010BT-V1N Base
RS232 Serial Port Connection:
