Voyager XP User Guide 39
Replace a Linked Scanner
If you need to replace a broken or lost scanner that is linked to a base or an Access
Point, scan the Override Locked Scanner barcode below with a new scanner and
place that scanner in the base, or scan the Access Point linking barcode. The
locked link will be overridden; the broken or lost scanner’s link with the base or
Access Point will be removed, and the new scanner will be linked.
Communication Between the Cordless System
and the Host
The cordless scanner provides immediate feedback in the form of a “good read”
indication with a green LED on the scanner and an audible beep. This indicates
that the barcode has been scanned correctly and the base or Access Point has
acknowledged receiving the data. This is possible since the cordless system pro-
vides two-way communication between the scanner and the base or Access Point.
When data is scanned, the data is sent to the host system via the base or Access
Point. The cordless scanner recognizes data acknowledgment (ACK) from the base
or Access Point. If it cannot be determined that the data has been properly sent to
the base or Access Point, the scanner issues an error indication. You must then
check to see if the scanned data was received by the host system.

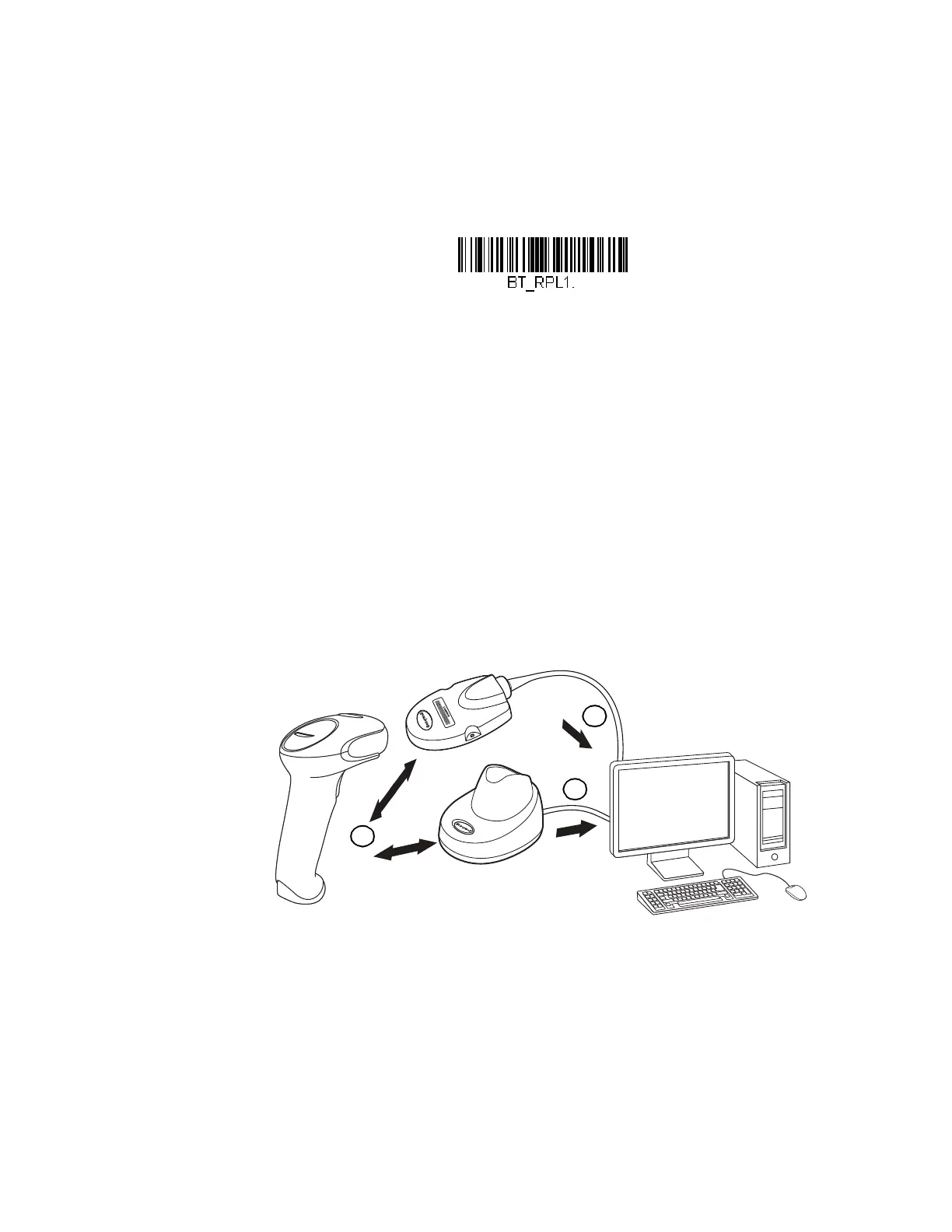

1. Scanner reads code and gets ACK from base or Access Point
2. Base or Access Point sends data to host
Override Locked Scanner
(Single Scanner)
2
1
2
