4 Voyager XP User Guide
Note: The power supply must be ordered separately, if needed.
3. If you are connecting a CCB01-010BT-V1N Base, make sure the cables are
secured in the wireways in the bottom of the cordless base and the base sits flat
on a horizontal surface.
4. Turn the terminal/computer power back on. The scanner beeps.
5. Verify the scanner or cordless base operation by scanning a barcode from the
Sample Symbols in the back of this manual. The scanner beeps once.
The unit defaults to an IBM PC AT and compatibles keyboard wedge interface with
a USA keyboard. A carriage return (CR) suffix is added to barcode data.
Connect with RS232 Serial Port
1. Turn off power to the terminal/computer.
2. Connect the appropriate interface cable to the device.
Note: For the scanner or cordless base to work properly, you must have the correct cable for
your type of terminal/computer.

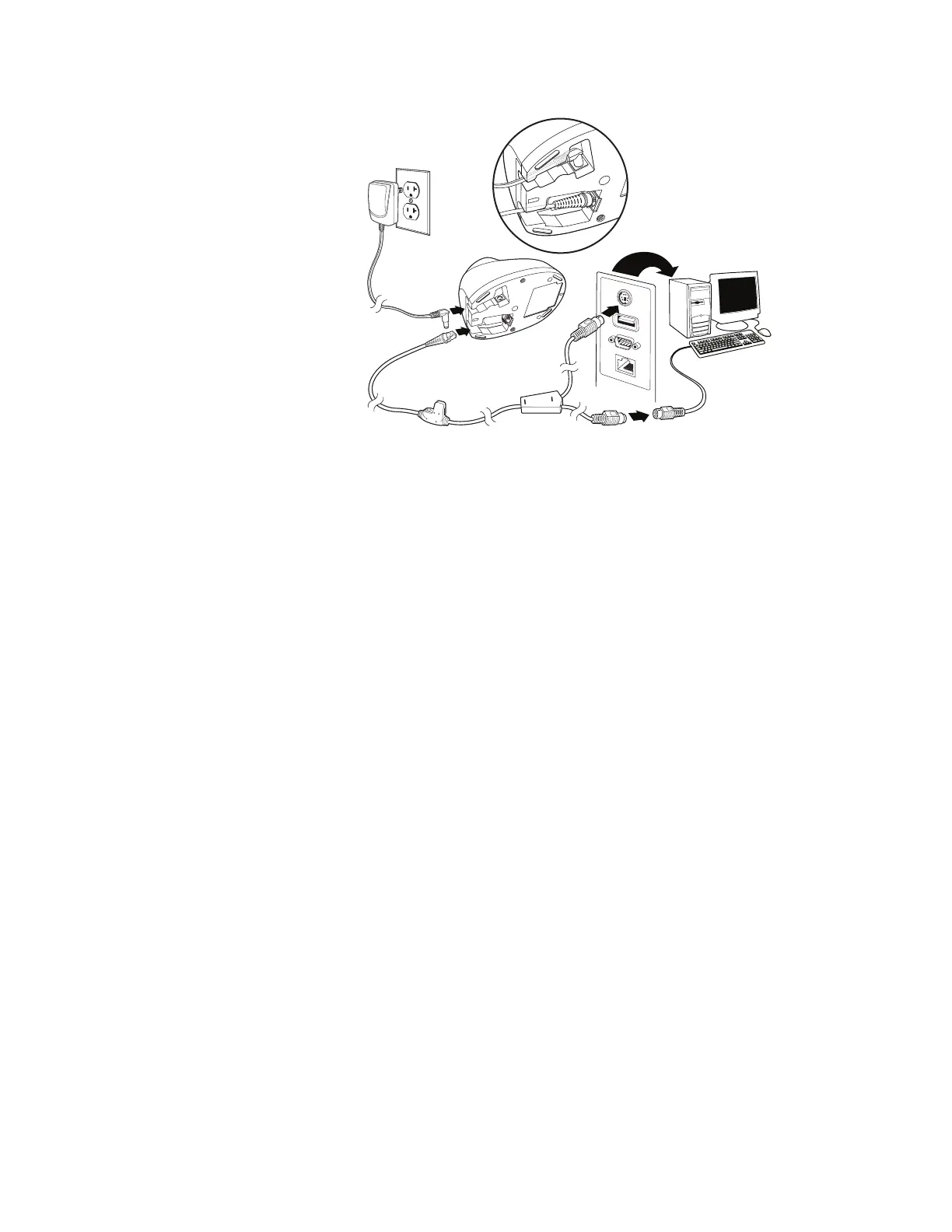

CCB01-010BT-V1N Base
Keyboard Wedge Connection:
CCB01-010BT-V1N Base
Keyboard Wedge Connection:
