Voyager XP User Guide 203

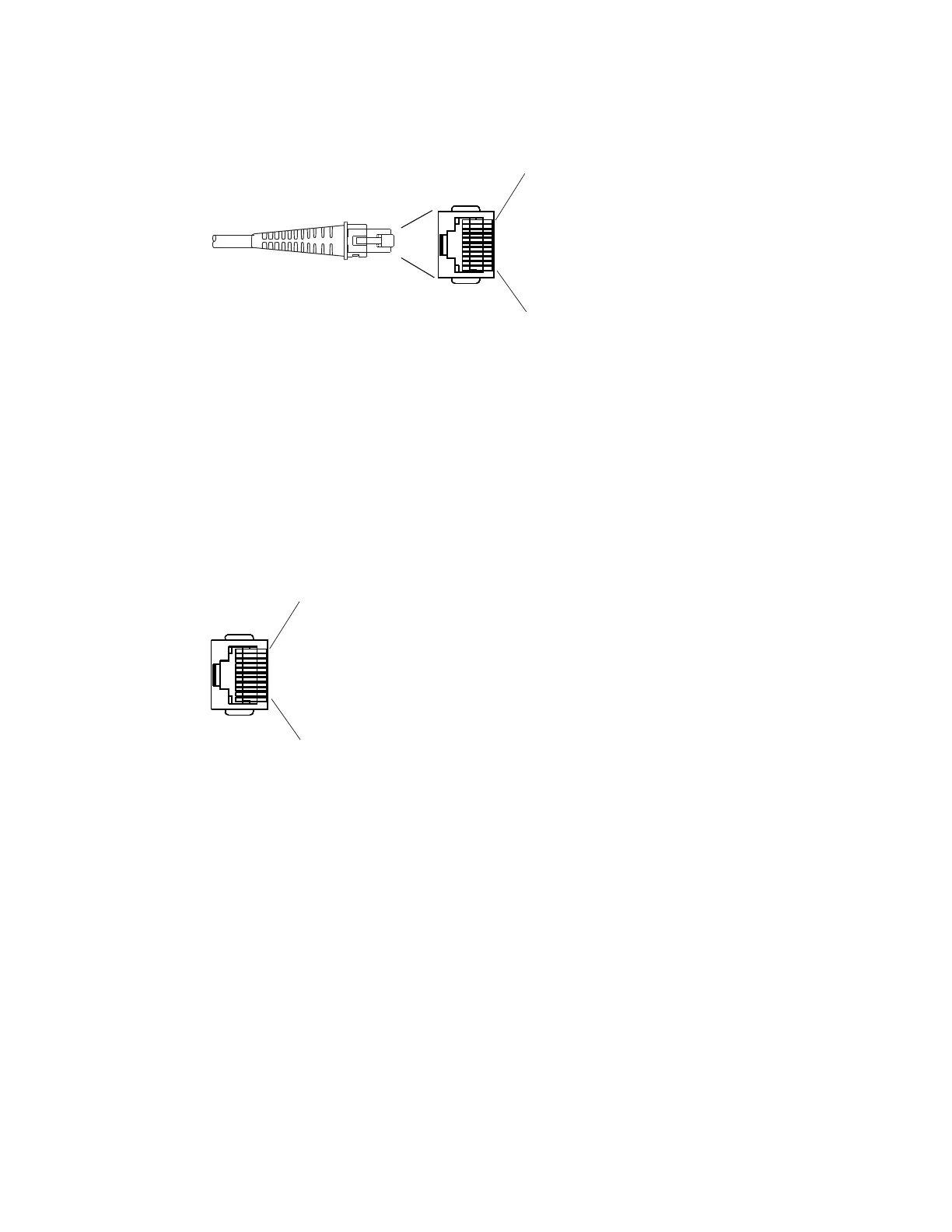

USB
10 Pin Modular Plug
RS485 Output
10 Pin RJ41 Modular Plug
Note: RS485 signal conversion is performed in the cable.
1Cable shield
2Cable select
3Supply ground
4
5
6
7+5V power
8
9Data +
10Data -
1Cable shield
2Cable select
3Supply ground
4Transmit data
5Receive data - serial data to scanner
6
7+5V power
8Transmit Enable
9
10
